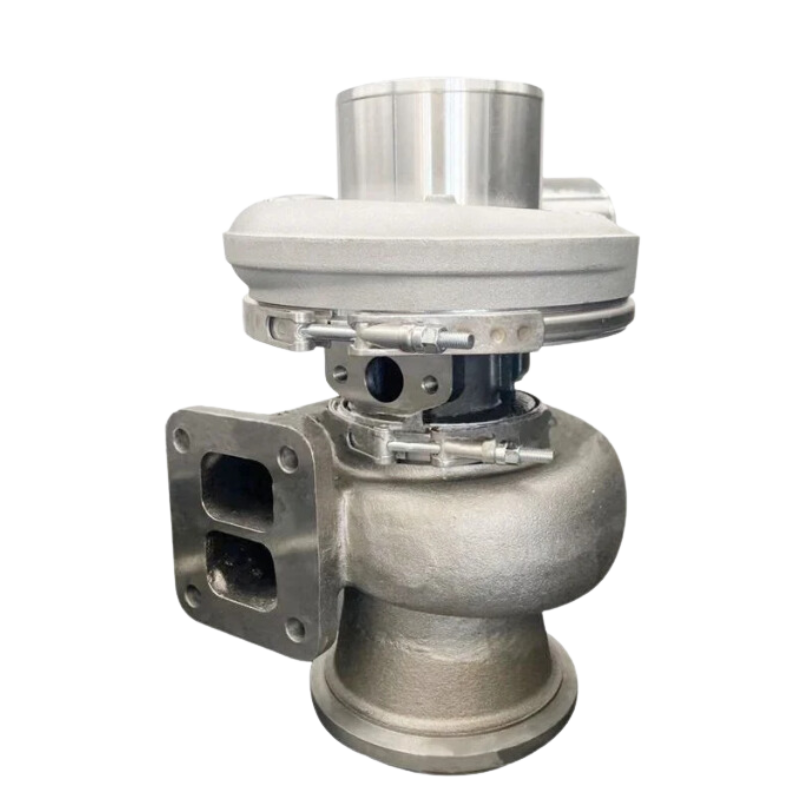

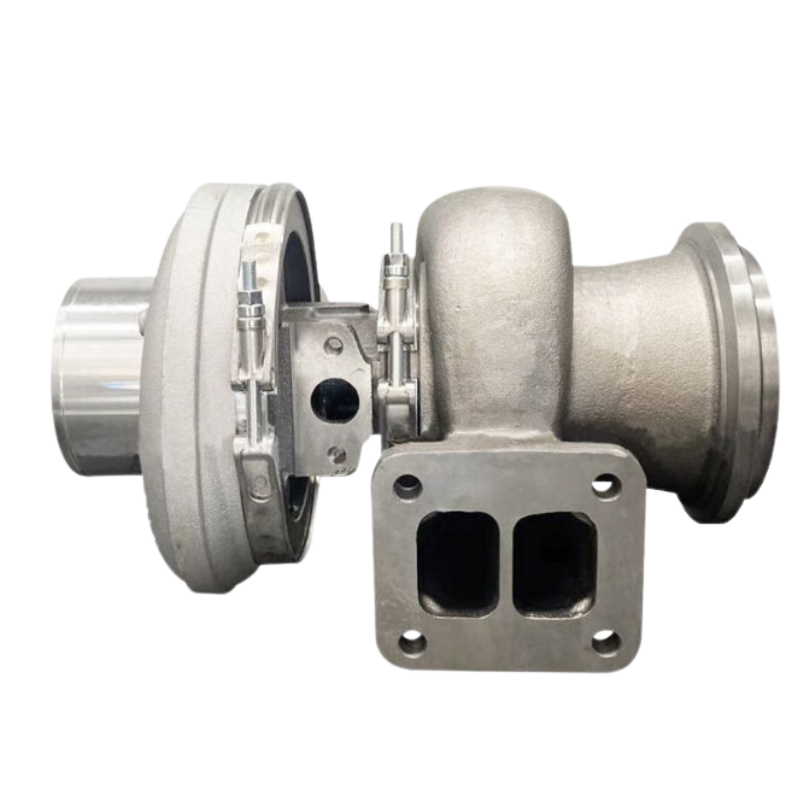

191-5094 10R0368 Excavator Turbocharger C9 330C 330CL Diesel Engine Components

As an exhaustpowered air compressor fitted to excavator engines, the turbocharger utilizes exhaust gas energy to compress incoming air. This allows diesel fuel to burn more completely and efficiently, substantially raising power output, decreasing fuel waste and reducing black smoke discharge levels.

Core Functions

Power Uplift FunctionTurbocharging boosts power by 30%–50% and torque notably on engines with identical displacement, offering superior performance under heavyload operation and climbing conditions.

FuelSaving & Emission Control FunctionPlenty of intake air ensures full combustion, cutting fuel consumption by approximately 5% and minimizing black smoke, carbon monoxide and HC pollutant emissions.

LowSpeed Torque Gain FunctionGreater lowrpm torque provides higher working force for excavator heavyload startup and digging operations.

Basic Structure (Three Key Structural Assemblies)

Turbine End (Exhaust Side Assembly)Joined to the exhaust manifold, it receives 600–900 ℃ hot exhaust gas that propels the turbine wheel, rotating the central shaft at 100,000–200,000 rpm.

Compressor End (Intake Side Assembly)Coaxially powered, the compressor impeller compresses air cleaned by the air filter and sends pressurized air into engine cylinders.

Central Bearing Unit (CoolingLubrication Housing Assembly)Incorporating floating bearings and engineoil heatexchangelubrication channels, it tolerates high temperatures and ultrahigh rotation rates. Engine oil removes heat to prevent bearing sintering damage issues.

Working Principle (4Step Functional Mechanism)

Exhaust GasDriven Rotation StepHot highpressure engine exhaust enters the turbine housing and rapidly spins the turbine impeller.

ShaftDriven Coaxial Rotation StepThe turbine shaft turns the compressor wheel synchronously at ultrahigh speed.

Fresh Air Compression StepThe compressor inhales purified filtered air and compresses it to 0.1–0.2 MPa while raising air temperature.

Intercooling Treatment StepWarm compressed air is cooled by the intercooler to increase density, then enters cylinders for extra fuel injection and greater power production.
