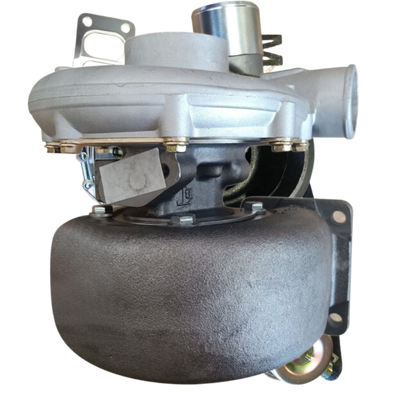

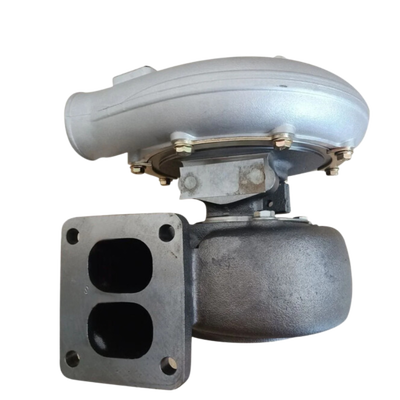

178-0389 Excavator Turbocharger S3BSL160 CAT330B Excavator Engine Parts

The turbocharger for excavators is an exhaustdriven air compression device installed on the engine assembly. Its core working mechanism leverages exhaust gas energy to compress incoming intake air, enabling more complete diesel combustion, which substantially enhances power output, reduces fuel burn rates and minimizes black smoke emission volumes.

Core Functions

Power Improvement EffectFor engines with identical swept volume, turbocharging delivers a 30%–50% power gain and prominent torque growth, providing robust performance under heavyload and climbing working scenarios.

Fuel Conservation & Emission Mitigation EffectPlenty of intake air ensures full fuel combustion, cutting fuel consumption by approximately 5% and lowering black smoke, CO and hydrocarbon pollutant emission levels.

LowRPM Torque Strengthening EffectEnhanced lowspeed torque delivers greater traction power for excavator heavyload startup and digging operational activities.

Basic Structure (Three Major Core Structural Units)

Turbine Section (Exhaust Side Unit Assembly)Linked to the exhaust manifold, 600–900 ℃ hightemperature exhaust gas impacts the turbine impeller, spinning the main central shaft at 100,000–200,000 rpm.

Compressor Section (Intake Side Unit Assembly)Coaxially powered by the turbine shaft, the compressor wheel compresses air filtered by the air cleaner and sends boostedpressure air into engine cylinder assemblies.

Center Bearing Housing (LubricationCooling Modular Unit)Featuring floating bearings and engineoil lubricationcooling flow ducts, it endures high thermal loads and ultrafast rotational velocities. Engine oil removes heat to avoid bearing seizure damage failures.

Working Principle (4Step Operational Functional Cycle)

Exhaust Gas Impulse Driving StepHighheat highpressure exhaust gas flows into the turbine casing and rapidly rotates the turbine wheel impeller.

Coaxial Supercharging Synchronization StepThe turbine shaft drives the compressor impeller to spin synchronously at matching high rotational speeds.

Intake Air Compression Pressurization StepThe compressor draws in cleaned filtered fresh air and compresses it to 0.1–0.2 MPa with rising air temperature.

Intercooler Heat Dissipation Cooling StepWarm compressed air is cooled by the intercooler to boost air density, then enters cylinders for extra fuel injection and higher power output efficiency.
