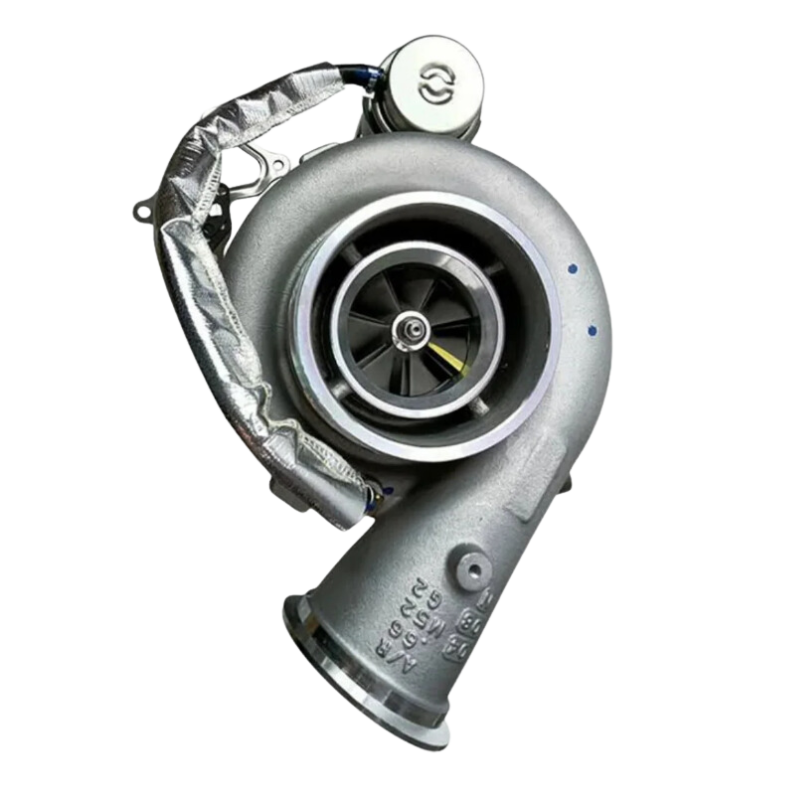

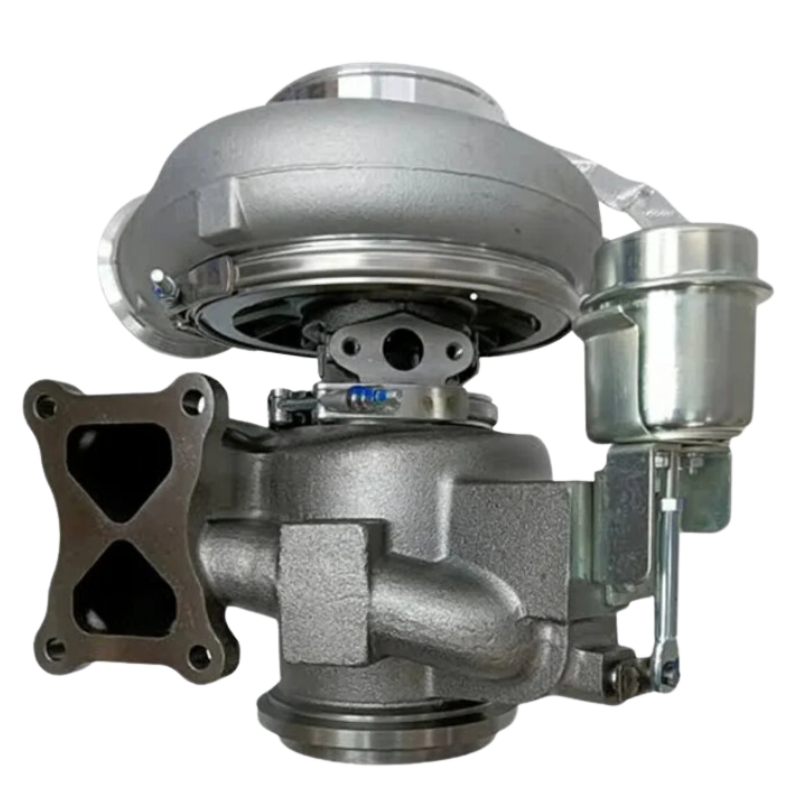

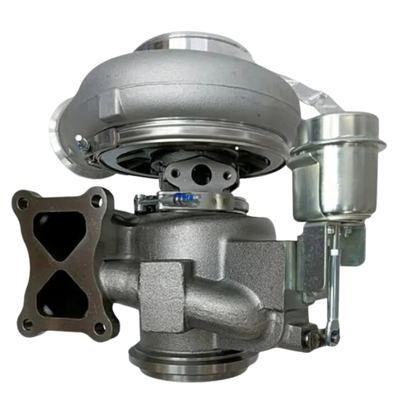

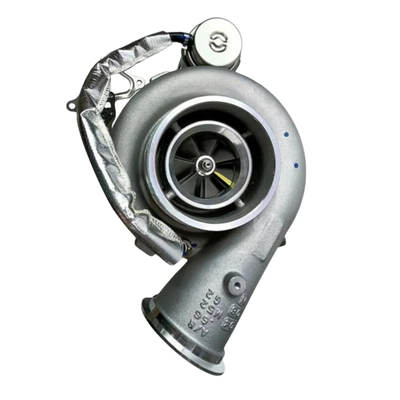

247-2962 247-2965 Excavator Turbocharger C13 Engine Excavator Assembly Components

The excavator turbocharger is an exhaust driven air compression unit mounted on the engine. Its core logic uses exhaust gas thermal energy to pressurize intake air, making diesel burn more fully, thus significantly increasing power, decreasing fuel usage and lowering black smoke output.

Core Functions

Power ElevationTurbocharging raises power by 30%–50% and torque notably on engines of identical displacement, delivering stronger performance during heavy load work and hill climbing.

Fuel Saving & Emission OptimizationAdequate intake air enables full fuel combustion, reducing fuel consumption by roughly 5% and cutting black smoke, CO and HC emissions.

Low Speed Torque ImprovementGreater low rpm torque provides higher power for excavator heavy load startup and digging tasks.

Basic Structure (Three Primary Components)

Turbine End (Exhaust Side)Joined to the exhaust manifold, it is impacted by 600–900 ℃ hot exhaust gas, rotating the central shaft at 100,000–200,000 rpm through the turbine wheel.

Compressor End (Intake Side)Driven by the shared shaft, the compressor impeller compresses air filtered by the air filter and sends boosted air into engine cylinders.

Central Bearing Housing (Lubrication & Cooling Module)Incorporating floating bearings and engine oil lubrication cooling passages, it endures high temperatures and ultra high rotation speeds. Engine oil dissipates heat to avoid bearing seizure failure.

Working Principle (4 Stage Mechanism)

Exhaust Gas Power InputHigh temperature high pressure exhaust enters the turbine housing and spins the turbine impeller at high speed.

Coaxial Synchronous RotationThe turbine shaft turns the compressor wheel in sync at ultra high speed.

Intake PressurizationThe compressor draws clean filtered air and compresses it to 0.1–0.2 MPa with increased temperature.

Intercooling ProcessHot compressed air is cooled by the intercooler to boost air density, then enters cylinders for more fuel injection and greater power generation.
