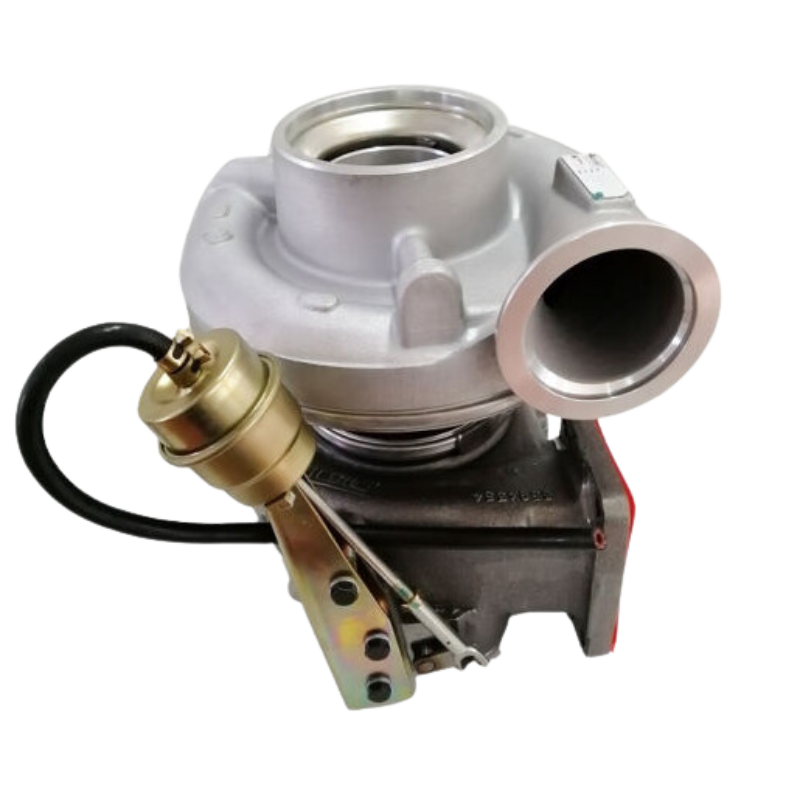

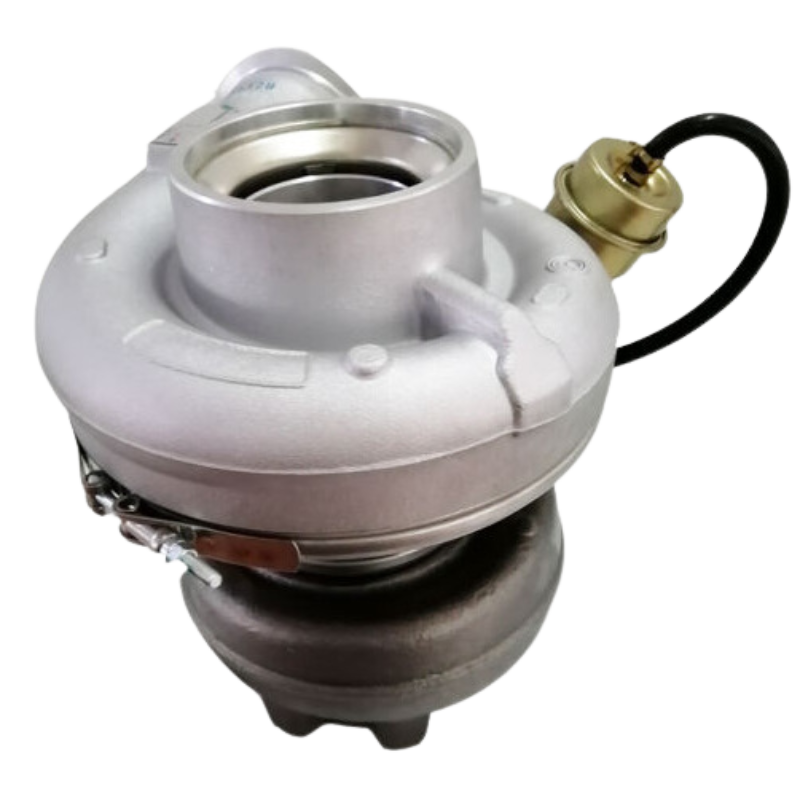

6222-81-8310 Excavator Turbocharger S6D125-2 WA400-3 WA420-3 Engine Turbo Charger

Commonly known as an exhaust driven air compressor fitted to excavator engines, the turbocharger uses exhaust gas energy to compress incoming air. This improves diesel combustion completeness, substantially enhancing power output, decreasing fuel consumption and lowering black smoke emission levels.

Core Functions

Power ImprovementEngines with identical displacement gain 30%–50% extra power and notable torque growth with turbocharging, supporting strong heavy load and climbing performance.

Fuel Efficiency & Emission CutAdequate air intake ensures full fuel combustion, reducing fuel use by approximately 5% and cutting black smoke, CO and hydrocarbon discharge.

LowEnd Torque StrengtheningImproved low speed torque offers greater force for excavator heavyload startup and digging operations.

Basic Structure (Three Major Core Assemblies)

Turbine Side (Exhaust Assembly)Attached to the exhaust manifold, it receives 600–900 ℃ hightemperature exhaust gas that drives the turbine impeller, spinning the main shaft at 100,000–200,000 rpm.

Compressor Side (Intake Assembly)Coaxially powered, the compressor wheel compresses air filtered by the air cleaner and feeds boosted air into engine cylinders.

Center Bearing Unit (Lubrication Cooling Housing Assembly)Designed with floating bearings and engine oil cooling lubrication passages, it withstands high thermal loads and ultra fast rotation. Engine oil dissipates heat to prevent bearing sintering faults.

Working Principle (4 Step Operating Cycle)

Exhaust Gas Activation ForceHot high pressure exhaust flows into the turbine casing and rapidly rotates the turbine wheel.

Coaxial Supercharging MovementThe turbine shaft drives the compressor impeller to rotate synchronously at high speed.

Intake Air Compression ProcessThe compressor draws in filtered fresh air and compresses it to 0.1–0.2 MPa while raising air temperature.

Intercooler Cooling PhaseWarm compressed air is cooled by the intercooler to increase air density, then enters cylinders for extra fuel injection and higher power output.
