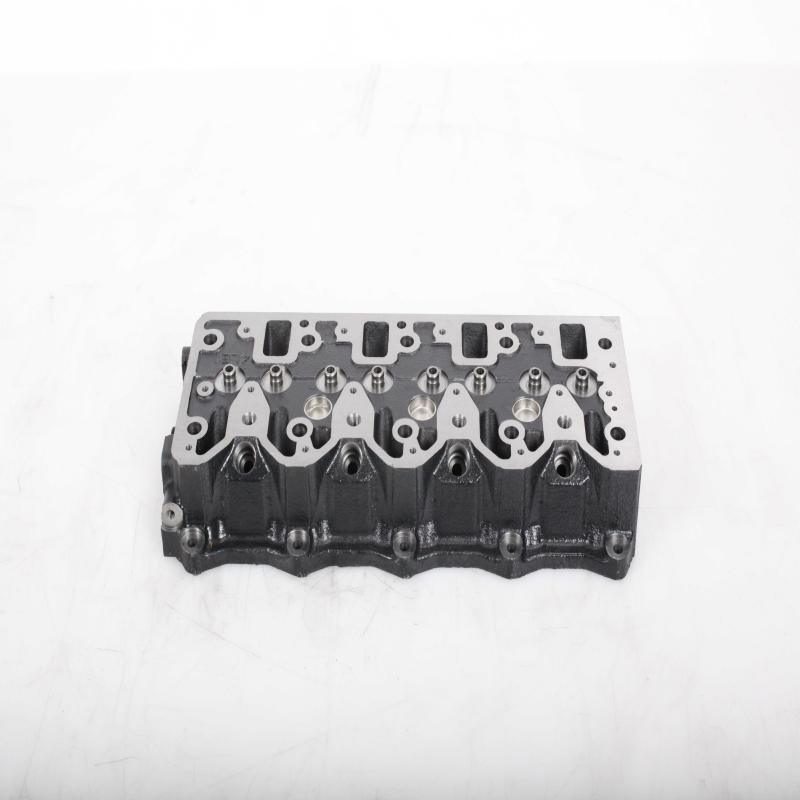

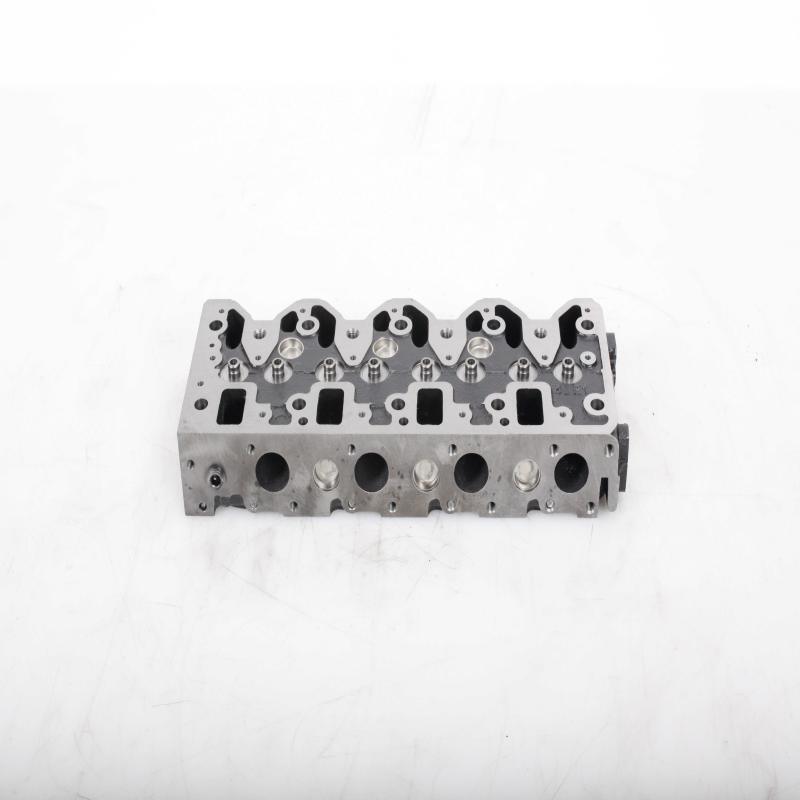

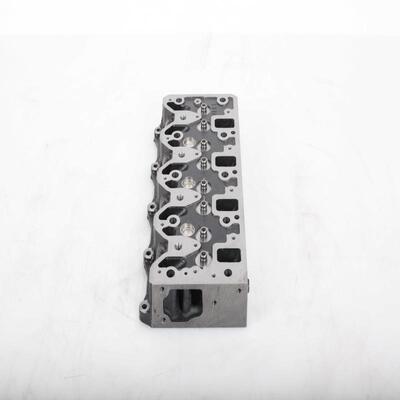

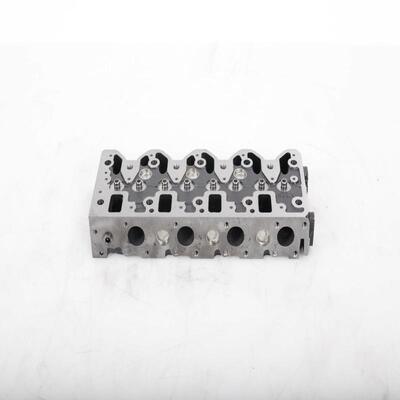

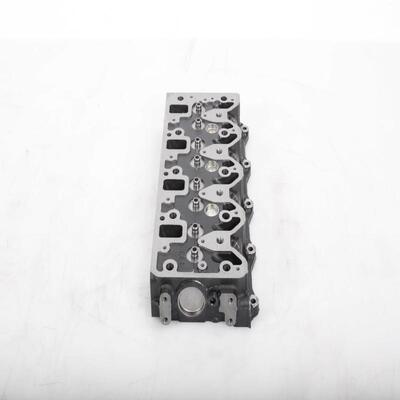

4lE1 Diesel Engine Cylinder Head Heavy Duty Cylinder Head Assembly

Engine Cylinder Head 4lE1 Diesel Engine Cylinder Head Assembly Excavator Machinery Parts

Excavator Engine Cylinder Head Component As a key heavy-duty precision part of an engine, the cylinder head is mounted on the upper part of the cylinder block. It seals the cylinders, forms combustion chambers, integrates the valve train and cooling-lubrication channels, and directly determines the engine’s power, fuel efficiency and operational stability. Core Functions Sealing the Combustion Chamber: It fits tightly with the cylinder block and cylinder head gasket, enduring combustion pressure of 10–15 MPa and high temperatures of 600–900 °C to prevent air, water and oil leakage. Valve Train Base Structure: It is equipped with valve seats, valve guides, intake and exhaust valves, valve springs, rocker arms and camshafts (for overhead-cam engines), regulating the timing of intake and exhaust. Integrated Cooling and Lubrication System: Internally cast with water jackets for heat dissipation and oil galleries for lubricating valves and camshafts, it avoids thermal deformation and wear of moving parts. Fuel Injection Installation Interface: Diesel engine cylinder heads are processed with injector mounting holes to ensure that high-pressure fuel is accurately injected into the combustion chamber. Common Faults Surface Distortion / Warpage: Resulting from overheating, uneven bolt torque or burned cylinder head gaskets, it causes air leakage, reduced power and high water temperature; resurfacing is needed if flatness exceeds 0.10 mm. Cracks: Cracks appear near water channels, oil galleries or valve seats, leading to water, oil and air leakage; non-destructive testing is required, and severely cracked ones are to be discarded. Valve Seat / Guide Wear: Long-term high-temperature impact leads to poor sealing, valve noise and oil burning; it is necessary to replace seat rings and guides and lap the valves. Injector Bore Corrosion: Induced by fuel leakage and high-temperature gas erosion, it results in poor sealing and insufficient power; bushing repair or cylinder head replacement is necessary.
