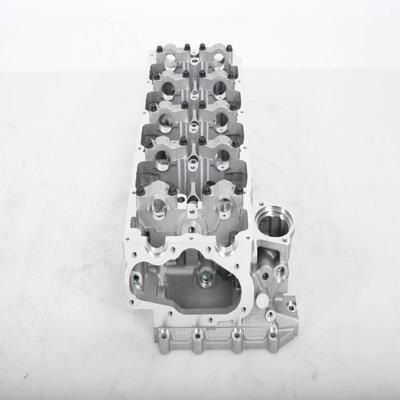

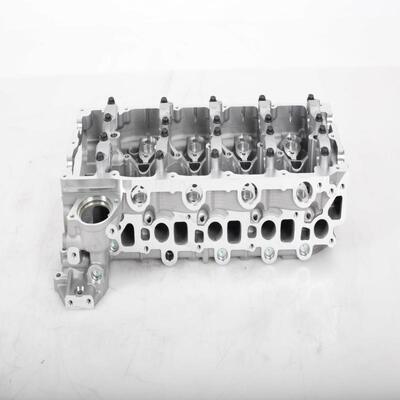

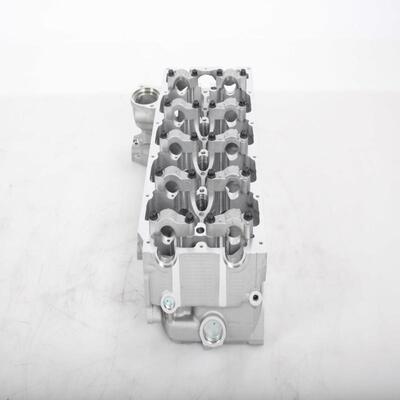

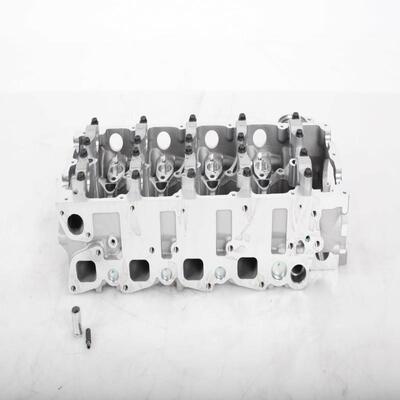

Precision Diesel Engine Parts Isuzu 4JJ1 Cylinder Head Excavator Machinery Parts

Isuzu 4JJ1 Cylinder Head Assembly Excavator Machinery Parts Cylinder Head Engine Parts

Cylinder Head for Excavators The cylinder head is among the most critical heavy-duty precision components of an engine. Mounted on top of the cylinder block, it seals the cylinders, constitutes combustion chambers, integrates the valve train along with cooling and lubrication passages, and has a direct effect on engine power output, fuel consumption and reliability. Core Functions Combustion Chamber Sealing: Closely attached to the cylinder block and cylinder head gasket, it withstands 10–15 MPa of combustion pressure and high temperatures from 600 to 900 °C, preventing the leakage of air, water and oil. Valve Train Mounting Foundation: It holds valve seats, valve guides, intake and exhaust valves, valve springs, rocker arms and camshafts (overhead-cam type), controlling intake and exhaust timing. Integrated Cooling and Lubrication: With internally cast water jackets for heat dissipation and oil galleries for lubricating valves and camshafts, it prevents thermal deformation and component wear. Fuel Injection Mounting Point: The cylinder head of diesel engines is machined with injector mounting holes to guarantee precise injection of high-pressure fuel into the combustion chamber. Common Faults Surface Distortion / Warpage: Caused by overheating, uneven bolt tightness or damaged cylinder head gaskets, symptoms include air leakage, power reduction and high coolant temperature; grinding repair is required when flatness is over 0.10 mm. Cracks: Cracks form around water passages, oil galleries or valve seats, causing water, oil and air leakage; flaw detection is needed, and severely cracked cylinder heads must be scrapped. Valve Seat / Guide Wear: Long-term high-temperature impact causes seal failure, valve noise and oil consumption; replacement of seat inserts and guides as well as valve lapping is needed. Injector Bore Corrosion: Triggered by fuel leakage and high-temperature gas erosion, it leads to poor sealing and insufficient power; repair by bushing or cylinder head replacement is necessary.
