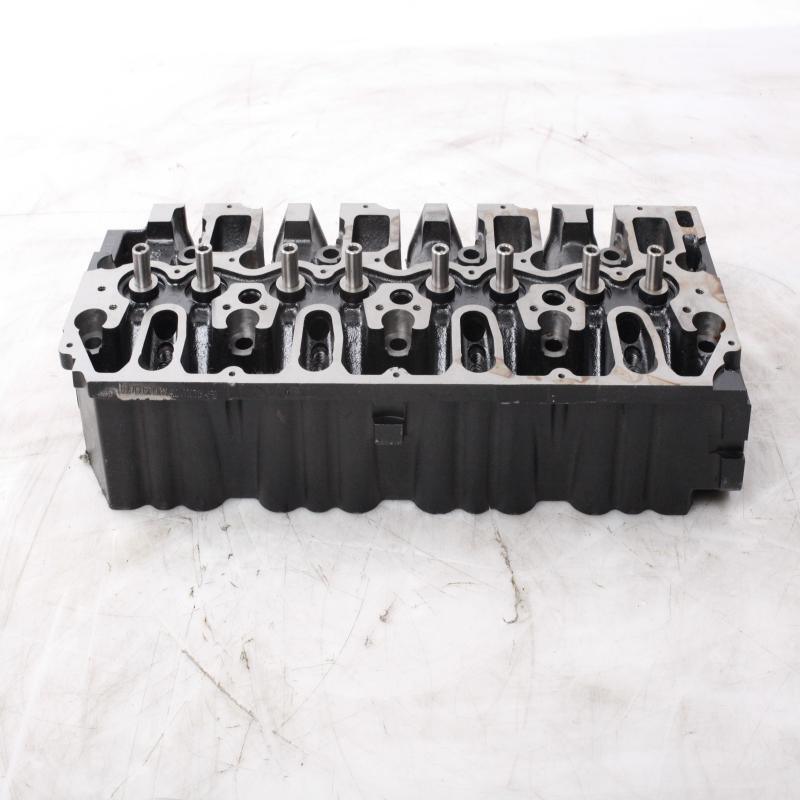

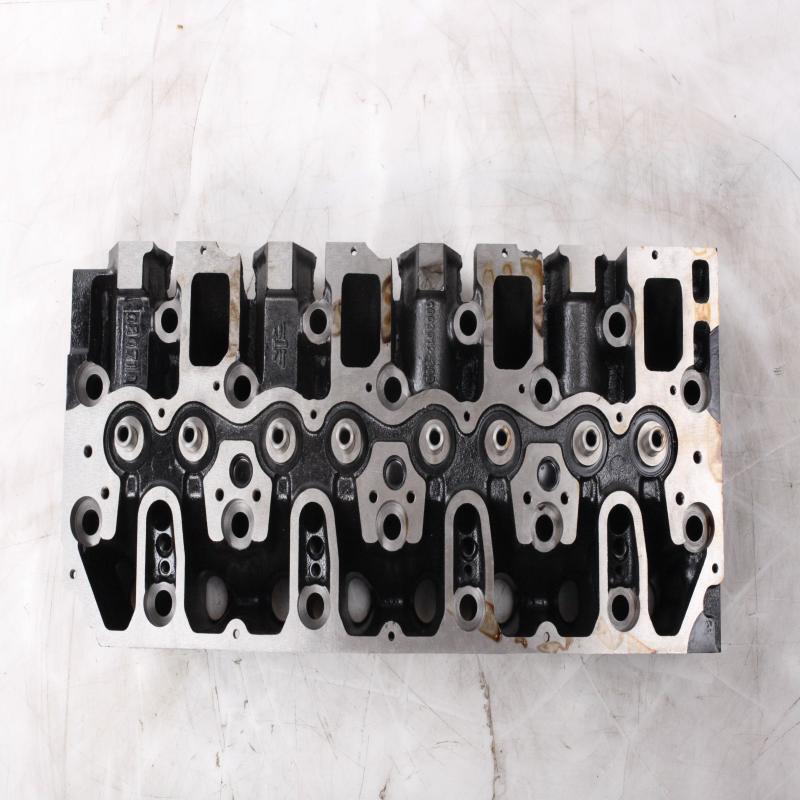

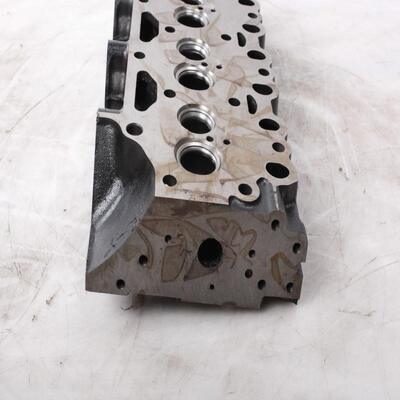

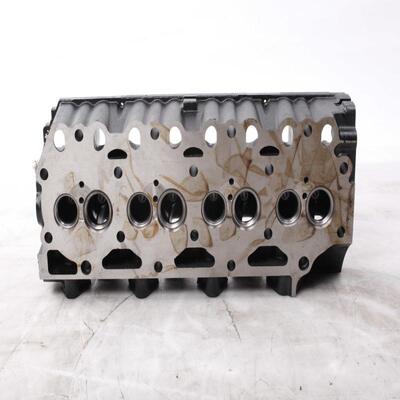

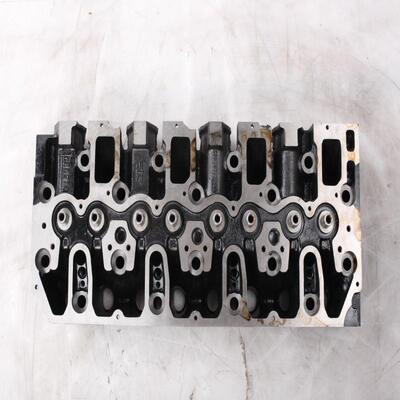

4M1013 Diesel Engine Parts Precision Excavator Engine Parts Cylinder Head

4M1013 Cylinder Head Diesel Engine Parts Excavator Machinery Parts Cylinder Head

Cylinder Head (Excavator Engine Application) The cylinder head is one of the most crucial heavy-duty precision components in an engine. Installed above the cylinder block, it seals the cylinders, forms combustion chambers, integrates the valve train and cooling-lubrication passages, and directly influences engine power, fuel consumption and reliability. Core Functions Combustion Chamber Sealing: Closely mated with the cylinder block and cylinder head gasket, it bears 10–15 MPa of combustion pressure and 600–900 °C of high temperature, preventing air, water and oil from leaking out. Valve Train Mounting Base: It accommodates valve seats, valve guides, intake and exhaust valves, valve springs, rocker arms and camshafts (overhead-cam model), controlling the timing of intake and exhaust strokes. Integrated Cooling and Lubrication: Internal cast water jackets are used for heat dissipation, and oil galleries are used for lubricating valves and camshafts, avoiding thermal deformation and component wear. Fuel Injection Mounting Position: The cylinder head of a diesel engine is machined with injector mounting holes to ensure the precise injection of high-pressure fuel into the combustion chamber. Common Faults Surface Distortion / Warpage: Caused by overheating, uneven bolt torque or damaged cylinder head gaskets, symptoms include air leakage, power loss and high coolant temperature; grinding repair is required when flatness exceeds 0.10 mm. Cracks: Cracks occur in the vicinity of water passages, oil galleries or valve seats, resulting in water, oil and air leakage; flaw detection is needed, and severely cracked cylinder heads must be replaced. Valve Seat / Guide Wear: Long-term high-temperature impact causes seal failure, valve noise and oil consumption; replacement of seat inserts and guides plus valve lapping is necessary. Injector Bore Corrosion: Caused by fuel leakage and high-temperature gas erosion, it leads to poor sealing and insufficient power; repair by inserting a bushing or replacing the cylinder head is required.
