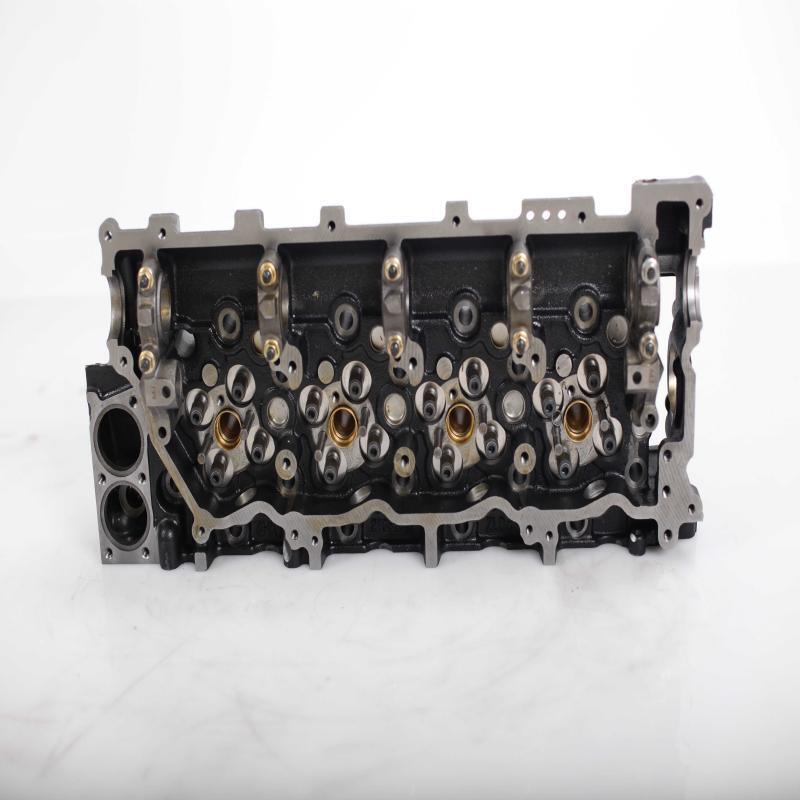

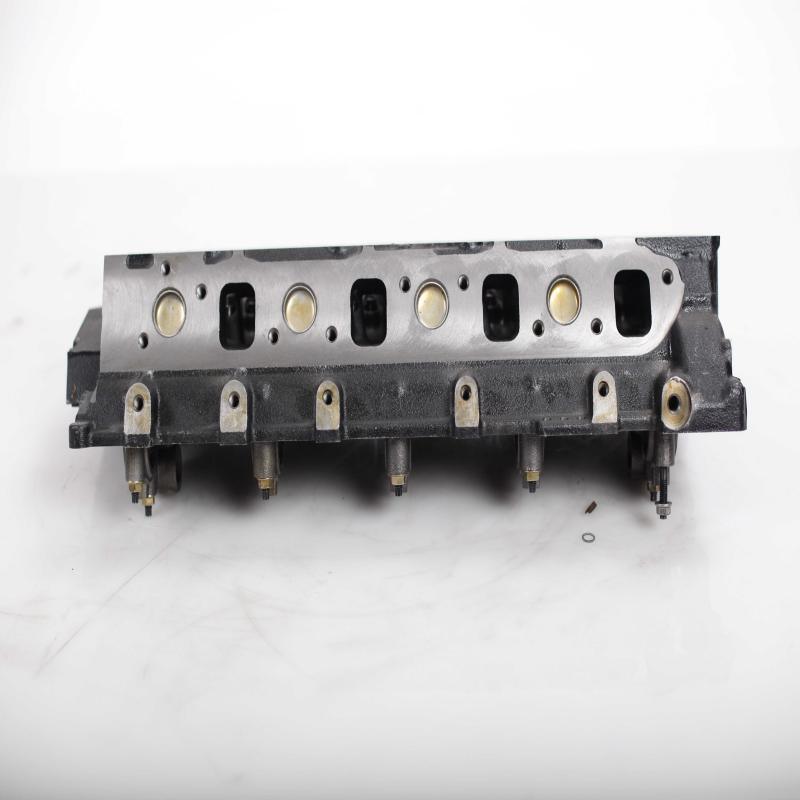

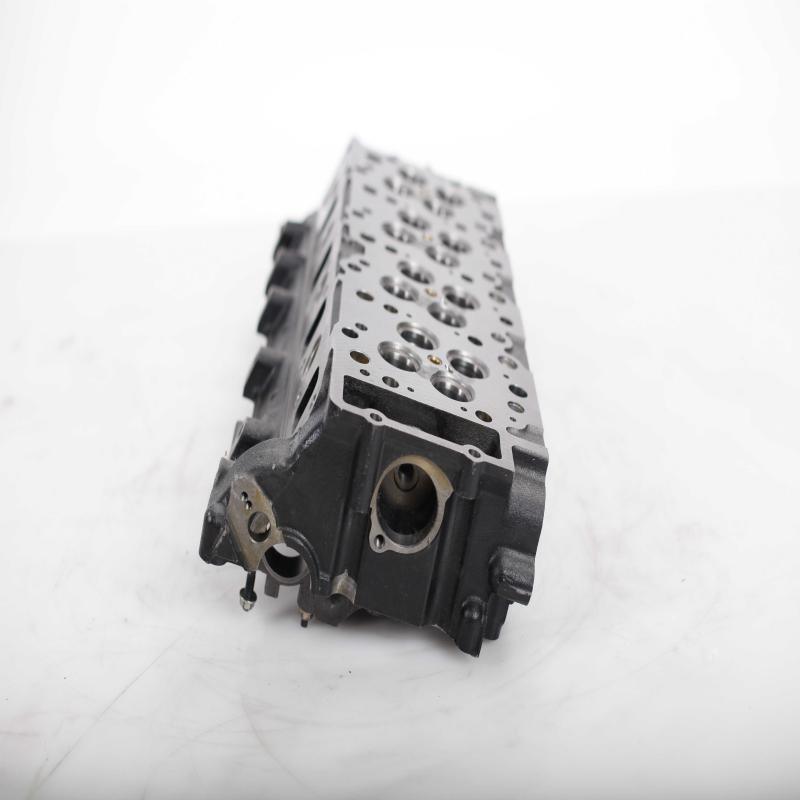

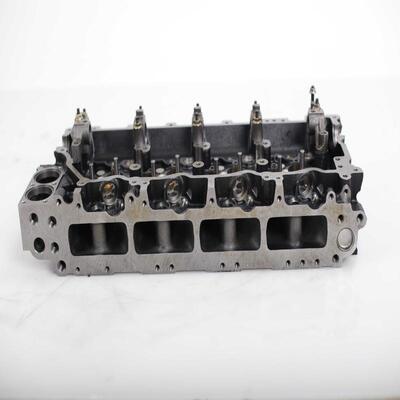

Cast Iron Cylinder Head Assembly OEM Isuzu 4HK1 Cylinder Head Excavator Machinery Parts

Cylinder Head Assembly Isuzu 4HK1 Diesel Engine Excavator Machinery Parts Diesel Engine Parts

Excavator Cylinder Head (Engine Core Component) One of the most essential heavy-duty precision parts of an engine, the cylinder head is installed above the cylinder block. It seals the cylinders, forms the combustion chamber, integrates the valve train and cooling-lubrication channels, and directly affects engine power, fuel consumption and dependability. Core Functions Combustion Chamber Sealing: It fits closely with the cylinder block and cylinder head gasket, bearing a combustion pressure of 10–15 MPa and high temperatures of 600–900 °C to keep air, water and oil from leaking. Valve Train Base: It is fitted with valve seats, valve guides, intake and exhaust valves, valve springs, rocker arms and camshafts (for overhead-cam engines), adjusting the timing of intake and exhaust. Integrated Cooling and Lubrication: Internally cast with cooling water jackets (for heat dissipation) and lubricating oil galleries (for lubricating valves and camshafts), it avoids thermal deformation and wear. Fuel Injection Installation: Diesel engine cylinder heads are processed with injector mounting holes to ensure that high-pressure fuel is accurately sprayed into the combustion chamber. Common Faults Surface Distortion / Warpage: Caused by overheating, uneven bolt torque or burned cylinder head gaskets, it leads to air leakage, reduced power and high water temperature; resurfacing repair is needed when flatness exceeds 0.10 mm. Cracks: Cracks occur near water channels, oil galleries or valve seats, resulting in water, oil and air leakage; non-destructive testing is necessary, and severely cracked ones should be replaced. Valve Seat / Guide Wear: Long-term high-temperature impact results in poor sealing, valve noise and oil burning; replacement of seat rings and guides and valve grinding is required. Injector Bore Corrosion: Caused by fuel leakage and high-temperature gas erosion, it leads to poor sealing and insufficient power; bushing repair or cylinder head replacement is needed.
