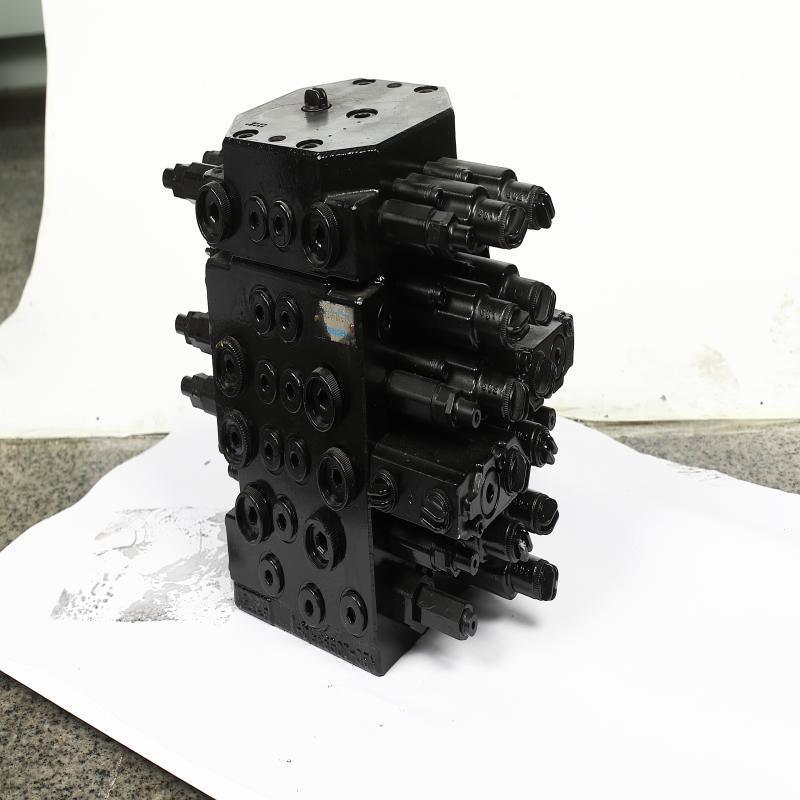

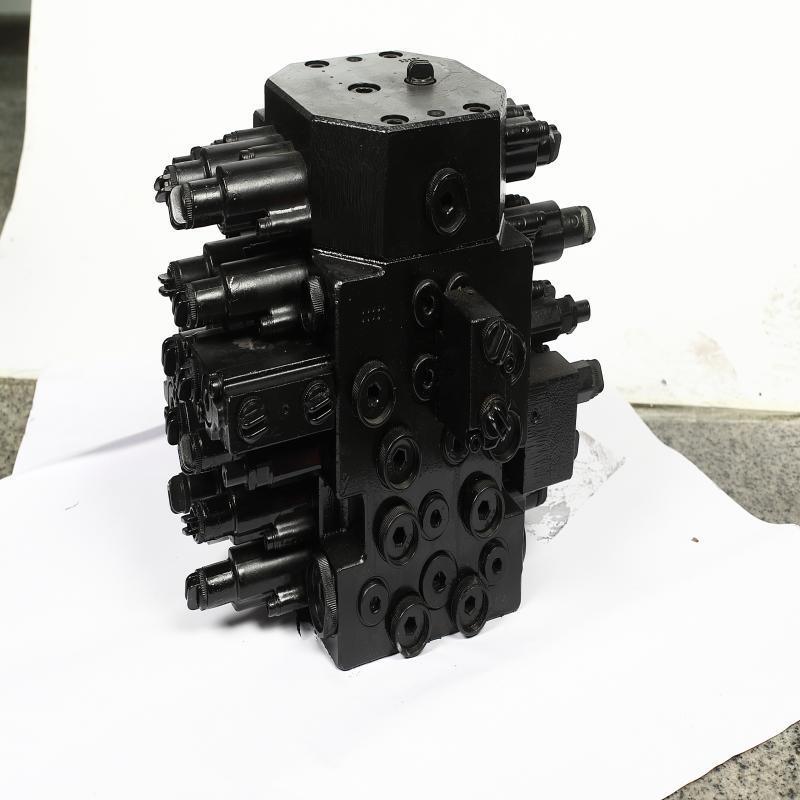

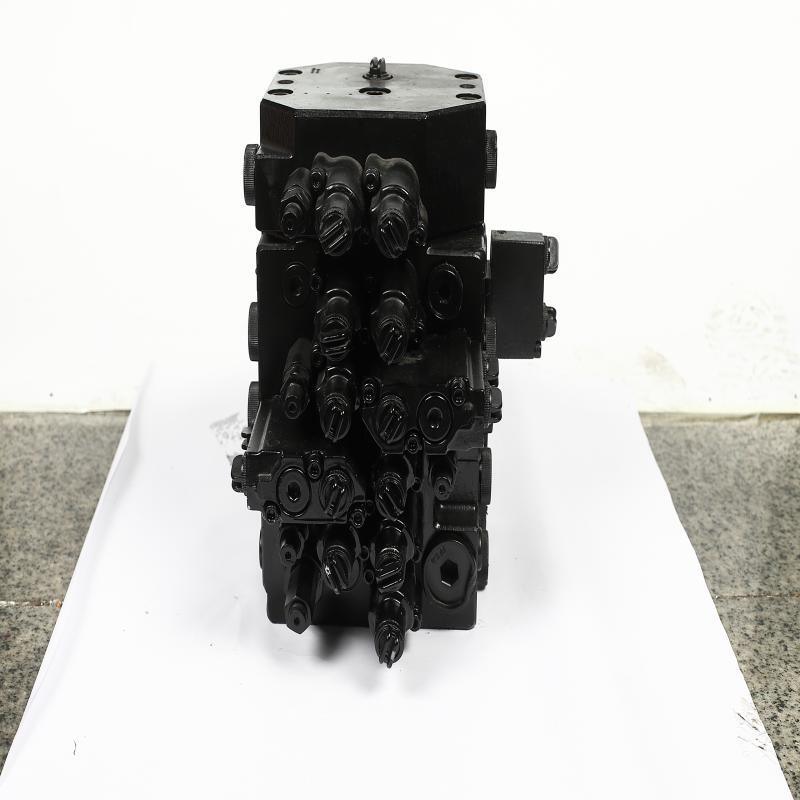

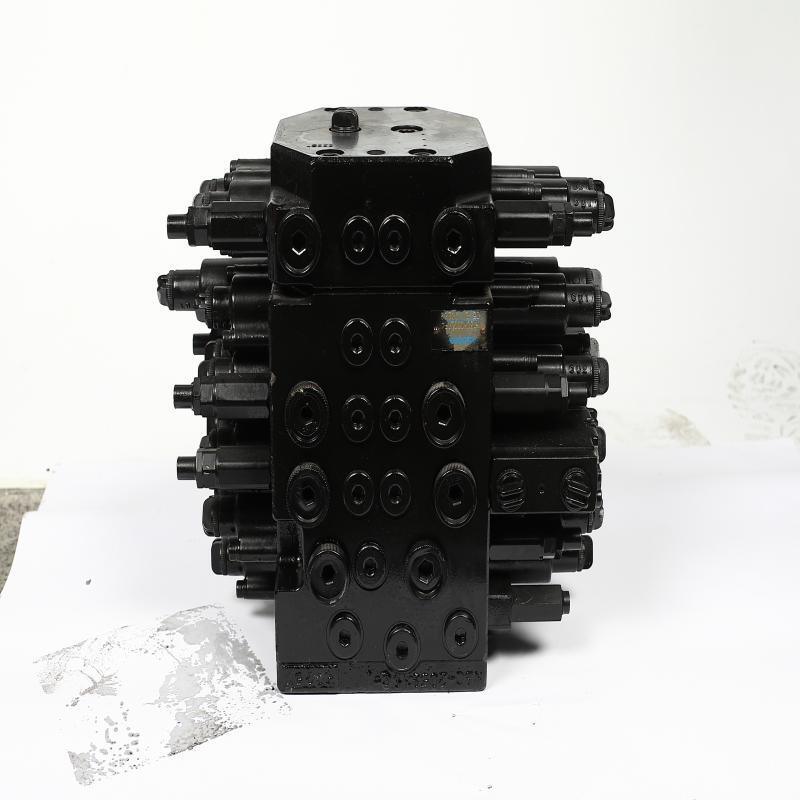

SK75 Hydraulic Main Control Valve Black Main Hydraulic Control Valve

SK75 Excavator Hydraulic Control Valve Main Control Valve Excavator Hydraulic Parts Excavator Parts

The main control valve of an excavator serves as the master switch + flow distribution manifold of the hydraulic system, also known as a multi-way valve or main valve.It acts as the central valve control station for all movements of the excavator, including boom lifting, arm retracting, bucket digging, slewing, and forward/reverse traveling.

Function

• Delivers to the boom cylinder → Boom lifting and lowering
• Delivers to the arm cylinder → Arm extending and retracting
• Delivers to the bucket cylinder → Bucket opening and closing
• Delivers to the swing motor → Machine slewing
• Delivers to the travel motor → Forward and reverse traveling

• Common Faults and Troubleshooting

  • Slow / weak operation: Insufficient pressure of main relief valve, spool wear and internal leakage, negative flow / LS valve sticking; Test system pressure, disassemble and inspect spools, clean the valve assembly.
  • Jerky / jittery operation: Scratched spool, spring fatigue, unstable pilot pressure; Grind or replace spools and springs, calibrate pilot pressure.
  • Oil leakage: Aging seals, valve body cracks; Replace sealing parts; repair cracks by welding or replace the valve body if cracked.
  • Uncoordinated compound actions: Merging valve sticking, load check valve failure; Clean the merging valve, check the tightness of check valves.
• The excavator main control valve (main valve / multi-way valve) is the "flow distribution center" of the hydraulic system. It is responsible for precisely distributing the high-pressure oil from the main pump to the executive components such as the boom, stick, bucket, swing, and travel, and determines the direction, speed, and compound coordination of the movements.

  The excavator main control valve (main valve / multi-way valve) acts as the flow distribution center of the hydraulic system. It precisely distributes high-pressure hydraulic oil from the main pump to executive components including boom, arm, bucket, swing and travel mechanism, and governs the direction, speed and compound action coordination of all excavator movements.
