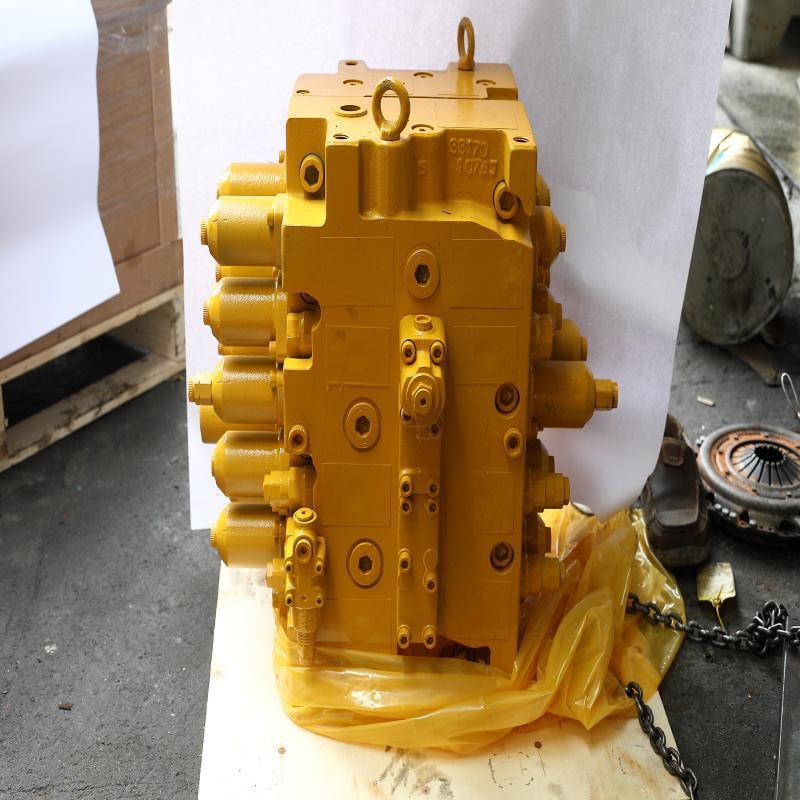

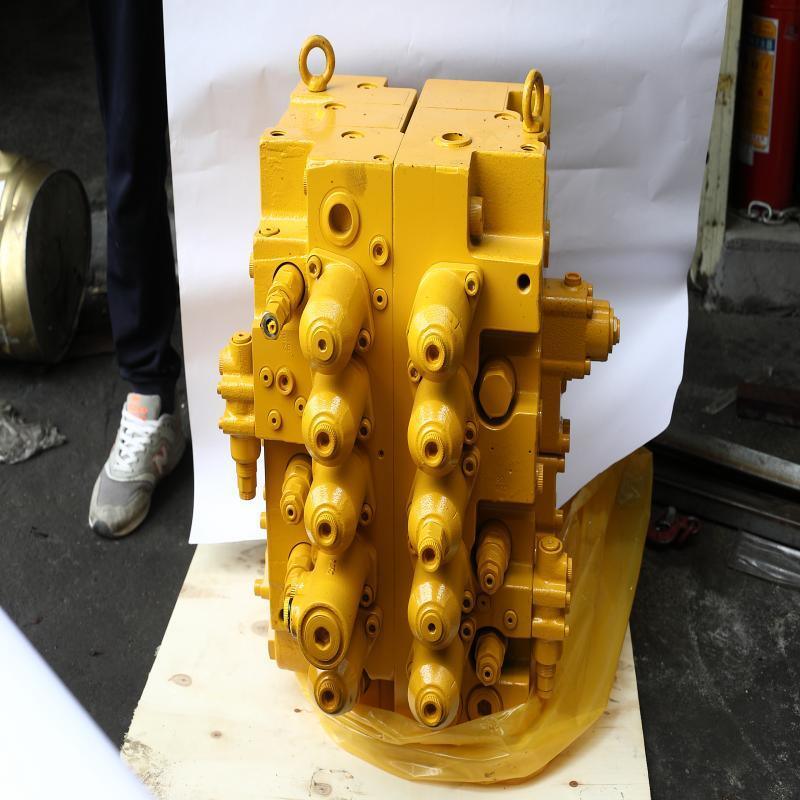

KMX32N Excavator Control Valve Yellow Hydraulic Distribution Valve OEM

 Hydraulic Main Control Valve KMX32N Construction Excavator Machinery Parts Hydraulic Valve Mian Valve

• • Jerky/unstable running performance: Scuffed spools, aged springs, inconsistent pilot pressure. Refinish or substitute spools and springs, calibrate pilot pressure properly.
  • Oil leakage failures: Worn seal gaskets, valve body cracks. Change sealing elements; weld damaged areas or replace valve body.
  • Poor coordination of simultaneous actions: Sticky combining valves, defective load check valves. Clean flow‑combining valves and check check‑valve sealing performance.
    Commonly known as multi‑way valve or main valve, the main control valve acts as both main switch and flow divider for an excavator’s hydraulic system, managing all core operations including boom lifting, arm retracting, bucket excavation, slewing and bidirectional traveling.

    Functions

    It accepts high‑pressure oil generated by the main hydraulic pump unit.

    Moving the control lever causes pilot oil to push each internal spool of the valve body.

    High‑pressure oil is precisely routed to matched executive components:

    Boom cylinder – boom vertical motion

    Arm cylinder – arm in‑and‑out movement

    Bucket cylinder – bucket open‑and‑close action

    Swing motor – upper‑body slewing

    Travel motor – chassis forward/backward travel

    Common Faults & Troubleshooting

    Sluggish or under‑powered working performance: Low main relief pressure, worn spools with internal leakage, sticking LS or negative‑flow valves. Check system pressure, dismantle spools for inspection, clean valve assemblies.

  The excavator main control valve functions as the hydraulic flow distribution center. It precisely allocates high‑pressure oil from the main pump to boom, arm, bucket, swing and travel mechanisms, governing movement direction, speed and multi‑action synchronization.
