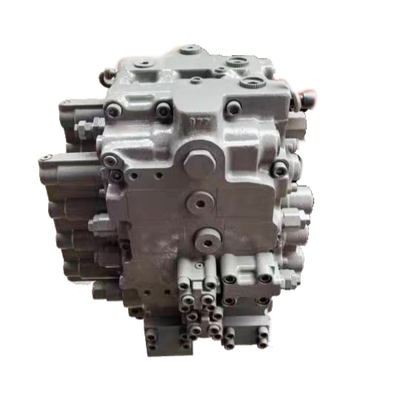

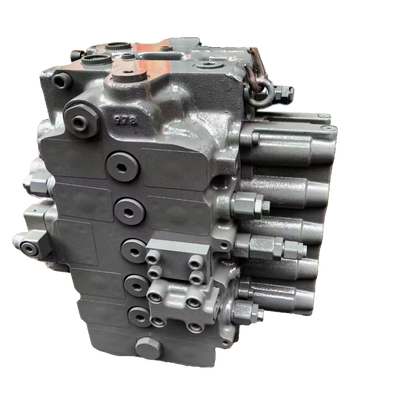

OEM Hitachi Excavator Control Valve ZX870-3 Hydraulic Control Valve Assembly

Excavator Main Control Valve Hitachi ZX870-3 Hydraulic Control Valve Excavator Machinery Parts

• • Slow‑response or low‑power actions: Low relief‑valve pressure, spool wear and internal leakage, stuck LS or negative‑flow valves. Test system pressure, disassemble spools for inspection, clean valve assemblies.
  • Jerky operational performance: Scratched spools, spring fatigue, unstable pilot pressure. Grind or replace spools and springs, calibrate pilot pressure stability.
  • Oil leaking issues: Deteriorated seals, valve body fissures. Replace seals; repair cracks by welding or replace the valve body.
  • Mismatched combined motions: Jammed merging valves, malfunctioning load check valves. Clean merging valves and check check‑valve sealing integrity.
    The main control valve of an excavator, alternatively called the main valve or multi‑way valve, integrates the roles of master switch and flow‑splitting manifold for the hydraulic system. It centrally controls all machine operations including boom elevation, arm retraction, bucket digging, slewing and forward/reverse travel.

    Functions

    It accepts high‑pressure hydraulic oil pumped by the main hydraulic pump.

    Moving the control handle allows pilot oil to drive each internal spool.

    Precise distribution of high‑pressure oil to corresponding executive components:

    Boom cylinder – boom lifting and lowering

    Arm cylinder – arm telescoping

    Bucket cylinder – bucket opening and closing

    Swing motor – upper‑structure rotationTravel motor – bidirectional chassis movement

    Common Faults & Troubleshooting

  As the hydraulic system’s flow distribution center, the main control valve accurately directs high‑pressure oil from the main pump to boom, arm, bucket, swing and travel actuators, determining motion direction, speed and multi‑action coordination.
