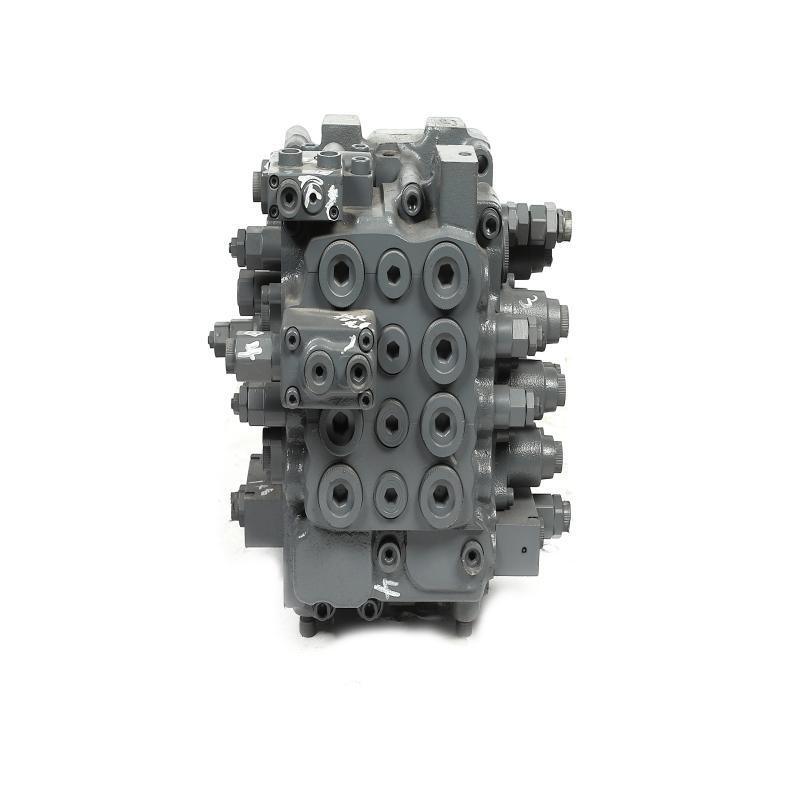

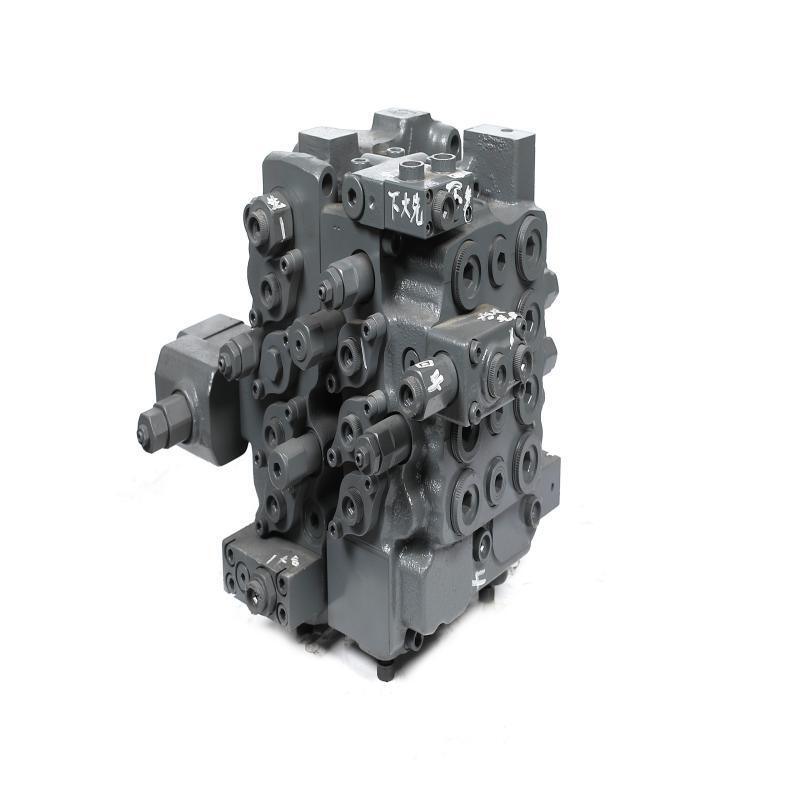

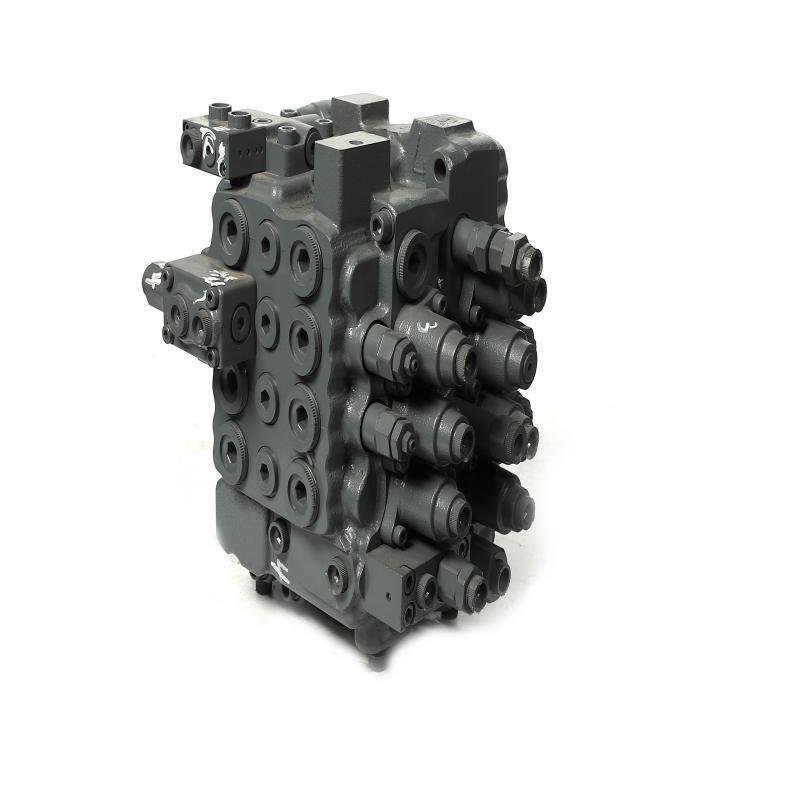

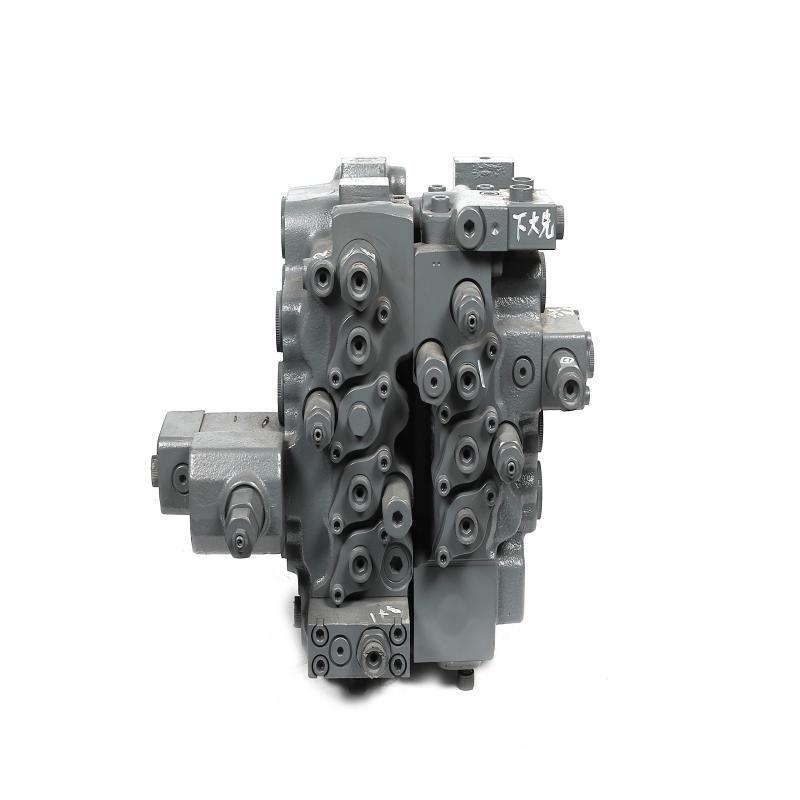

EC140 Hydraulic Main Control Valve UX22 Excavator Main Control Valve

Ec140 Excavator Hydraulic Control Main Valve Ux22 Excavator Machinery Parts Hydraulic Main Control Valve

• The excavator main control valve, also known as main valve or multi‑way valve, functions as the hydraulic system’s main switch and flow divider manifold. It oversees all core machine motions such as boom lifting, arm retraction, bucket digging, slewing and bidirectional traveling.

  Functions

  It receives high‑pressure hydraulic oil supplied by the main pump unit.

  When the operator shifts the control lever, pilot oil pushes each internal spool of the valve.

  High‑pressure oil is precisely allocated to respective executive units:

  Boom cylinder – boom up/down motion

  Arm cylinder – arm in‑and‑out movement

  Bucket cylinder – bucket opening/closing

  Swing motor – upper body rotation

  Travel motor – forward/reverse chassis travel

  Common Faults & Troubleshooting

  • Sluggish or weak operation: Low main relief pressure, worn spools with internal leakage, sticking LS or negative‑flow valves. Measure system pressure, inspect spools after disassembly, clean valve assemblies.
  • Unstable/jerky actions: Scuffed spools, fatigued springs, variable pilot pressure. Replace or grind spools and springs, calibrate pilot pressure properly.
  • Oil leakage failures: Worn seals, valve body cracks. Change sealing elements; repair cracks via welding or replace valve body.
  • Poor coordination of compound motions: Jammed merging valves, faulty load check valves. Clean combining valves and verify check‑valve tightness.



  Acting as the hydraulic flow distribution center, the main control valve precisely distributes main‑pump high‑pressure oil to boom, arm, bucket, swing and travel actuators, governing movement direction, speed and multi‑action synchronization.
