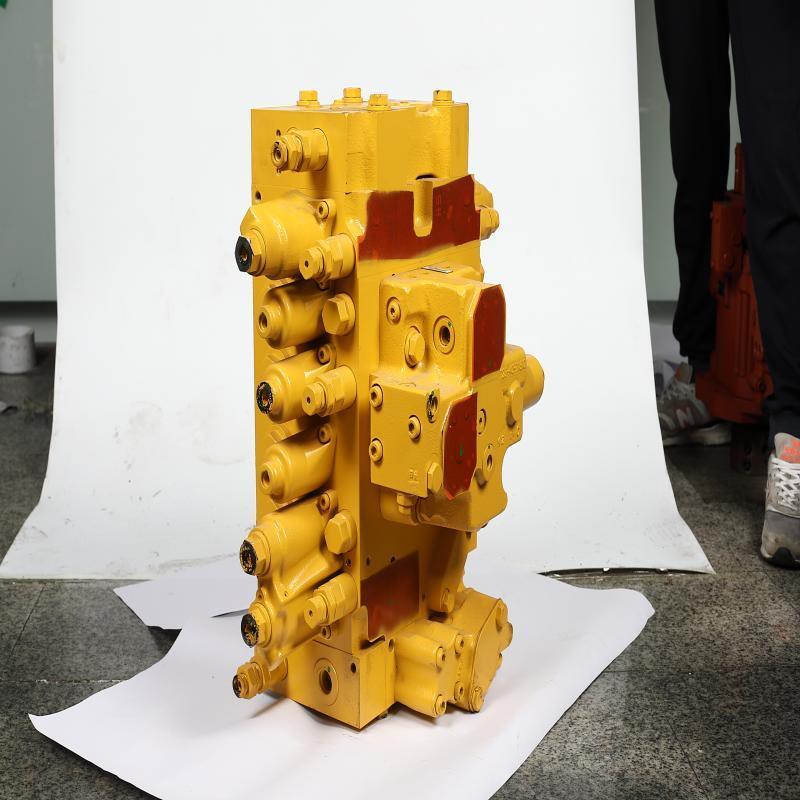

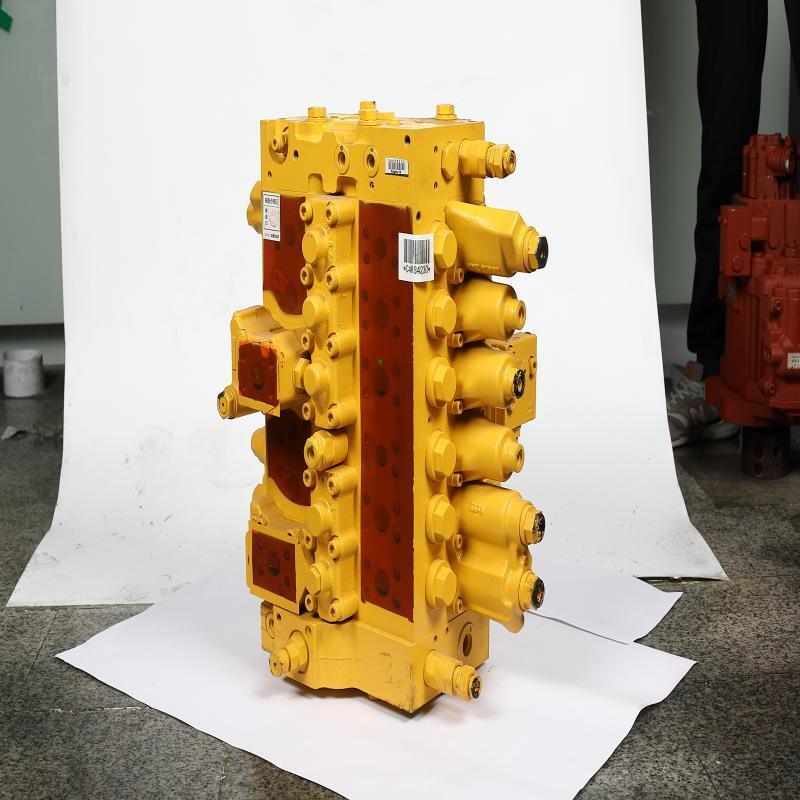

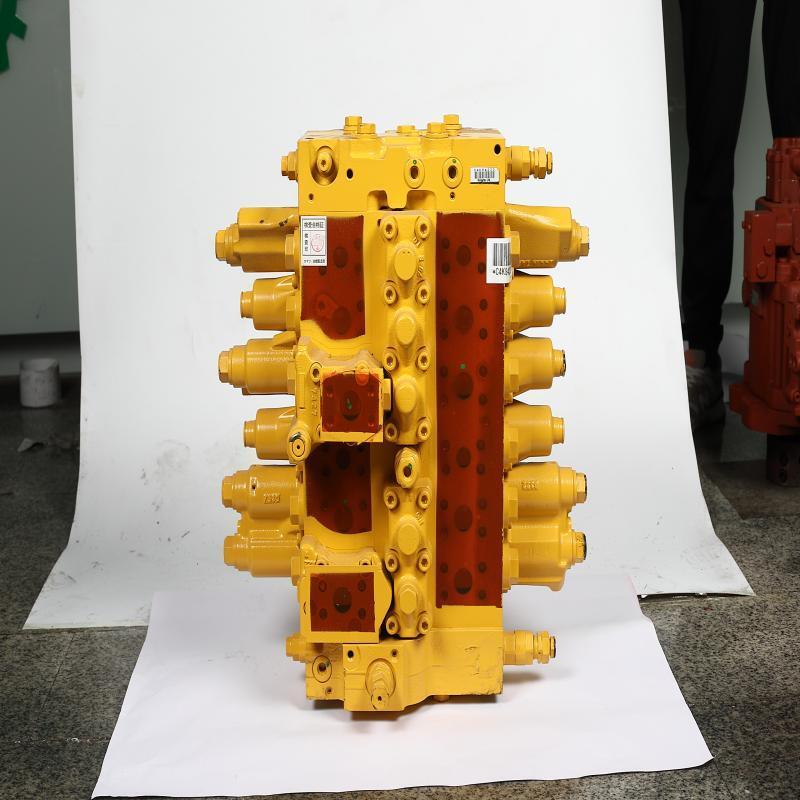

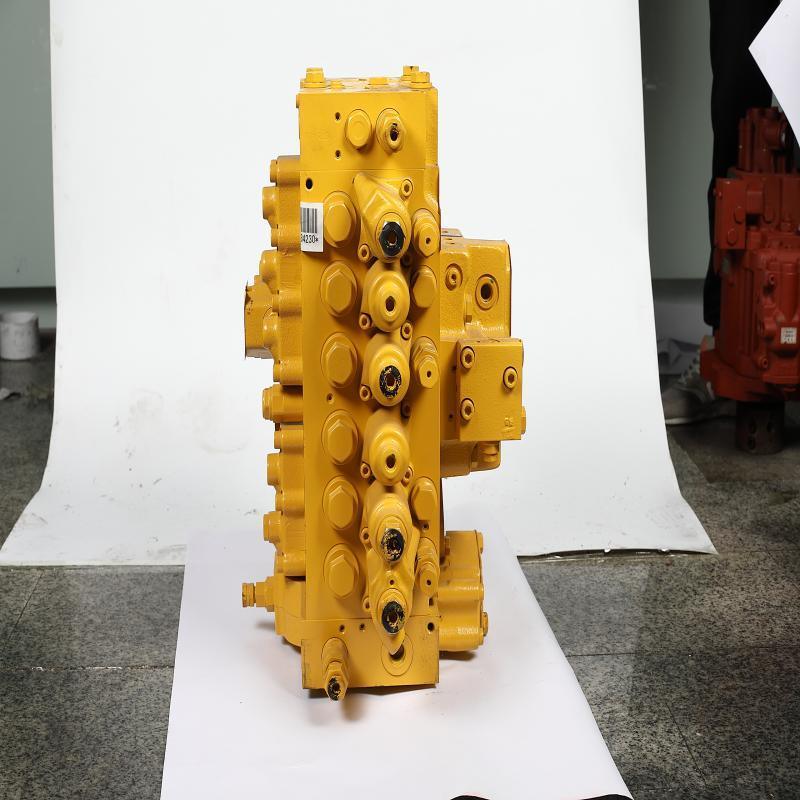

Control Valve Komatsu PC200-7 Excavator Spare Part Excavator Hydraulic Parts

PC200-7 Hydraulic Main Control Valve Komatsu Excavator Spare Part Excavator Hydraulic Parts Valve

• • Fluctuating/jerky performance: Scratched spools, spring fatigue, inconsistent pilot pressure. Refinish or renew spools and springs, calibrate pilot pressure values.
  • Oil leakage problems: Deteriorated sealing parts, valve body cracks. Replace seals; weld fractures or change the whole valve body.
  • Uncoordinated simultaneous actions: Blocked merging valves, defective load check valves. Clean combining valves and test check‑valve sealing tightness.
    Also termed the multi‑way valve or main valve, the main control valve is the master switch and flow divider for an excavator’s hydraulic system. It functions as the central control station for all working movements: boom lifting, arm retraction, bucket excavation, slewing and bidirectional traveling.

    Functions

    It receives high‑pressure hydraulic oil output by the main pump assembly.

    Shifting the control lever makes pilot oil push individual spools inside the valve.

    High‑pressure oil is precisely routed to corresponding executive units:

    Boom cylinder – boom vertical motion

    Arm cylinder – arm telescopic movement

    Bucket cylinder – bucket clamping/releasing

    Swing motor – upper‑structure rotation

    Travel motor – chassis forward/reverse travel

    Common Faults & Troubleshooting

    Sluggish or under‑powered operation: Low main relief valve pressure, worn spools causing internal leakage, stuck LS/negative‑flow valves. Check system pressure, dismantle spools for inspection, clean valve parts.

  The main control valve of an excavator is the hydraulic system’s core flow distribution center. It allocates main‑pump high‑pressure oil to boom, arm, bucket, swing and travel actuators precisely, regulating movement direction, speed and multi‑action harmony.
