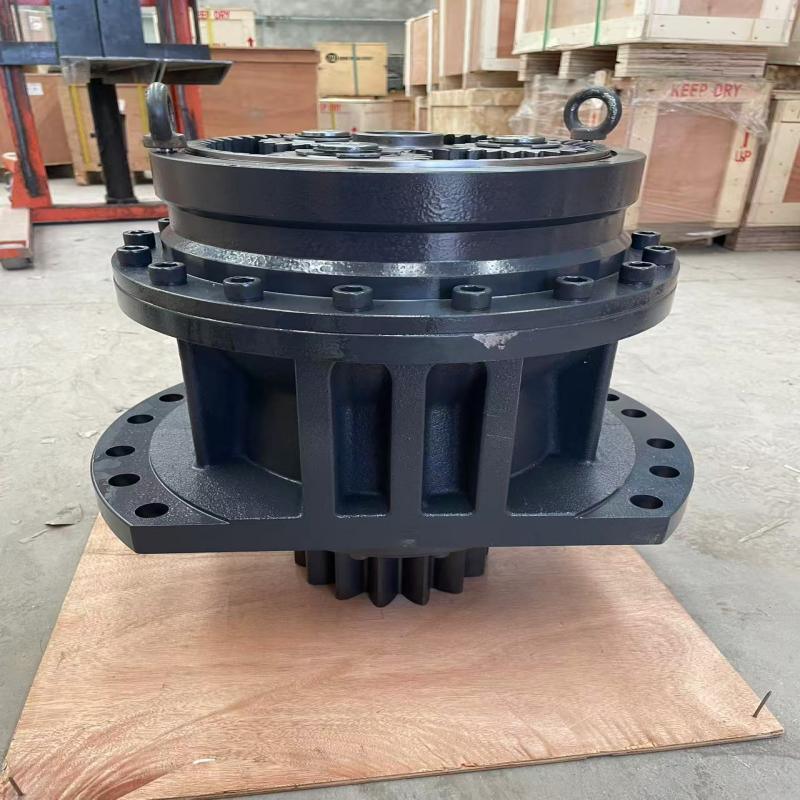

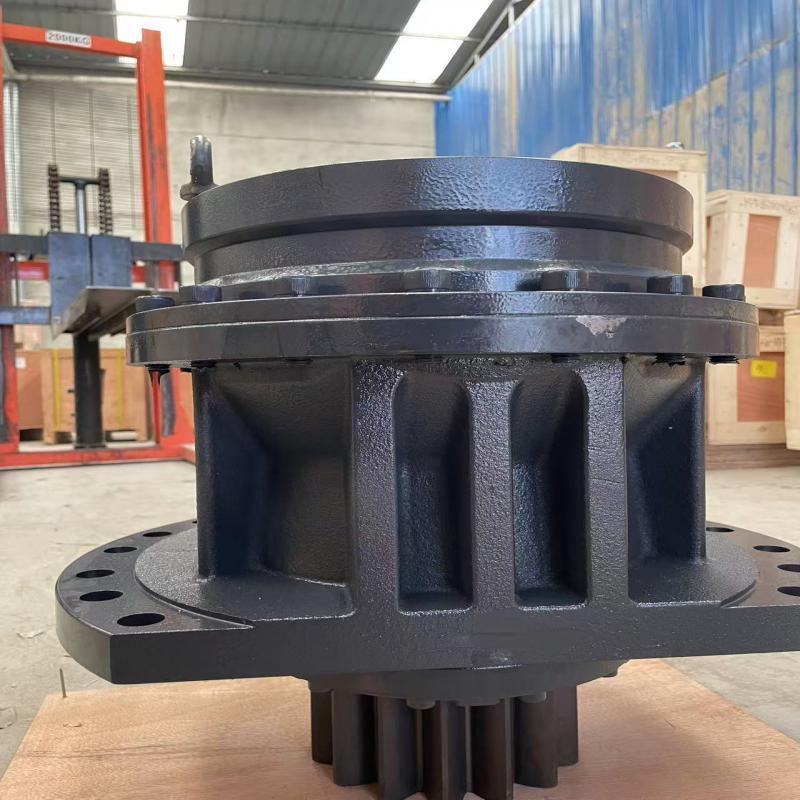

PC200-7 Excavator Swing Gear Box Black Slewing Reducer Swing Motor Parts

Core Structure

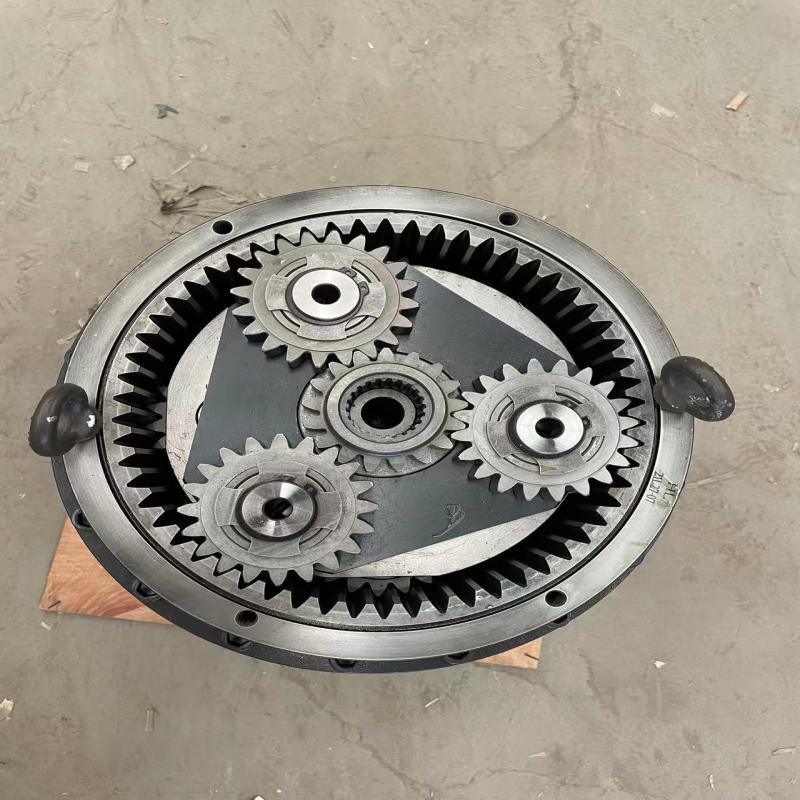

• Sun gear: Splined to slewing motor for incoming high-speed power.
• Planet gear: Three to four pieces per stage; combines revolution around sun gear and self-rotation to transfer torque.
• Ring gear: Fixed on reducer housing and meshes permanently with planet gears.
• Planet carrier: Power output member that drives the lower drive pinion.
• Brake: Integrated wet multi-disc braking system; spring-applied hold, hydraulic release to stop slewing runaway.
• Housing & Bearing: High-strength steel casting or forging housing, heavy-duty bearing support, good dustproof and sealing capability.

Working Principle

Common Faults & Causes

• Noise anomaly and jittering: Gear wear, pitting corrosion, bearing breakdown, inadequate or contaminated gear oil, abnormal meshing clearance.
• Oil seepage and leakage: Worn oil seals, housing cracking, excessive oil volume, blocked ventilation valve.
• Weak slewing performance: Gear/bearing wear, brake cannot fully release, motor internal oil leakage, improper speed ratio configuration.
• Overheating failure: Lack of lubricant, oil aging, frequent overload, brake dragging, poor heat dispersion.
• Gear jumping and tooth damage: Sudden impact load, foreign particle entry, mechanical fatigue wear, installation misalignment.
