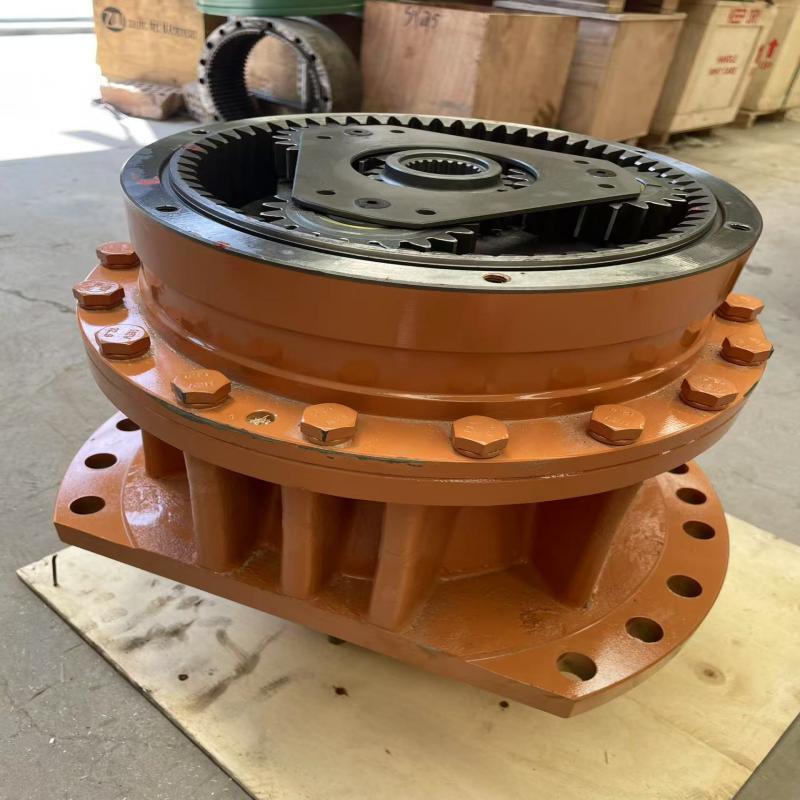

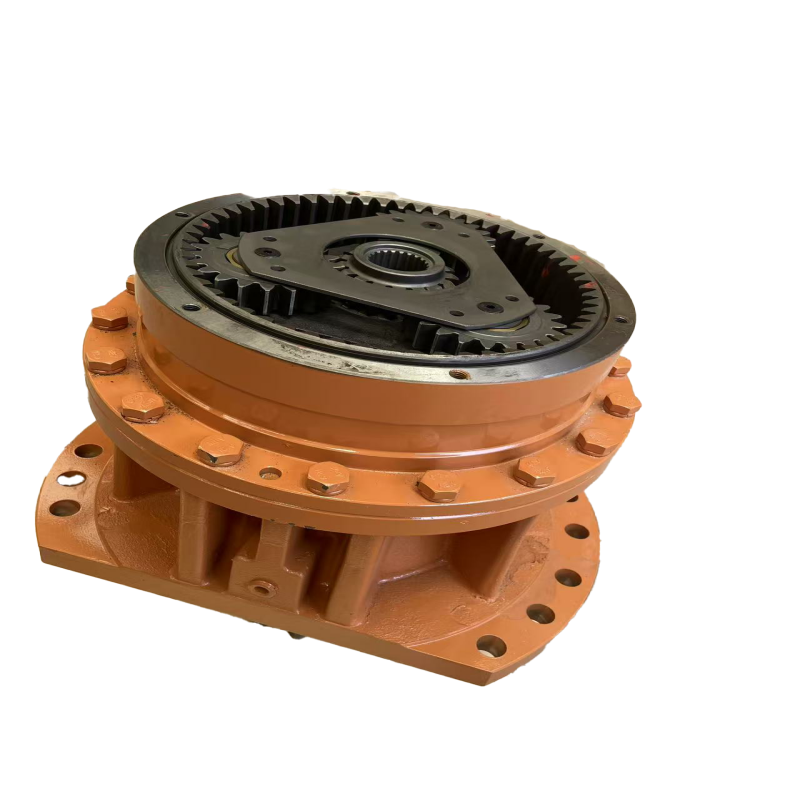

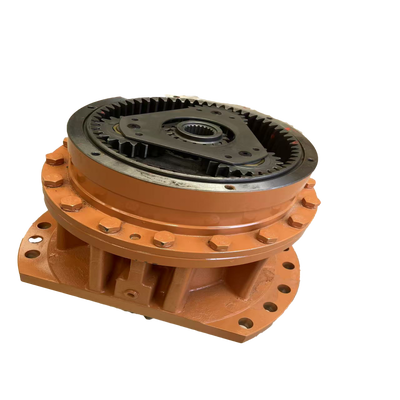

Name: PC200-8 PC220-7 Hydraulic Reduction Gearbox High Torque Swing Reduction Unit
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: PC200-8
Availability: InStock

Home > Products > Swing Motor Gearbox >

PC200-8 PC220-7 Hydraulic Reduction Gearbox High Torque Swing Reduction Unit

PC200-8 Hydraulic Reduction Gearbox

PC220-7 Hydraulic Reduction Gearbox

High Torque Swing Reduction Unit

Place of Origin:

China

Model Number:

PC200-8

Chat Now

Request A Quote

Product Details

Origin:

China

Condition:

All New

Warranty:

3 Months

Catagory:

Excavator Machinery Parts Swing Reducer

Packing:

Carton Box

Machine Model:

PC200-8 PC200-7

Highlight:

PC200-8 Hydraulic Reduction Gearbox

PC220-7 Hydraulic Reduction Gearbox

High Torque Swing Reduction Unit

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-35 days

Payment Terms

T/T

SY335-9 Excavator Swing Gearbox Swing Reducer For SY335 Excavators Swing Motor Gearbox

Chat Now

SY245 Excavator Swing Gearbox Excavator Machinery Parts Swing Reduction Swing Motor Gearbox

Chat Now

PC300-7 PC360-7 Komatsu Gearbox Final Drive Gear Reducer Box

Chat Now

OEM Swing Reduction Gearbox PC200-8 PC220-7 Excavator Reduction Gearbox

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

Excavator Machinery Parts Pc200-8 Pc220-7 Excavator Swing Motor Gearbox Excavator Reduction Excavator

The excavator swing reducer (also known as swing gear reducer) is the core transmission component of the excavator swing mechanism. It adopts a multi-stage planetary gear structure, which converts the high-speed and low-torque output of the swing motor into low-speed and high-torque power to drive the rotation of the upper platform, and integrates braking and load-bearing functions at the same time.

Working Principle and Operation Process
1. Power Input
Operate the slewing handle, and hydraulic oil enters the slewing motor, causing the motor to rotate at a high speed (with high rotational speed but low torque).
2. Multi-stage Deceleration and Torque Increase of Planetary Gears
The slewing motor drives the first-stage sun gear to rotate at a high speed:
• The sun gear drives the surrounding planetary gears to revolve around it.
• The ring gear is fixed, and the planet carrier is driven at a reduced speed.
• Deceleration is performed sequentially through 2 to 3 stages of planetary gears.
• The rotational speed becomes slower and slower, and the torque increases exponentially.
Principle Mnemonic: Small gears drive large gears to reduce rotational speed and increase torque.
3. Driving the Slewing Turntable

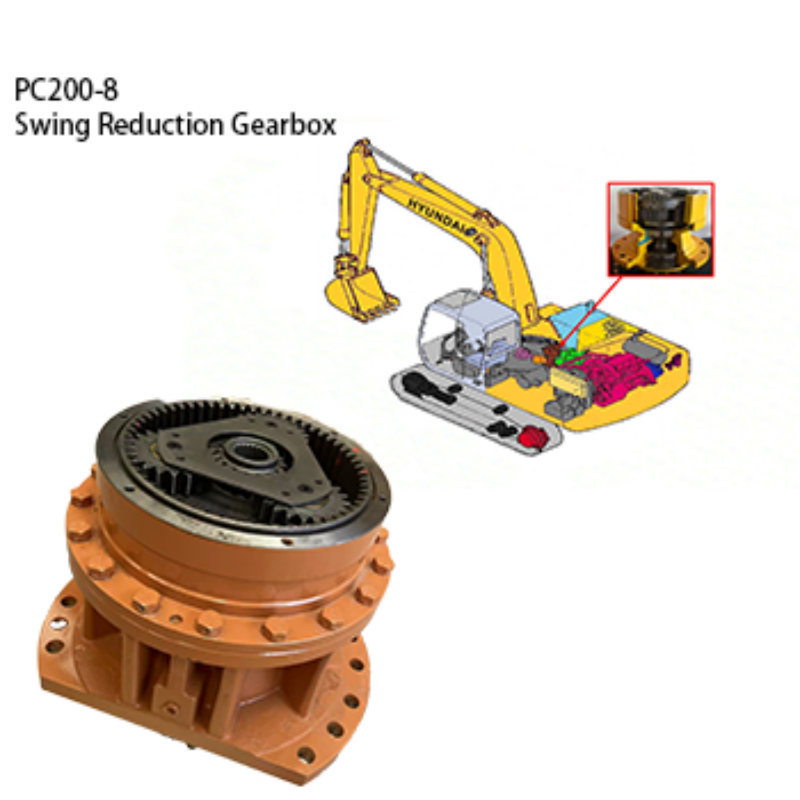

The low-speed and high-torque power after deceleration drives the output pinion at the bottom of the reducer. The pinion meshes with the large gear ring of the slewing bearing, directly driving the upper structure of the excavator to rotate smoothly 360 degrees.
4. Braking Principle (Key Point)
During rotation: Hydraulic oil is supplied to the brake to push the brake pads apart, release the brake, and allow free rotation;
When the handle is released: Hydraulic pressure is relieved, the spring compresses the friction plates, locks the input shaft of the reducer, and the platform stops immediately without inertial rotation or slipping.

Common Faults and Causes
Abnormal noise / Stuttering: Gear wear / pitting corrosion, bearing damage, insufficient oil / dirty oil, abnormal meshing clearance.
Oil leakage: Oil seal aging, housing cracks, excessive oil level, breather valve blockage.
Weak slewing / Slow slewing: Gear / bearing wear, brake failure to release, motor internal leakage, mismatched speed ratio.
Overheating: Insufficient oil / oil deterioration, overload, brake dragging, poor heat dissipation.
Gear jumping / Broken gear teeth: Impact load, foreign matter entry, fatigue wear, installation misalignment.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Part Name	Swing Reduction Assembly
Model	PC200-8	Keyword	Swing Gearbox
MOQ	1 Piece	Quality	Tested Great Performance
Application	Excavator	Delivery time	7-35 Days
Service	Professsional Service	Condition	Brand New
