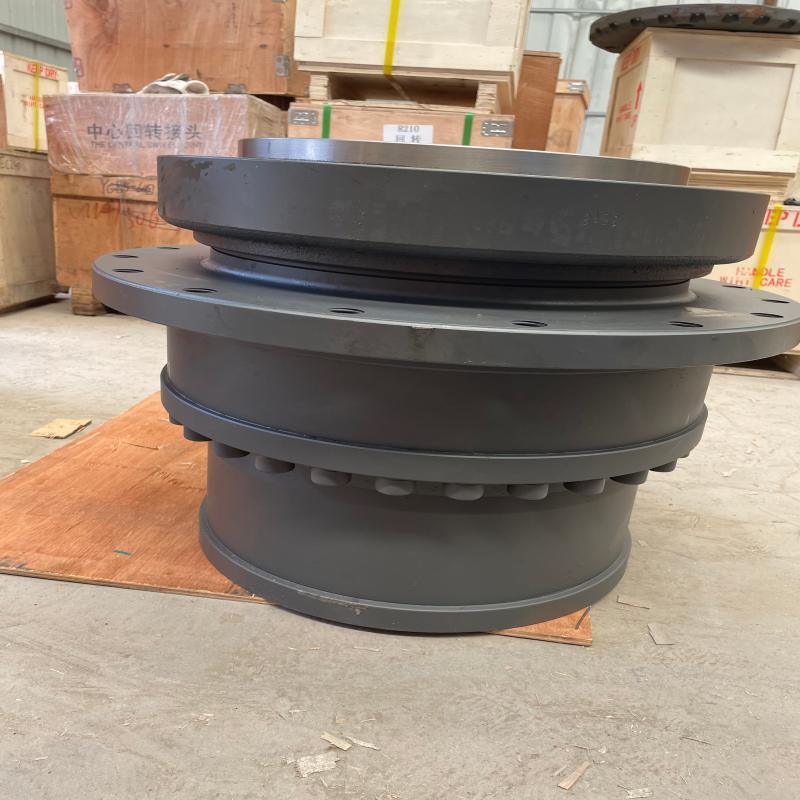

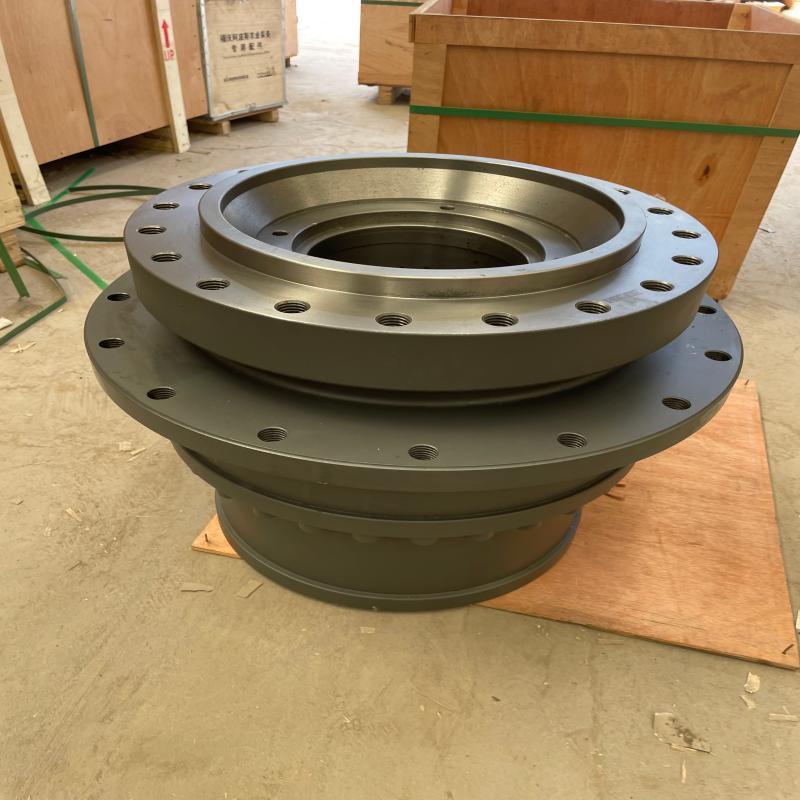

E336D Excavator Travel Reducer Gearbox Planetary Travel Motor Gearbox

E336D Travel Reducer Gearbox Excavator Planetary Gearbox Travel Reduction Travel Motor Gearbox

The travel reducer of an excavator (commonly known as the travel gearbox) is a core transmission component connecting the hydraulic motor to the track drive wheel. It functions to reduce rotational speed and increase torque, providing low-speed and high-torque driving force for the tracks.

Core Structure (Three-stage Planetary Gear)
• Sun Gear: Connected to the input of the hydraulic motor and serves as the power source.
• Planet Gears: 3 to 4 pieces, rotate both around the sun gear and on their own axes to transmit power.
• Ring Gear (Internal Gear Ring): Fixed or floating, meshed with the planet gears.
• Planet Carrier: Outputs power to drive the reducer housing and track drive wheel.
• Housing and Bearings: High-strength housing provides dustproof and leakproof performance; heavy-duty bearings support rotational movement.
• Brake: Built-in multi-disc parking brake, hydraulically released and spring-applied, preventing slope rolling.

Working Principle
The hydraulic motor outputs power with high speed and low torque → feeds into the travel reducer → three-stage planetary gears achieve step-by-step speed reduction → outputs power with low speed and high torque → drives the track for traveling.

Common Faults and Causes
1. Abnormal noise / Excessive noise: Gear wear, bearing damage, insufficient lubricant or deteriorated oil quality.
2. Oil leakage: Aging seals, housing cracks, excessive oil level.
3. Weak travel / Track deviation: Gear or bearing wear, brake failure to release, inconsistent performance between left and right reducers.
4. Overheating: Overload, poor lubrication, insufficient heat dissipation, brake dragging.
5. Gear jumping / Sticking: Broken gear teeth, damaged planet carrier, foreign matter ingress.
