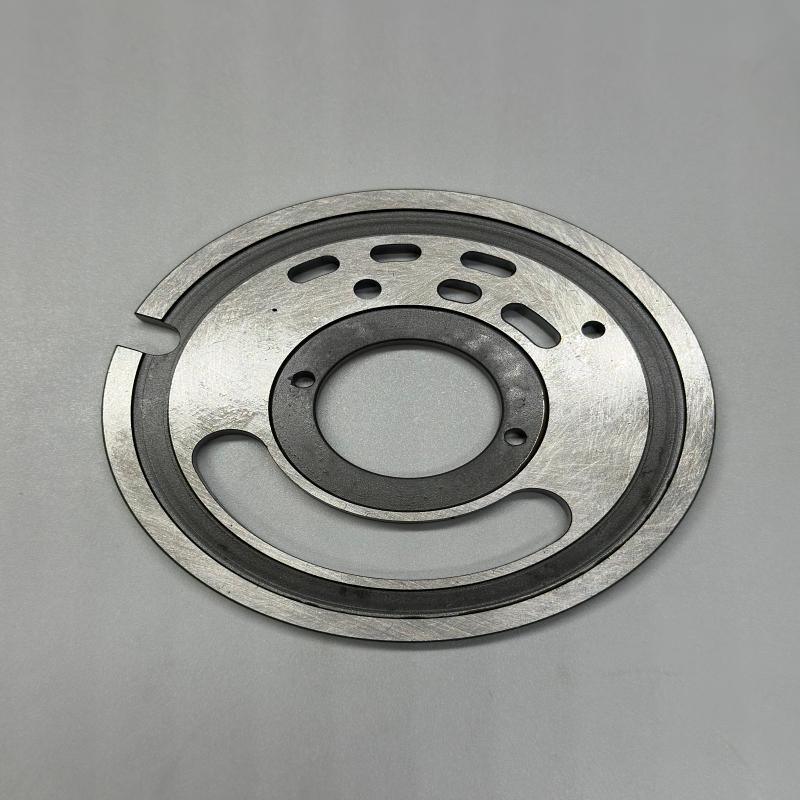

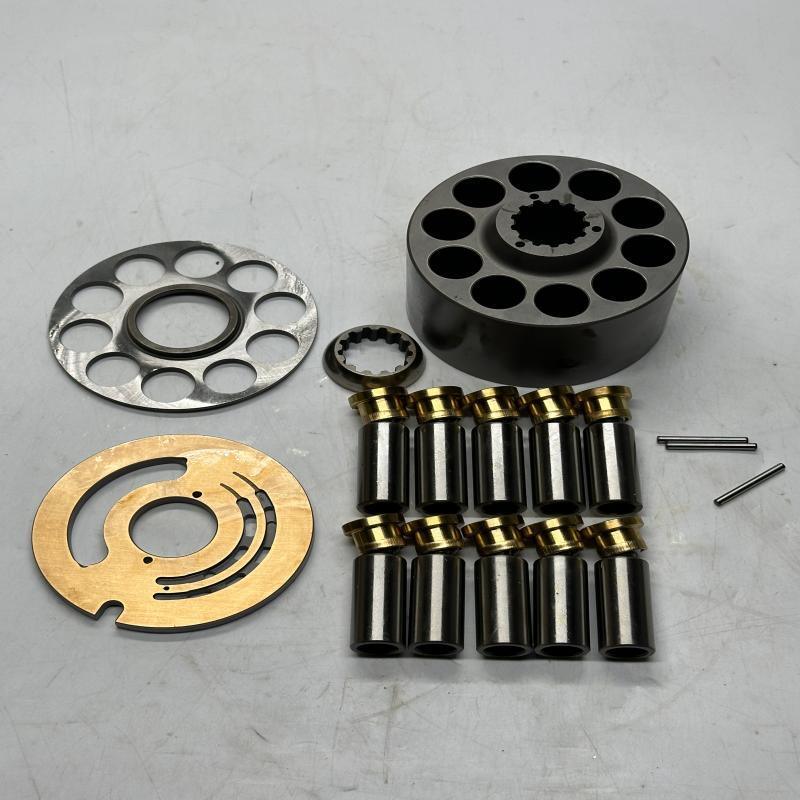

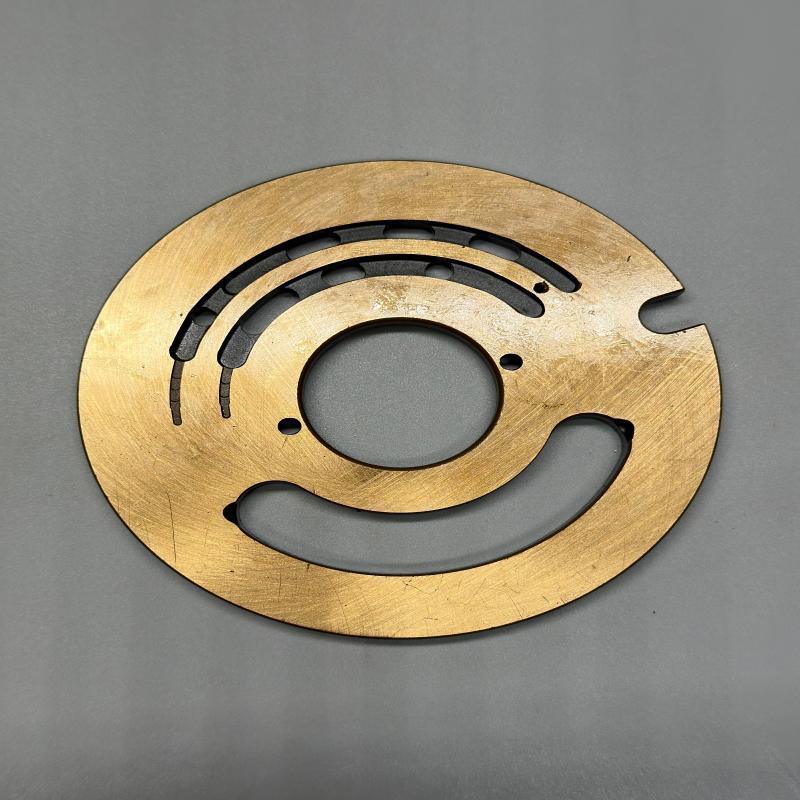

Name: PVD2B17 PVD2B32 PVD2B34 PVD2B36 PVD2B38 PVD2B40 PVD2B42 PVD2B63 Hydraulic Piston Pumps Cast Iron Spare Parts From Manufacturers
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: PVD2B36
Availability: InStock

Home > Products > Excavator Swing Motor >

PVD2B17 PVD2B32 PVD2B34 PVD2B36 PVD2B38 PVD2B40 PVD2B42 PVD2B63 Hydraulic Piston Pumps Cast Iron Spare Parts From Manufacturers

hydraulic piston pumps cast iron

excavator swing motor spare parts

PVD2B hydraulic pumps manufacturers

Place of Origin:

China

Model Number:

PVD2B36

Chat Now

Request A Quote

Product Details

Packing:

Wooden Box

Highlight:

hydraulic piston pumps cast iron

excavator swing motor spare parts

PVD2B hydraulic pumps manufacturers

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-15days

Payment Terms

T/T

DX225LC-9C Swing Motor Repair Parts Cylinder Block Valve Plate Piston for Doosan Excavator Slew Motor Hydraulic Kit

Chat Now

PVD2B17 PVD2B32 PVD2B34 PVD2B36 PVD2B38 PVD2B40 PVD2B42 PVD2B63 Hydraulic Piston Pumps Cast Iron Spare Parts From Manufacturers

Chat Now

Swing Motor M2X Series M2X63 M2X96 M2X120 M5X M5X130 M5X180 Spare Parts Slewing Motor for Excavator Parts

Chat Now

Hydraulic Swing Motor Parts SG02 SG04 SG08 SG12 SG20 SG025 Swing Motor for Excavator Motor Repair Parts

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

PVD2B17 PVD2B32 PVD2B34 PVD2B36 PVD2B38 PVD2B40 PVD2B42 PVD2B63 Hydraulic Piston Pumps Cast Iron Spare Parts From Manufacturers

Function

The hydraulic swing motor constitutes the power core of excavator slewing system. It takes high-pressure hydraulic oil output from main pump as power source, converting hydraulic energy into rotary mechanical torque, and transmits power to swing reducer to drive upper carriage to complete 360° bidirectional rotation relative to undercarriage, meeting construction demands of unloading, stacking and position adjustment.

Structure

Internal assembly is composed of rotary assemblies (piston groups, cylinder block, valve plate, slipper assemblies and pressure plate), integrated wet parking brake unit, anti-reverse drift valve, pressure relief overflow valve and charge one-way valve subassemblies. The matched planetary swing reducer realizes speed reduction and torque rise, outputting large driving torque to adapt to heavy-load slewing working scenarios. The built-in brake piston and friction disc assembly automatically locks rotation position when hydraulic control oil supply is cut off.

Working Principle

When swing pilot handle is operated, pilot pressure oil pushes brake spool to release parking brake constraint. Alternating high-pressure oil entering two motor service ports drives pistons to reciprocate linearly inside cylinder block; valve plate separates high-pressure inlet and low-pressure outlet passages continuously to drive rotary group and output shaft rotation. Anti-recoil balancing valve balances residual back pressure on oil return side, preventing upper structure reverse drifting caused by rotational inertia after operation shutdown. Overflow valve limits system peak pressure to protect internal precision components, while charge check valve supplements low-pressure oil to restrain internal cavitation generation.

Common Failures

Worn pistons, abraded valve plate sealing surface or burnt slippers induce severe internal leakage, resulting in insufficient slewing power, low rotating speed and slow stop response. Over-worn brake friction discs, fatigued brake springs or jammed brake spools cause incomplete brake release, bringing large rotation resistance, slewing jitter or parking slipping failure. Failed anti-drift balancing valve leads to obvious backward rotation after swing stop. Serious internal leakage produces heat from pressure loss and abnormal hydraulic oil temperature rise; damaged bearings or internal metal contaminants generate abnormal knocking noise during motor running. Aging external seals cause outward hydraulic oil seepage.

Maintenance

Conduct routine inspection on motor housing, sealing positions and pipeline joints for oil leakage traces. Periodically replace hydraulic oil and filter elements to prevent particle abrasion of internal precision matching surfaces. Regularly measure brake clearance and friction plate wear, replace brake consumables when wear exceeds specified limit. Ensure drain oil pipeline unobstructed to avoid excessive casing pressure accumulation. Periodically test operating state of charge valve and overflow valve, clean or replace stuck valve spools to guarantee stable and smooth slewing performance and reliable parking braking effect.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Swing Motor
Model	PVD2B36	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Packing	Wooden Box
