Name: HPV102 Hydraulic Main Pump ZX200 ZX220 Excavator Parts Construction Machinery Parts
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: HPV102
Availability: InStock

Home > Products > Hydraulic Main Pump >

HPV102 Hydraulic Main Pump ZX200 ZX220 Excavator Parts Construction Machinery Parts

ZX200 hydraulic main pump

ZX220 excavator hydraulic pump

construction machinery hydraulic pump

Place of Origin:

China

Model Number:

HPV102

Chat Now

Request A Quote

Product Details

Color:

Black

Highlight:

ZX200 hydraulic main pump

ZX220 excavator hydraulic pump

construction machinery hydraulic pump

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-15days

Payment Terms

T/T

Excavator Parts A10VO45DFLR 53R-VUC62N00 -S3042 R902502504 Hydraulic Piston Pumps OEM Brand Guangdong Origin for XE26 XE35

Chat Now

Hydraulic Pump PVD-1B-28P-8AG4 4331671 4358274 4399045 Hydraulic Piston Pump for EX30 Cx26c Excavator Main Pump

Chat Now

PVD-0B-18B-6AG3-4950A 20400006 Hydraulic Pump for Excavator Small Piston Hydraulic Pump Construction Machinery Parts

Chat Now

PVD-0B-21P-6G3 Hydraulic Pump RB411-61113 RB411-61110 for Kubota U20-5 Mini Excavator Hydraulic Piston Pump

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

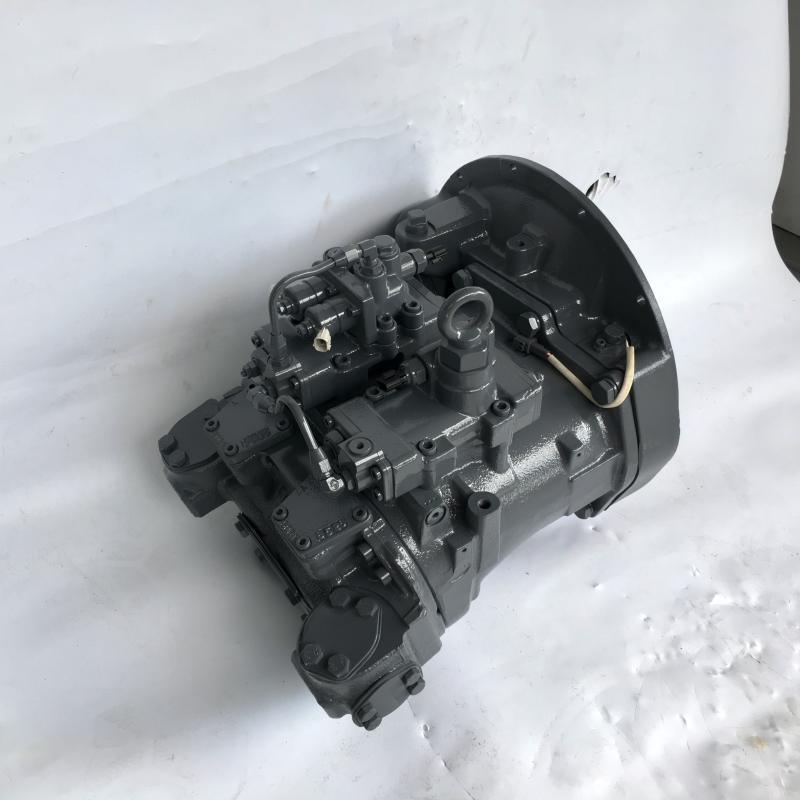

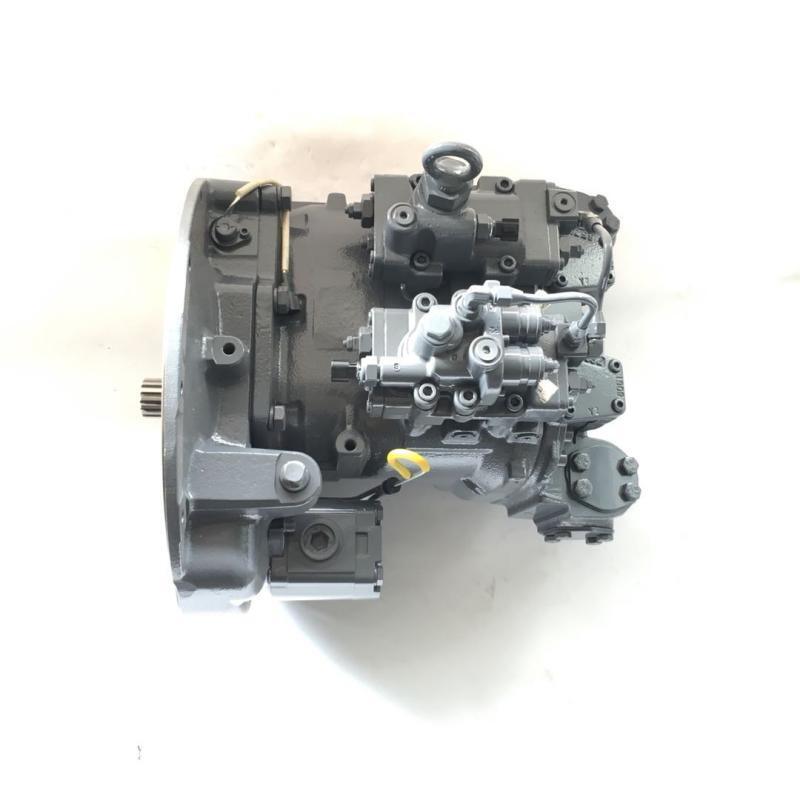

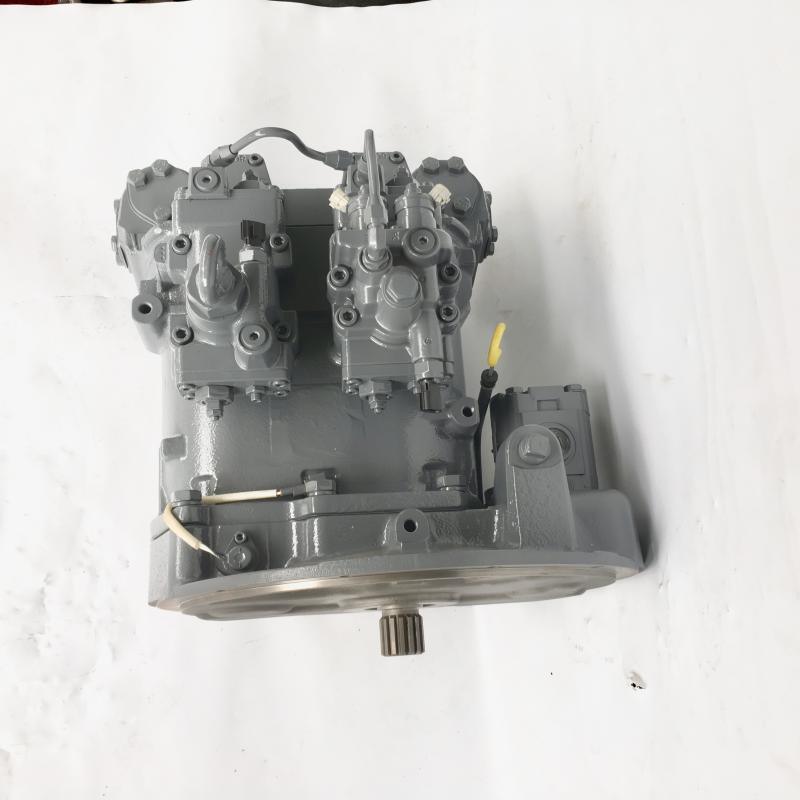

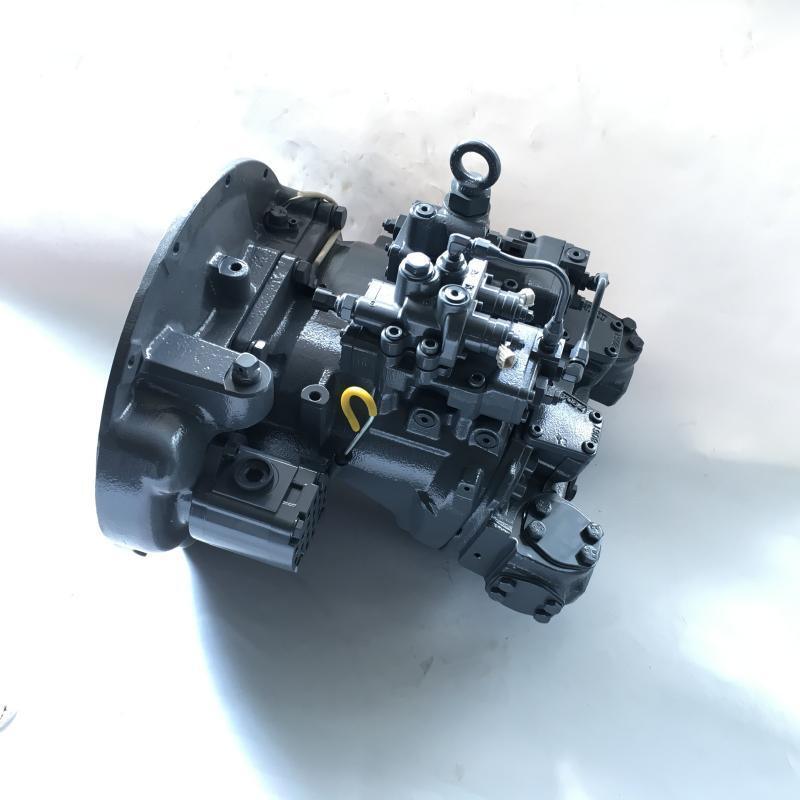

HPV102 Hydraulic Main Pump ZX200 ZX220 Excavator Parts Construction Machinery Parts

Serving as the central power component of the excavator hydraulic circuit, the main hydraulic pump receives power from the engine to convert mechanical energy into high-pressure hydraulic energy. It conveys pressurized hydraulic fluid to hydraulic motors to drive all working actions of the excavator. Most engineering excavators are outfitted with axial variable displacement piston pumps. Medium and large construction machines adopt an integrated structure of twin main pumps and a rear pilot gear pump assembly. Two individual high-pressure oil supply lines supply fluid to the main control valve, enabling compound working movements, with a standard working pressure of 28 to 35MPa. The low-pressure pilot pump mounted at the machine tail works at 3–4MPa with low flow output, offering pilot pressure oil for control lever and main valve spool operation. Inside the pump body, piston assemblies installed on the cylinder block and pump shell rotate with the main shaft, finishing the processes of oil suction and pressurization. Adjustments to the swash plate’s tilt angle change piston stroke, which directly modulates pump displacement. The external servo regulator controls swash plate movement according to hydraulic feedback. A larger swash plate angle increases fluid flow and operating speed, whereas a smaller angle reduces fuel usage and prevents engine shutdown under load. The valve plate separates low-pressure inlet and high-pressure outlet channels to complete hydraulic oil distribution work. The pump is equipped with three core control modes. Constant power control lowers pump displacement automatically under growing loads, protecting the engine and boosting power utilization efficiency. The LS load-sensing system supplies fluid flow based on actual working demands and maintains low displacement at idle status to achieve fuel savings. The HP pressure limiting function cuts down pump displacement when pressure reaches the peak value, protecting hydraulic pipelines and cylinders from rupture. Common operational failures include internal leakage caused by worn pistons, broken valve plates or blocked regulators, resulting in slow machine movement and insufficient power output. A locked regulator at maximum displacement will cause engine overload, black smoke exhaust and stalling during heavy-load operation. Excessive internal leakage turns pressure loss into heat, leading to abnormal hydraulic oil temperature rise. Air suction into the system, insufficient hydraulic oil volume, and damaged bearings or pistons will generate abnormal running noise. Daily maintenance requires regular replacement of hydraulic oil and filters to avoid wear on precision internal components. It is necessary to ensure good tightness of suction pipelines to prevent air ingestion and machine vibration, and keep hydraulic oil at the prescribed level to maintain stable pump working performance.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	HPV102	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Color	Black

HPV102 Hydraulic Main Pump ZX200 ZX220 Excavator Parts Construction Machinery Parts 0 Company Profile
