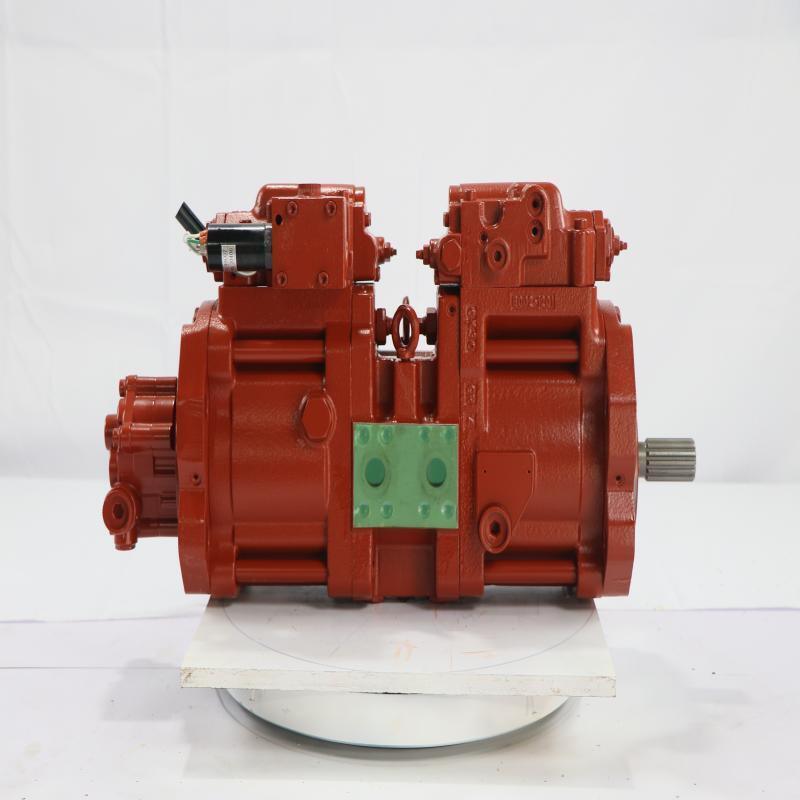

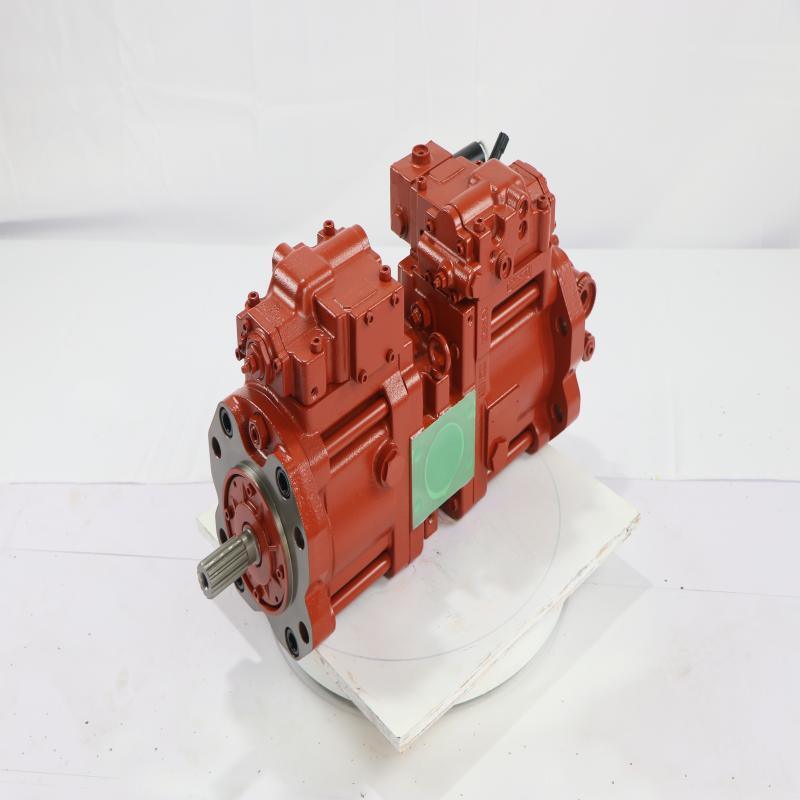

Name: K3V63DT - 9C22 - 14T Hydraulic Pump R130 - 5 R150 - 7 for Excavators Metal Excavator Main Pump Construction Machinery Parts
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: K3V63DT - 9C22 - 14T
Availability: InStock

Home > Products > Hydraulic Main Pump >

K3V63DT - 9C22 - 14T Hydraulic Pump R130 - 5 R150 - 7 for Excavators Metal Excavator Main Pump Construction Machinery Parts

Hydraulic Pump for Excavators R130-5

Excavator Main Pump R150-7

Construction Machinery Hydraulic Pump

Place of Origin:

China

Model Number:

K3V63DT - 9C22 - 14T

Chat Now

Request A Quote

Product Details

Color:

Red

Highlight:

Hydraulic Pump for Excavators R130-5

Excavator Main Pump R150-7

Construction Machinery Hydraulic Pump

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-15days

Excavator Parts A10VO45DFLR 53R-VUC62N00 -S3042 R902502504 Hydraulic Piston Pumps OEM Brand Guangdong Origin for XE26 XE35

Chat Now

Hydraulic Pump PVD-1B-28P-8AG4 4331671 4358274 4399045 Hydraulic Piston Pump for EX30 Cx26c Excavator Main Pump

Chat Now

PVD-0B-18B-6AG3-4950A 20400006 Hydraulic Pump for Excavator Small Piston Hydraulic Pump Construction Machinery Parts

Chat Now

PVD-0B-21P-6G3 Hydraulic Pump RB411-61113 RB411-61110 for Kubota U20-5 Mini Excavator Hydraulic Piston Pump

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

K3V63DT - 9C22 - 14T Hydraulic Pump R130 - 5 R150 - 7 for Excavators Metal Excavator Main Pump Construction Machinery Parts

Function

The hydraulic main pump constitutes the key power unit inside excavator hydraulic systems. Driven by the prime mover engine, it converts mechanical energy into high-pressure hydraulic energy and routes pressurized working fluid to all executive hydraulic motors to power digging, traveling and slewing motions.

Type

Axial variable piston pumps see widespread deployment on engineering excavators. Large and medium-sized excavators adopt an integrated dual main pump assembly paired with a trailing pilot gear pump.
These dual high-pressure pumps come with isolated oil supply passages, feeding fluid into the main control valve for simultaneous compound actions, operating pressure: 28~35MPa.
The low-pressure pilot pump installed at the pump tail operates at 3–4MPa with low delivery volume, providing pilot control pressure for operating joysticks and main valve spools.

Internal Parts

The pump housing and cylinder block accommodate multiple piston groups that rotate together with the main shaft to complete oil suction and pressurization procedures.
Swash plate angle variation changes piston travel distance, regulating overall pump displacement.
Controlled by hydraulic feedback signals, the external servo regulator manipulates swash plate angle. Greater inclination raises flow and operating speed; smaller inclination reduces fuel usage and prevents engine stall.
The valve plate isolates inlet low-pressure oil and outlet high-pressure oil to implement fluid distribution.

Three Control Modes

Constant power regulation lowers pump displacement automatically as load grows, protecting the engine and enabling full utilization of rated power.
The LS load-sensing system delivers flow on demand, sustaining low displacement at idle status to save fuel costs.
When system pressure reaches peak value, the HP pressure limiting function reduces pump displacement to protect hydraulic piping and cylinders from rupture failure.

Common Failures

Internal leakage stemming from worn pistons, defective valve plates or clogged regulators leads to slow machine response and insufficient power supply.
If the regulator locks in maximum displacement position, the engine will overload, emit black smoke and stall under heavy loads.
Excessive internal leakage generates thermal energy from pressure loss, causing abnormal temperature rise of hydraulic oil.
Air mixing in oil, low fluid level or defective bearings and pistons produce unusual running noise.

Maintenance

Replace hydraulic oil and filter elements at scheduled intervals to prevent abrasion damage to precision parts. Ensure suction pipeline sealing performance to avoid air intake and equipment shaking. Maintain hydraulic liquid at standard height to prevent pump malfunctions.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	K3V63DT - 9C22- 14T	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Color	Black

K3V63DT - 9C22 - 14T Hydraulic Pump R130 - 5 R150 - 7 for Excavators Metal Excavator Main Pump Construction Machinery Parts 0
