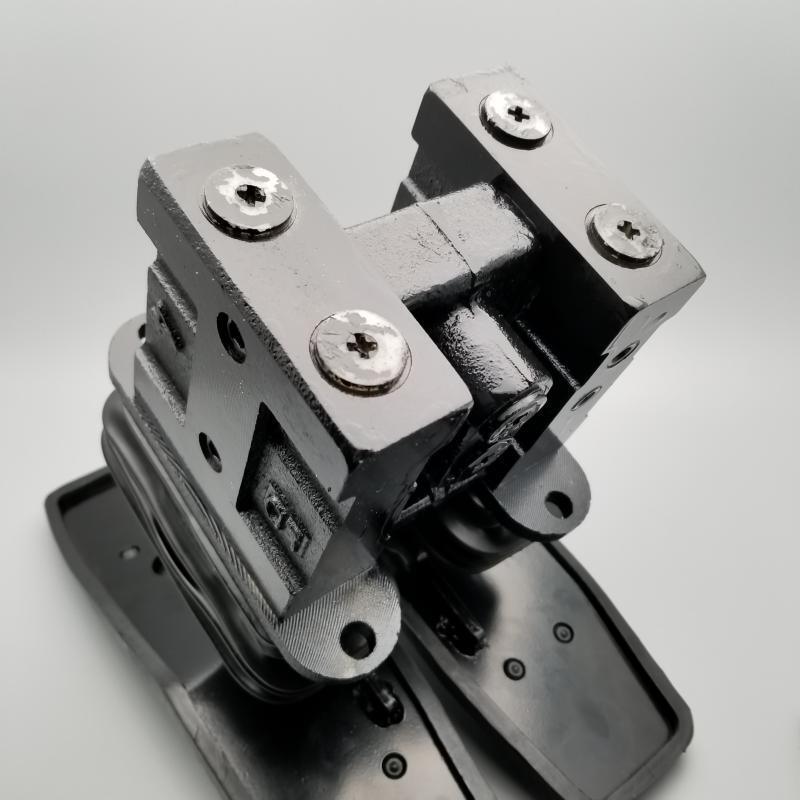

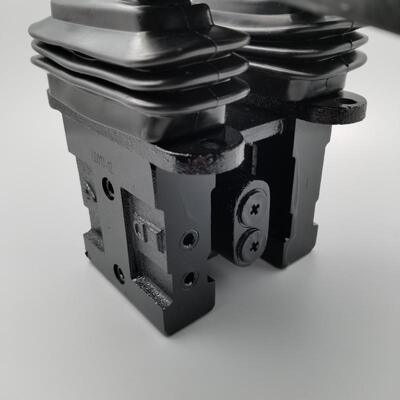

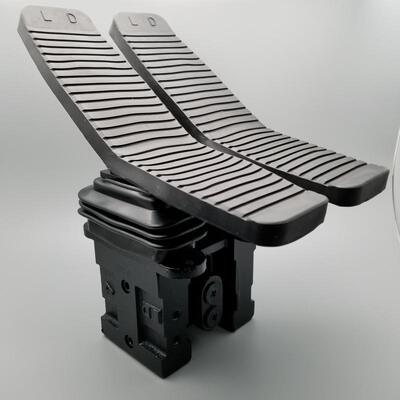

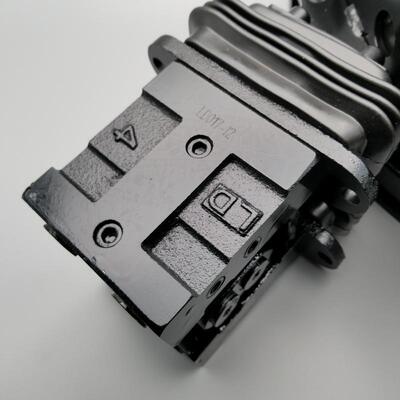

Komatsu Excavator Foot Pedal Valve LD017-12 Foot Pedal Control Valve

Hydraulic Foot Pedal Valve LD017-12 Pump Control Valve Lever Assy Komatsu Excavator Machinery Parts

DescriptionMounted on the cab floor, the travel foot‑pedal control valve assembly is a pilot hydraulic control device operated by foot. It handles machine travel and breaker functions, enabling optimized labor allocation where hands control main joysticks and feet take charge of auxiliary operations.
Core Functions
• Travel Control (Most Widely Used): Left and right pedals control respective left‑right tracks. Pedal depression drives forward/backward movement, and pressing depth adjusts travel speed.
• Attachment Operation Control: Switches and regulates working attachments including breakers, quick couplers and hydraulic cutting shears.
• Auxiliary Movement Control: For some excavator models, it fine‑adjusts boom and stick motions or cooperates with joysticks for compound actions.
• Safety Neutral Reset: Springs return the pedal to neutral upon release, shutting off pilot pressure to prevent accidental machine startup.
Working Principle
• As a pilot signal valve, it does not directly actuate motors but outputs minor hydraulic pressure signals.
• When not stepped on: Neutral position maintained automatically, no pressure output and machine stays still.
• When stepped on: Spool shifts to transmit hydraulic signals to the main multi‑way valve for travel motor control.
• When released: Spring resets the valve instantly to stop corresponding movements.
Common Faults
• Track deviation: Internal leakage or spool seizure in one pedal valve
• Pedal stuck without return: Damaged spring or blocked spool
• Insufficient travel power: Inadequate pilot pressure or worn valve parts
• Oil seepage: Deteriorated seals or valve body damage
