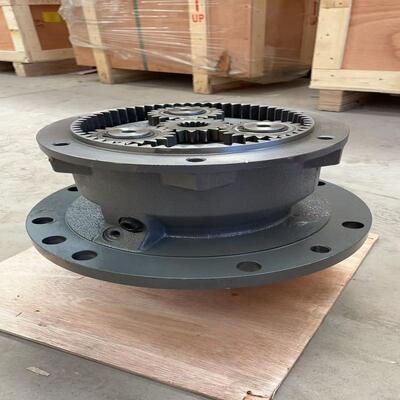

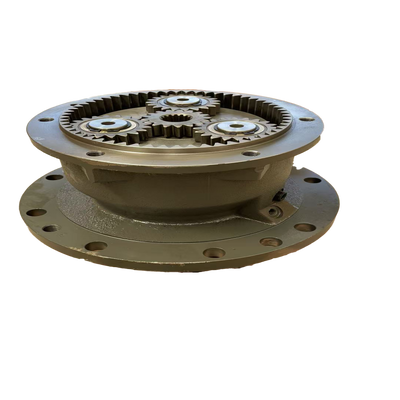

Name: High Precision Swing Motor Gearbox DX80 Hydraulic Motor Reduction Gearbox
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: DX80
Availability: InStock

Home > Products > Swing Motor Gearbox >

High Precision Swing Motor Gearbox DX80 Hydraulic Motor Reduction Gearbox

High Precision Swing Motor Gearbox

DX80 Hydraulic Motor Reduction Gearbox

High Precision Hydraulic Motor Reduction Gearbox

Place of Origin:

China

Model Number:

DX80

Chat Now

Request A Quote

Product Details

Product Name:

Swing Motor Gearbox

Lubrication:

Grease Or Oil Lubrication

Packing:

Carton

Geartype:

Planetary Gear

Application:

Excavator

Model:

DX80

Highlight:

High Precision Swing Motor Gearbox

DX80 Hydraulic Motor Reduction Gearbox

High Precision Hydraulic Motor Reduction Gearbox

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

5-7 Days

Payment Terms

T/T

SY335-9 Excavator Swing Gearbox Swing Reducer For SY335 Excavators Swing Motor Gearbox

Chat Now

SY245 Excavator Swing Gearbox Excavator Machinery Parts Swing Reduction Swing Motor Gearbox

Chat Now

PC300-7 PC360-7 Komatsu Gearbox Final Drive Gear Reducer Box

Chat Now

OEM Swing Reduction Gearbox PC200-8 PC220-7 Excavator Reduction Gearbox

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

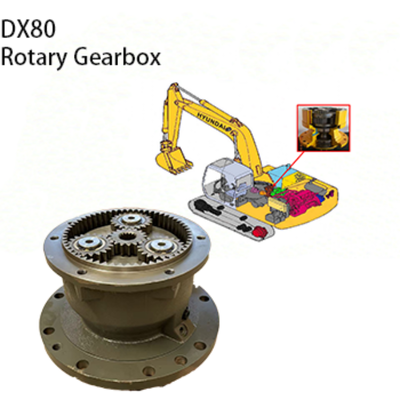

Excavator Swing Drive Motor DX80 Hydraulic Swing Reduction Assembly Gearbox

As a key transmission component, the swing reducer (commonly called swing gearbox) of an excavator links the slewing motor to the large slewing gear ring. Its core purpose is to lower speed and raise torque, achieving smooth full‑circle 360° rotation of the upper structure.

Main Structural Layout

Sun Gear: Matched with slewing motor splines, it imports high‑speed power energy.
Planet Gears: 3‑4 gears for every stage, rotating circumferentially around and axially on the sun gear for torque transmission.
Ring Gear: Permanently fixed to the housing and meshes with the planet gear assembly.
Planet Carrier: Provides power output to drive the lower small driving pinion.
Brake: Built‑in wet multi‑disc braking unit, spring‑activated engagement and hydraulic‑driven release, preventing backward rotational movement.
Housing & Bearings: High‑strength cast/forged steel housing structure, supported by heavy‑duty bearings, dust‑resistant and leakage‑preventive.

Power with high rotational speed and low torque from the hydraulic motor is conveyed via the sun gear, first‑stage and second‑stage planetary gear groups to the output planet carrier. The pinion gear rotates slowly with high torque output, meshing with the inner gear ring of the slewing bearing to drive upper‑body slewing movement.

Typical Malfunction Types & Root Causes

Irregular noise / Stuttering operation status: Gear surface wear and pitting defects, bearing functional failure, inadequate or polluted lubrication medium, improper meshing clearance of gears.
Oil infiltration and leakage failures: Worn oil seal components, housing crack damages, overfilled lubricant level height, clogged ventilation breather port.
Torpid or insufficient‑power slewing performance: Worn gear and bearing components, incomplete brake release mechanism, hydraulic motor internal leakage bypass, mismatched reduction transmission ratio.
Excessive temperature rise condition: Low oil content or degraded lubricant properties, overload working operation, brake drag resistance friction, insufficient heat emission efficiency.
Gear slipping / Tooth breakage failures: Sudden impact loading forces, foreign object intrusion into gearbox, fatigue‑caused deterioration wear, shaft alignment deviation during assembly procedure.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Part Name	Swing Reduction Assembly
Model	DX75 DX80	Keyword	Swing Gearbox
MOQ	1 Piece	Quality	Tested Great Performance
Application	Excavator	Delivery Time	7-35 Days
Service	Professsional Service	Condition	Brand New
