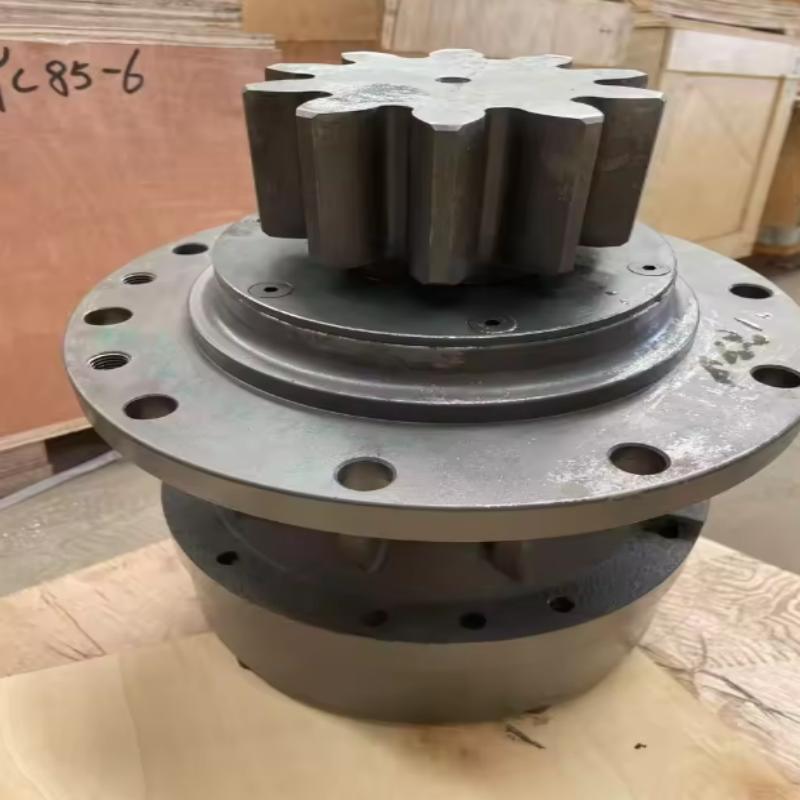

Name: High Torque Slew Drive Gearbox Doosan DH150 DH130-5 Motor Reduction Gear
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: DH150
Availability: InStock

Home > Products > Swing Motor Gearbox >

High Torque Slew Drive Gearbox Doosan DH150 DH130-5 Motor Reduction Gear

High Torque Slew Drive Gearbox

DH150 Motor Reduction Gear

DH130-5 Motor Reduction Gear

Place of Origin:

China

Model Number:

DH150

Chat Now

Request A Quote

Product Details

Highlight:

High Torque Slew Drive Gearbox

DH150 Motor Reduction Gear

DH130-5 Motor Reduction Gear

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

5-15 days

Payment Terms

T/T

SY335-9 Excavator Swing Gearbox Swing Reducer For SY335 Excavators Swing Motor Gearbox

Chat Now

SY245 Excavator Swing Gearbox Excavator Machinery Parts Swing Reduction Swing Motor Gearbox

Chat Now

PC300-7 PC360-7 Komatsu Gearbox Final Drive Gear Reducer Box

Chat Now

OEM Swing Reduction Gearbox PC200-8 PC220-7 Excavator Reduction Gearbox

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

DH150 Swing Motor Gearbox Assembly High Torque Reduction Gear for Doosan DH150 DH130-5 Excavator Replacement Components

Deliver Unmatched Power Transmission and Reliability with Our DH150 Final Drive Swing Reduction Gearbox Assembly. This premium-quality planetary gear system is specifically engineered for Doosan and Daewoo DH150 series excavators, providing consistent high-torque output and smooth slewing operation that keeps your construction projects moving efficiently. Designed to meet OEM standards, our final drive assembly serves equipment owners, rental companies, and maintenance professionals across North and South America who require dependable solutions for their heavy machinery fleets.

The swing reducer of excavators, widely known as the swing gearbox, is a crucial transmission component that connects the slewing drive motor to the large slewing gear ring. Its main function is speed reduction and torque increase, enabling the upper superstructure to perform smooth 360‑degree rotational movement.

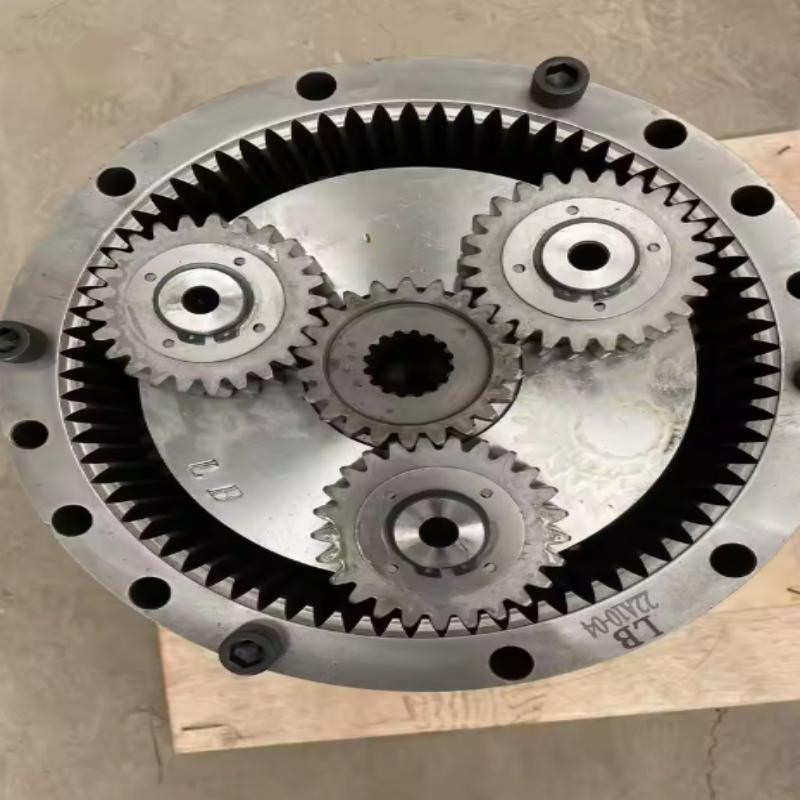

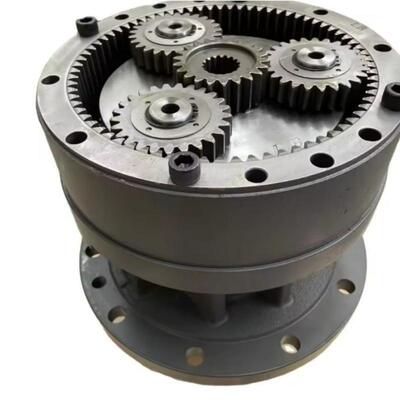

Primary Structure

Sun Gear: Joined to the slewing motor splines, it inputs high‑speed power source.
Planet Gears: 3‑4 pieces per stage, orbiting the sun gear while self‑rotating to transmit torque force.
Ring Gear: Mounted fixedly on the housing and meshes with planet gear sets.
Planet Carrier: Delivers output power to drive the bottom small drive gear.
Brake: Internally installed wet multi‑disc brake, spring‑engaged and hydraulically released, preventing reverse rotation phenomenon.
Housing & Bearings: High‑strength cast or forged steel casing, supported by heavy‑duty load‑bearing bearings, with dustproof and anti‑leakage properties.

Low‑torque high‑speed power supplied by the hydraulic motor is transmitted sequentially through the sun gear, first‑stage planetary group and second‑stage planetary group to the output planet carrier. The pinion rotates in low‑speed high‑torque state, meshing with the inner gear ring of the slewing bearing to drive upper‑structure slewing.

Usual Fault Conditions & Core Causes

Unconventional noise / Jerky operational motion: Gear wear and pitting corrosion defects, bearing damage failure, insufficient or impurity‑containing lubricant, inappropriate gear meshing gap.
Oil permeation and leakage issues: Degraded oil seals, housing crack defects, excessive lubricant filling amount, clogged air‑vent hole.
Sluggish or power‑deficient slewing performance: Worn gears or bearing assemblies, incomplete brake release function, hydraulic motor internal flow bypass, mismatched reduction ratio.
Excessive thermal buildup: Deficient oil level or deteriorated lubricant performance, overload operating mode, brake dragging friction, inadequate heat radiation capacity.
Gear jumping / Tooth breakage accidents: Impact‑induced loads, foreign particle entry into components, fatigue degradation wear, shaft misalignment during assembly process.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Excavator Final Drive
Product description	Swing Reduction Gearbox	Color	Black
Condition	Brand New	Quality	OEM Standard
MOQ	1 PC	Model Number	DH150
Application	Excavator	Delivery time	5-7 Days
