Name: DX200LC-9C DX220-A 400914-00520E Excavator Hydraulic Piston Pump Excavator Hydraulic Main Pump Hydraulic Pump Assembly Construction Machinery Parts
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: DX200 - 9
Availability: InStock

Home > Products > Hydraulic Main Pump >

DX200LC-9C DX220-A 400914-00520E Excavator Hydraulic Piston Pump Excavator Hydraulic Main Pump Hydraulic Pump Assembly Construction Machinery Parts

DX200LC-9C excavator hydraulic piston pump

DX220-A hydraulic main pump assembly

construction machinery hydraulic pump parts

Place of Origin:

China

Model Number:

DX200 - 9

Chat Now

Request A Quote

Product Details

Color:

Grey

Highlight:

DX200LC-9C excavator hydraulic piston pump

DX220-A hydraulic main pump assembly

construction machinery hydraulic pump parts

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-15days

Payment Terms

T/T

Excavator Parts A10VO45DFLR 53R-VUC62N00 -S3042 R902502504 Hydraulic Piston Pumps OEM Brand Guangdong Origin for XE26 XE35

Chat Now

Hydraulic Pump PVD-1B-28P-8AG4 4331671 4358274 4399045 Hydraulic Piston Pump for EX30 Cx26c Excavator Main Pump

Chat Now

PVD-0B-18B-6AG3-4950A 20400006 Hydraulic Pump for Excavator Small Piston Hydraulic Pump Construction Machinery Parts

Chat Now

PVD-0B-21P-6G3 Hydraulic Pump RB411-61113 RB411-61110 for Kubota U20-5 Mini Excavator Hydraulic Piston Pump

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

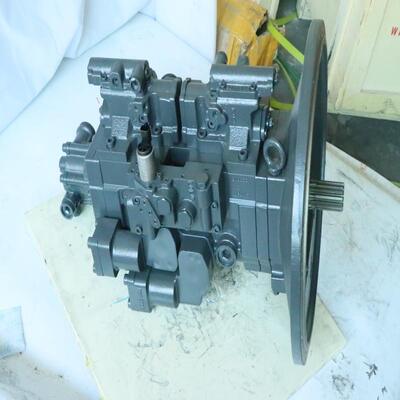

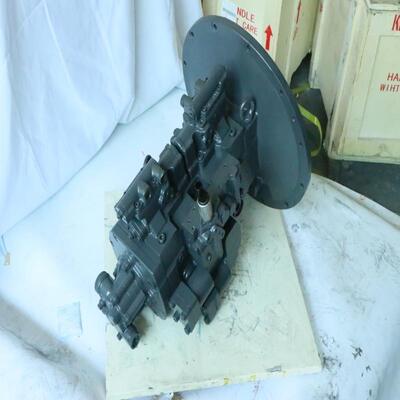

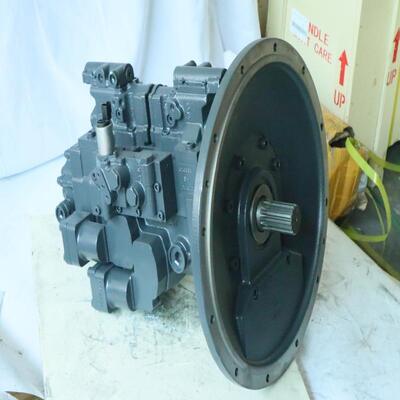

DX200LC-9C DX220-A 400914-00520E Excavator Hydraulic Piston Pump Excavator Hydraulic Main Pump Hydraulic Pump Assembly Construction Machinery Parts

Serving as the primary power unit of excavator hydraulic circuits, the main hydraulic pump is engine-driven to transform mechanical energy into high-pressure hydraulic energy. It supplies pressurized hydraulic fluid to hydraulic motors to drive all operational movements of the excavator. Engineering excavation machines mostly utilize axial variable displacement piston pumps as their main hydraulic pumping units. Medium and large construction machinery adopts an integrated dual main pump system combined with a rear pilot gear pump module. Two individual high-pressure oil supply pipelines convey fluid to the main control valve to achieve compound working actions, with a standard working pressure of 28–35MPa. The tail-mounted low-pressure pilot pump runs at 3 to 4MPa with low flow output, offering pilot pressure oil for control lever and main valve spool actuation. Inside the pump, piston assemblies mounted on the cylinder block and pump housing rotate synchronously with the main shaft, finishing oil suction and pressure build-up cycles. Swash plate angle adjustment changes piston stroke, thereby modifying the pump’s displacement capability. The external servo regulator controls swash plate movement based on hydraulic feedback signals. An enlarged swash plate angle increases fluid flow rate and operation speed, whereas a reduced angle lowers fuel consumption and prevents engine stalling. The valve plate segregates low-pressure inlet and high-pressure outlet channels to complete hydraulic oil distribution work. The pump is configured with three intelligent control modes. Constant power control automatically cuts pump displacement under increased load conditions, protecting the engine and enhancing power utilization rates. The LS load-sensing system provides on-demand fluid supply and maintains low displacement at idle status to realize fuel-saving effects. The HP pressure limiting function reduces pump displacement when pressure reaches the maximum threshold, preventing hydraulic pipelines and cylinders from cracking damage. Typical equipment failures include internal leakage resulting from piston abrasion, valve plate damage or regulator blockage, which leads to slow machine operation and insufficient power output. A regulator fixed at maximum displacement will cause engine overload, black smoke exhaust and stalling during heavy-load operation. Severe internal leakage converts hydraulic pressure loss into heat energy, triggering abnormal overheating of hydraulic oil. Hydraulic system air ingress, insufficient oil volume, and damaged bearings or pistons will induce abnormal operating noise. Regular maintenance demands timely replacement of hydraulic oil and filters to avoid wear on precision internal pump parts. Tight sealing of suction pipelines must be ensured to prevent air inhalation and equipment vibration, and hydraulic oil levels must meet specified standards to maintain stable pump working efficiency.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	K3V63DT-9N14T	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Color	Grey

DX200LC-9C DX220-A 400914-00520E Excavator Hydraulic Piston Pump Excavator Hydraulic Main Pump Hydraulic Pump Assembly Construction Machinery Parts 0 Company Profile
