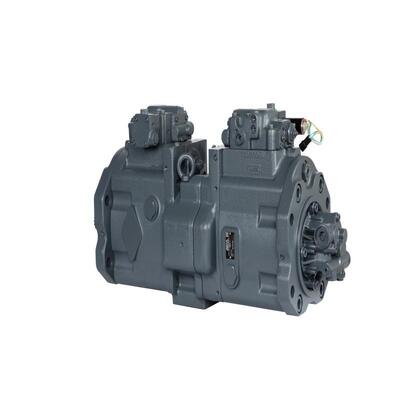

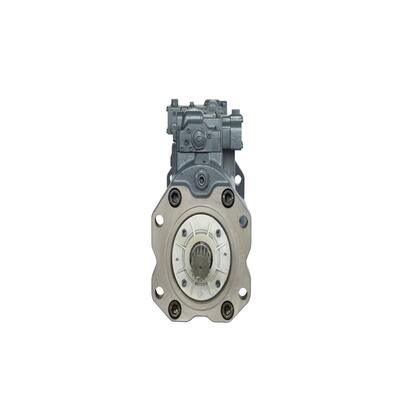

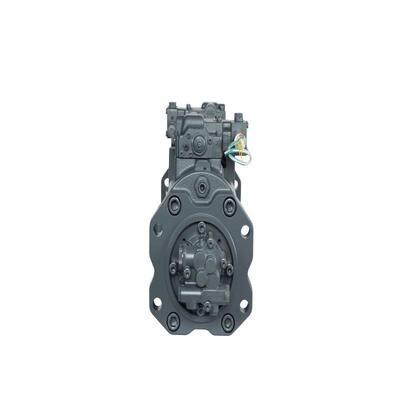

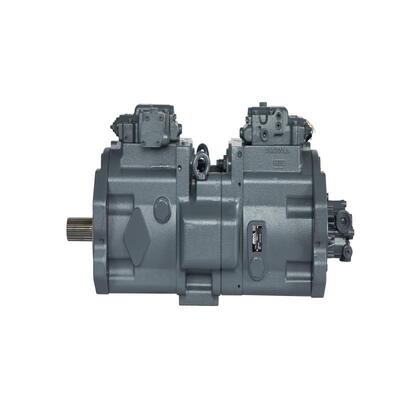

Name: Excavator Parts K5V200DTH-9N1H Hydraulic Main Pump SY335 DH400 DH420LC-7 Hydraulic Pump
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: K5V200DTH-9N1H
Availability: InStock

Home > Products > Hydraulic Main Pump >

Excavator Parts K5V200DTH-9N1H Hydraulic Main Pump SY335 DH400 DH420LC-7 Hydraulic Pump

Excavator hydraulic main pump

K5V200DTH-9N1H hydraulic pump

SY335 hydraulic pump

Place of Origin:

China

Model Number:

K5V200DTH-9N1H

Chat Now

Request A Quote

Product Details

Color:

Gray

Application:

SY335

Selling Units:

Single Item

Highlight:

Excavator hydraulic main pump

K5V200DTH-9N1H hydraulic pump

SY335 hydraulic pump

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

3-15days

Payment Terms

T/T

Excavator Parts A10VO45DFLR 53R-VUC62N00 -S3042 R902502504 Hydraulic Piston Pumps OEM Brand Guangdong Origin for XE26 XE35

Chat Now

Hydraulic Pump PVD-1B-28P-8AG4 4331671 4358274 4399045 Hydraulic Piston Pump for EX30 Cx26c Excavator Main Pump

Chat Now

PVD-0B-18B-6AG3-4950A 20400006 Hydraulic Pump for Excavator Small Piston Hydraulic Pump Construction Machinery Parts

Chat Now

PVD-0B-21P-6G3 Hydraulic Pump RB411-61113 RB411-61110 for Kubota U20-5 Mini Excavator Hydraulic Piston Pump

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

Excavator Parts K5V200DTH-9N1H Hydraulic Main Pump SY335 DH400 DH420LC-7 Hydraulic Pump

Function

Acting as the prime power supplier for excavator hydraulic circuits, the main hydraulic pump receives drive force from the engine and transforms mechanical power into high-pressure hydraulic energy. It feeds pressurized fluid to boom, arm, bucket, travelling and slewing hydraulic motors to facilitate all digging motions of the machine.

Product Classification

Axial variable displacement piston pumps are universally equipped on construction diggers. Medium and large tonnage excavators adopt one-piece double main pump structure, alongside an integrated pilot gear pump mounted on the rear casing.
The double main pump consists of two independent pumping units running at 28~35MPa; each feeds oil to different ports of the main control valve to achieve combined compound movements. The tail-mounted pilot pump runs under 3~4MPa low pressure with small flow volume, delivering control oil to pilot handles and main valve spools.

Internal Construction

The pump housing and cylinder block assembly contain multiple piston assemblies that absorb and compress hydraulic oil synchronously as the main shaft spins. The swash plate’s inclined angle determines piston travel distance and overall pump displacement. An externally fitted servo regulator pushes the swash plate via hydraulic signal: bigger tilt equals larger displacement, higher flow and faster working speed; smaller tilt cuts oil output, lowers fuel consumption and prevents engine flameout under overload. The valve plate partitions intake cavity and high-pressure delivery cavity to complete oil distribution.

Three Major Control Technologies

Constant power regulation automatically shrinks pump displacement when load rises, making full use of engine power and avoiding engine stall. Load sensing (LS) system supplies oil flow matching actual system demand and keeps low displacement at idle for fuel conservation. HP pressure cutoff drops pump displacement to the minimum instantly once system pressure hits upper limit, safeguarding hydraulic hoses and cylinders from burst damage.

Common Abnormal Conditions

Worn pistons or valve plate triggering inner leakage, or stuck regulator will lead to slow and feeble machine movements. If the regulator is locked at maximum displacement, excessive oil output brings engine overload, black exhaust smoke and stall. Severe internal leakage turns pressure loss into thermal energy and pushes hydraulic oil temperature abnormally high. Air entering the pipeline, insufficient hydraulic fluid or damaged internal bearings and pistons will generate strange knocking noise from the pump body.

Maintenance Instructions

Replace hydraulic oil and matching filter elements on schedule to avoid abrasive impurities scratching precision internal parts. Ensure tight sealing of suction pipelines to block air infiltration, which would trigger pump noise and machine shaking. Keep hydraulic liquid at marked standard level to avoid irreversible pump damage.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	K5V200DTH DH500	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Color	Grey

Excavator Parts K5V200DTH-9N1H Hydraulic Main Pump SY335 DH400 DH420LC-7 Hydraulic Pump 0 Company Profile
