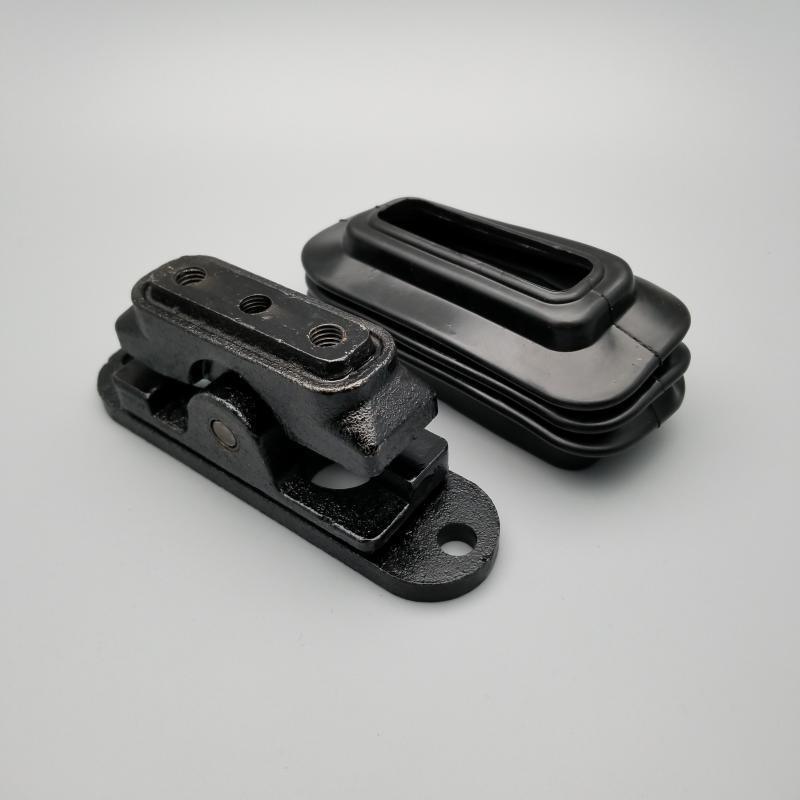

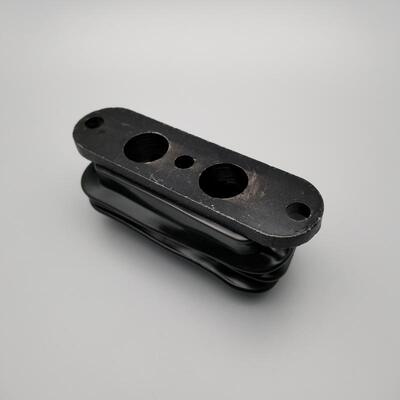

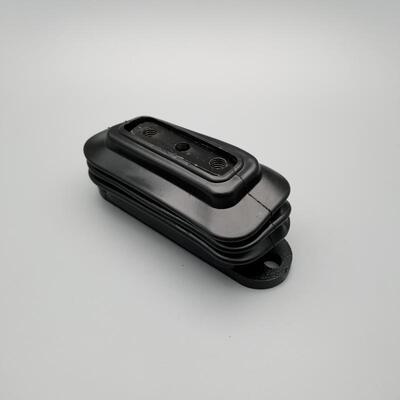

Cat 320D 320GC Foot Pedal Control Valve OEM Hydraulic Foot Pedal Valve

Cat 320d 320gc Walking Foot Seat Excavator Spare Parts For Excavator Machinery Mining Equipment Foot Valve Repair

Core Functions

• Travel Control (Primary Use): Left and right pedals control corresponding left‑right tracks. Pedal depression enables forward or backward movement, and pressing depth regulates travel speed.
• Attachment Function Control: Governs switch status and operation of breakers, quick couplers, hydraulic shears and other working tools.
• Precision Motion Assistance: On some machine models, it fine‑adjusts boom and arm positions or cooperates with joysticks to perform combined movements.
• Safety Neutral Reset Mechanism: Automatically returns to neutral when foot pressure is lifted, cutting pilot pressure supply to avoid unintended operation.

Working Principle

• As a pilot signal‑generating valve, it does not directly actuate travel motors but outputs small hydraulic pressure signals.
• When idle: Automatically returns to neutral with zero pressure output, machine stays stationary.
• When stepped on: Spool moves to send hydraulic signals to the main multi‑way valve for travel motor control.
• When released: Spring resets the valve assembly to stop all associated motions.

Common Faults

• Track offset during travel: Internal leakage or spool jamming in one pedal valve
• Pedal cannot rebound: Damaged return spring or stuck spool
• Underpowered traveling: Low pilot pressure or worn valve components
• Hydraulic oil seepage: Aged seals or structural damage to valve body
