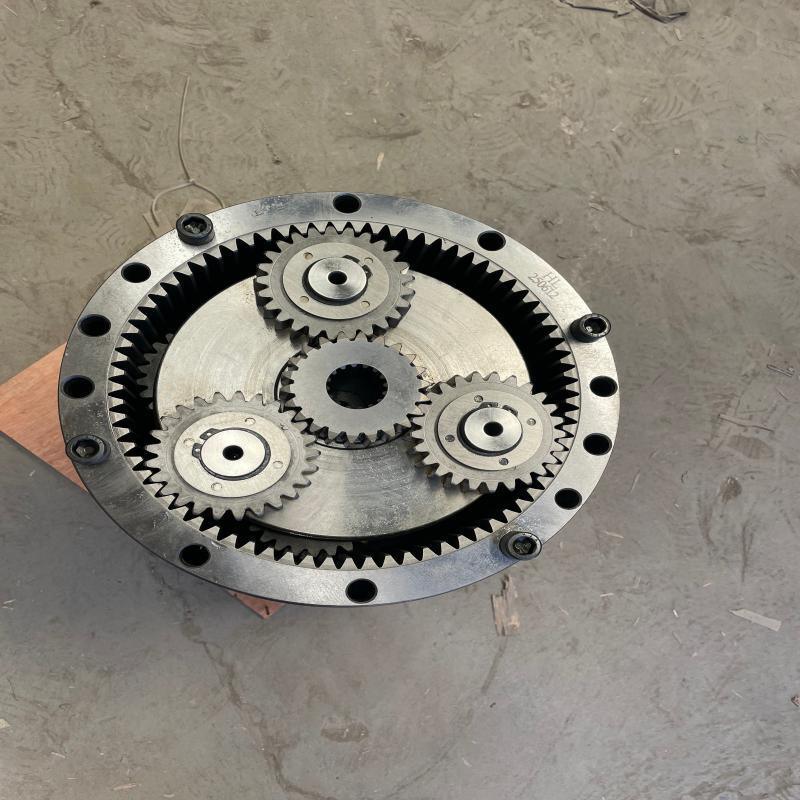

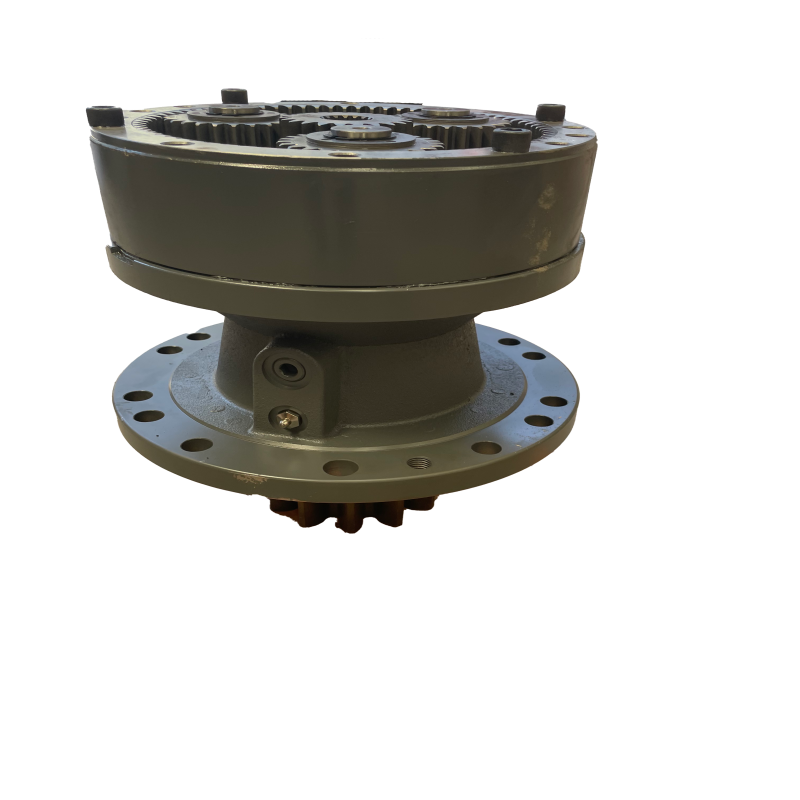

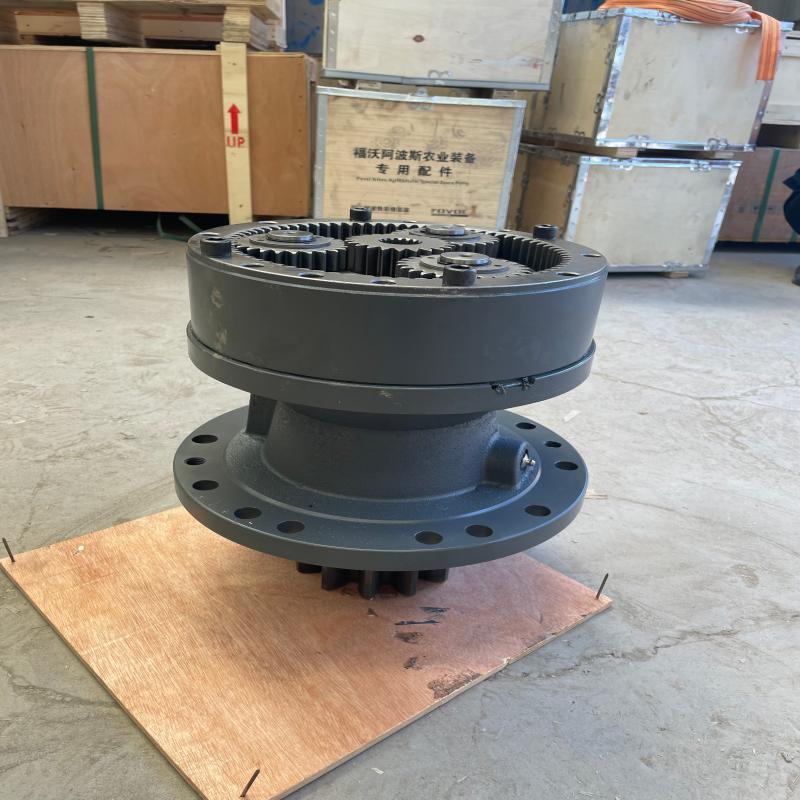

Hyundai R130 Swing Motor Gearbox Excavator Hydraulic Final Drive

Fundamental Component Structure

Common Operational Defects & Root Cause Analysis Results

• Abnormal noise generation / Jerking movement performance: Gear wear abrasion and surface pitting corrosion defects, bearing functional breakdown failure damage, insufficient or contaminated polluted lubricating fluid medium, inappropriate gear meshing backlash numerical value.
• Oil seepage and leakage occurrence problems: Worn oil sealing ring components, housing structural crack defects, overfilled lubricant liquid level height, clogged breather ventilation air‑hole opening.
• Sluggish slow‑moving or power‑deficient slewing performance: Worn gear and bearing assembly components, incomplete brake release functional action, hydraulic motor internal bypass leakage flow path, mismatched speed‑reduction transmission gear ratio parameter.
• Excessive thermal overheating rise conditions: Deficient oil level volume or degraded lubricant physical‑chemical characteristics, overload operating working conditions, persistent brake drag friction resistance force, inadequate heat dissipation radiation capability performance.
• Gear slipping skipping / Tooth fracture failure incidents: Sudden impact load force pressures, foreign debris particle entry into internal component parts, fatigue‑induced degradation wear damage issues, shaft misalignment deviation errors during assembly installation processes.
