Name: DH258 Swing Motor Gearbox High Torque Hydraulic Driven Gearbox
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: DH258
Availability: InStock

Home > Products > Swing Motor Gearbox >

DH258 Swing Motor Gearbox High Torque Hydraulic Driven Gearbox

DH258 Swing Motor Gearbox

Swing Motor Gearbox High Torque

High Torque Hydraulic Driven Gearbox

Place of Origin:

China

Model Number:

DH258

Chat Now

Request A Quote

Product Details

Part Name:

Swing Motor Gearbox

Orign:

China

Application:

Excavator

Color:

Sliver

Packing:

Carton Box

Condition:

100% New

Highlight:

DH258 Swing Motor Gearbox

Swing Motor Gearbox High Torque

High Torque Hydraulic Driven Gearbox

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

5-7 DAYS

Payment Terms

T/T

SY335-9 Excavator Swing Gearbox Swing Reducer For SY335 Excavators Swing Motor Gearbox

Chat Now

SY245 Excavator Swing Gearbox Excavator Machinery Parts Swing Reduction Swing Motor Gearbox

Chat Now

PC300-7 PC360-7 Komatsu Gearbox Final Drive Gear Reducer Box

Chat Now

OEM Swing Reduction Gearbox PC200-8 PC220-7 Excavator Reduction Gearbox

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

DH258 Excavator Swing Reducer Gearbox High Torque Hydraulic Swing Drive

Colloquially named the swing gearbox, an excavator swing reducer acts as a vital transmission connector between the slewing motor and the large slewing gear ring. It focuses on reducing rotational velocity and amplifying torque, making the upper equipment structure rotate smoothly over 360 degrees.

Core Structural Elements

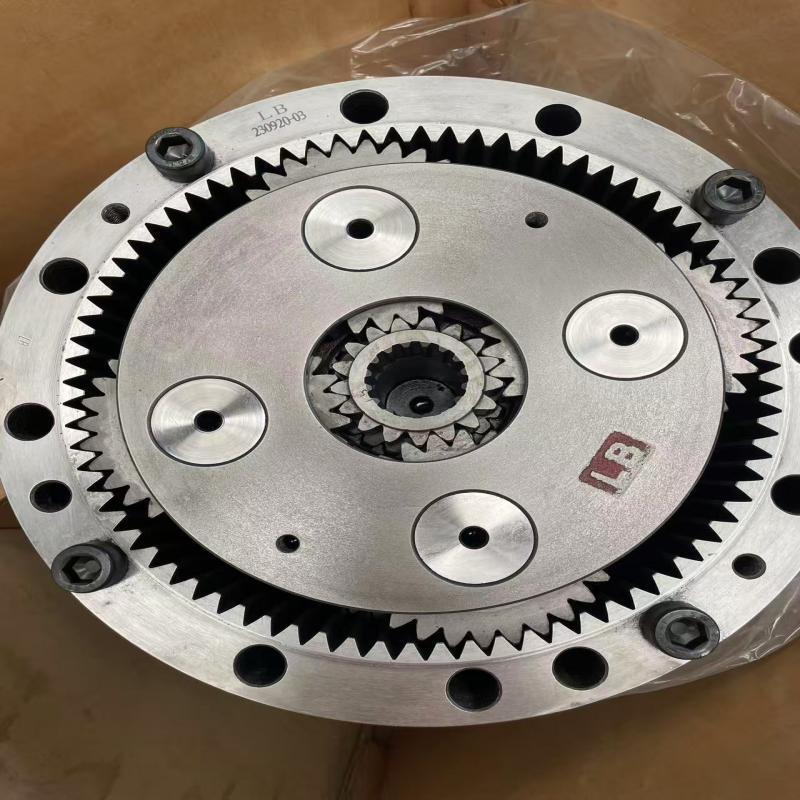

Sun Gear: Connected with splines of the slewing motor to receive high‑speed power input.
Planet Gears: Each stage has 3 to 4 gears, spinning around and on the sun gear to pass torque along.
Ring Gear: Fastened to the housing and meshes with planet gears.
Planet Carrier: Outputs power to drive the lower pinion drive gear.
Brake: Integrated wet‑type multi‑plate brake; springs engage it while hydraulic pressure releases it, avoiding reverse rotation.

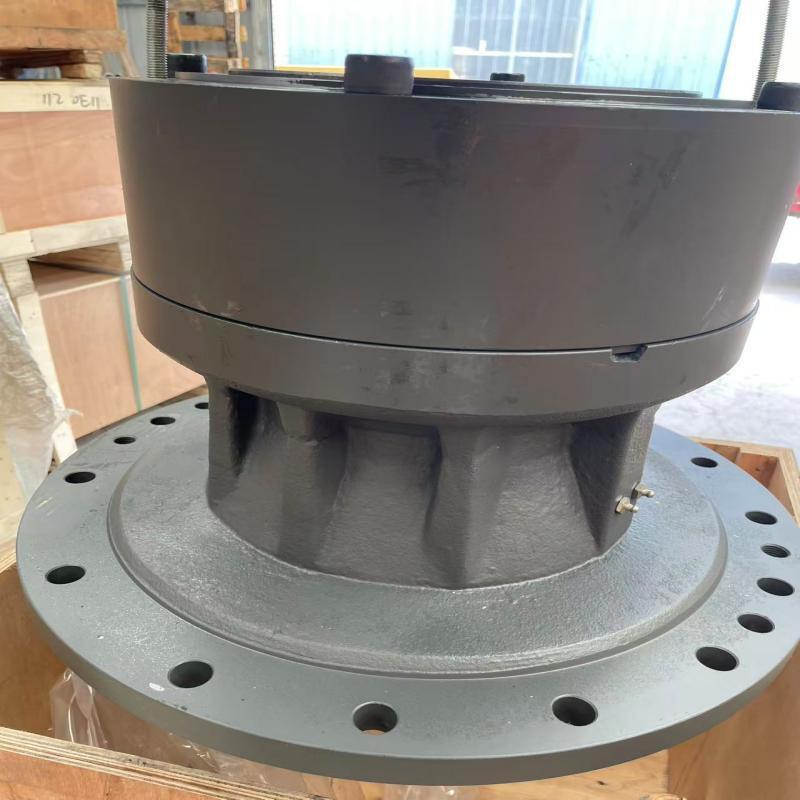

Housing and Bearings: High‑strength cast or forged steel housing equipped with heavy‑load bearings, dust‑proof and leak‑proof.

High‑speed low‑torque power from the hydraulic motor flows through the sun gear, primary and secondary planetary gear sets to the output planet carrier. The pinion runs at low speed with high torque, meshing with the inner gear ring of the slewing bearing to drive upper‑structure rotation.

Common Operational Faults & Root Sources

Abnormal acoustic noise / Choppy movement: Gear abrasion and pitting damage, bearing breakdown failure, short supply or contamination of lubricant, unsuitable gear meshing backlash.
Oil seepage and leakage troubles: Worn oil sealing gaskets, housing structural cracks, overfilled lubricant liquid level, blocked breather vent opening.
Slow or under‑powered slewing action: Worn gear or bearing parts, partial brake release state, internal bypass leakage of hydraulic motor, incompatible transmission gear ratio.
Severe overheating problems: Insufficient oil quantity or degraded lubrication oil quality, overloaded operation scenarios, continuous brake drag friction, ineffective heat dissipation function.
Gear skipping / Broken gear tooth issues: Shock impact loads, ingress of foreign debris particles, fatigue aging deterioration, shaft misalignment during component installation.

Machinery Test Report	Provided	Warranty	1 Year
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Part Name	Swing Reduction Assembly
Model	DH258	Keyword	Swing Gearbox
MOQ	1 Piece	Quality	Tested Great Performance
Application	Excavator	Delivery Time	7-35 Days
Service	Professsional Service	Condition	Brand New
