Name: ZAX120 Hitachi Excavator Parts Cast Iron Swing Reduction Unit
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: ZAX120
Availability: InStock

Home > Products > Swing Motor Gearbox >

ZAX120 Hitachi Excavator Parts Cast Iron Swing Reduction Unit

ZAX120 Hitachi Excavator Parts

Cast Iron Swing Reduction Unit

ZAX120 Swing Reduction Unit

Place of Origin:

China

Model Number:

ZAX120

Chat Now

Request A Quote

Product Details

Color:

Grey

Warranty:

12 Months

Function:

Replacement Parts For Excavator Maintenance And Repair

Packing:

Carton Box

Catagory:

Excavator Swing Motor Parts

Material:

Cast Iron

Condition:

100% New

Origin:

Made In China

Highlight:

ZAX120 Hitachi Excavator Parts

Cast Iron Swing Reduction Unit

ZAX120 Swing Reduction Unit

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

5-7days

Payment Terms

T/T

SY335-9 Excavator Swing Gearbox Swing Reducer For SY335 Excavators Swing Motor Gearbox

Chat Now

SY245 Excavator Swing Gearbox Excavator Machinery Parts Swing Reduction Swing Motor Gearbox

Chat Now

PC300-7 PC360-7 Komatsu Gearbox Final Drive Gear Reducer Box

Chat Now

OEM Swing Reduction Gearbox PC200-8 PC220-7 Excavator Reduction Gearbox

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

ZAX120 Hitachi Excavator Parts Swing Gearbox Final Reduction Gear Swing Drive Assembly

Description:Designed for demanding excavation operations, the ZAX120 Hitachi Excavator Swing Drive Gearbox delivers reliable rotational power and precision control to maximize your machines uptime and job site productivity.

ISO 9001:2015 certified production facility each swing drive assembly undergoes strict dimensional and performance testing.
CE Marked (mechanical safety directive) compliant with EU machinery standards for stress tolerance and operational stability.
RoHS 3 compliant all seals, lubricants, and coatings use restricted-substance-free materials. Manufactured to meet or exceed SAE J744 (hydraulic interface) and ISO 8846 (durability) benchmarks.

The excavator swing reducer, popularly called the swing gearbox, is an essential transmission part bridging the slewing motor and the large slewing gear ring. Its key role lies in reducing speed and increasing torque, allowing the upper framework to rotate smoothly for a full 360 degrees.

Fundamental Structure

Sun Gear: Connected to slewing motor splines, it imports high‑speed power.Planet Gears: 3 to 4 per gear stage, revolving around and self‑rotating on the sun gear to transmit torque.Ring Gear: Stationary on the housing, meshing with planet gears.Planet Carrier: Outputs power to drive the lower drive pinion.
Brake: Internal wet multi‑disc brake, spring‑engaged and hydraulically released, preventing backward rotation.
Housing & Bearings: High‑strength cast/forged steel casing, supported by heavy‑duty bearings, dust‑tight and leak‑tight.

Hydraulic motor‑generated high‑speed low‑torque power travels via the sun gear, primary and secondary planetary gear groups to the output planet carrier. The pinion rotates slowly with high torque, meshing with the inner gear ring of the slewing bearing to drive upper‑structure slewing.

Regular Faults & Fundamental Causes

Strange noise / Intermittent operation: Gear wear and pitting defects, bearing failure, insufficient or contaminated lubrication oil, improper gear backlash.
Oil seepage and spillage: Worn oil sealing elements, housing cracks, overfilled lubricant volume, clogged ventilation opening.
Sluggish or under‑powered rotation: Worn gears or bearing components, incomplete brake release action, hydraulic motor internal leakage, mismatched speed‑reduction ratio.
Excessive overheat condition: Inadequate oil level or degraded lubricant quality, overload operation, brake drag resistance, insufficient heat emission.
Gear skipping / Tooth breakage damage: Impact‑type loads, foreign debris infiltration, fatigue deterioration issues, shaft misalignment in assembly work.

Machinery Test Report	Provided	Warranty	1 Year
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product name	Swing Reduction Gearbox
Product description	Main Final Drives Assembly	Quality	OEM Standard
Condition	Brand new	Model Number	ZAX120
MOQ	1Pc	Delivery time	5-7 Days
Material	Cast Iron	Packing	Carton

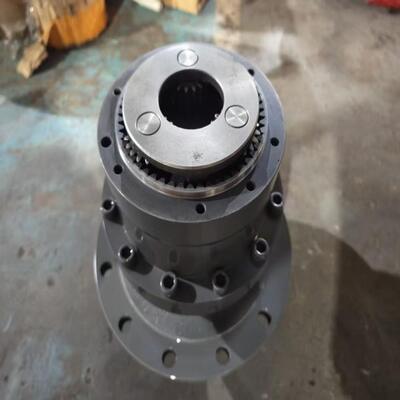

ZAX120 Hitachi Excavator Parts Cast Iron Swing Reduction Unit 0

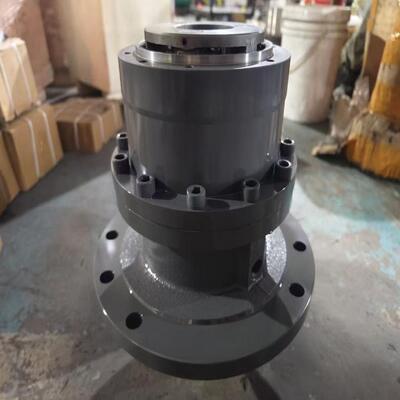

ZAX120 Hitachi Excavator Parts Cast Iron Swing Reduction Unit 1

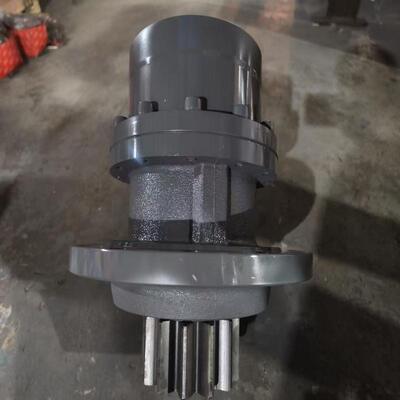

ZAX120 Hitachi Excavator Parts Cast Iron Swing Reduction Unit 2

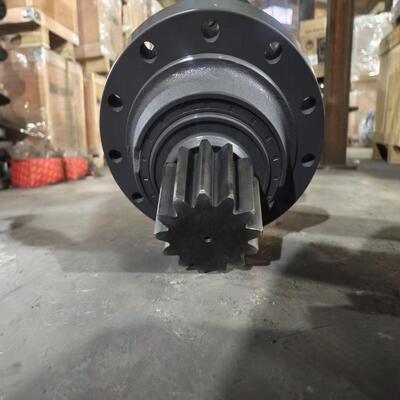

ZAX120 Hitachi Excavator Parts Cast Iron Swing Reduction Unit 3
