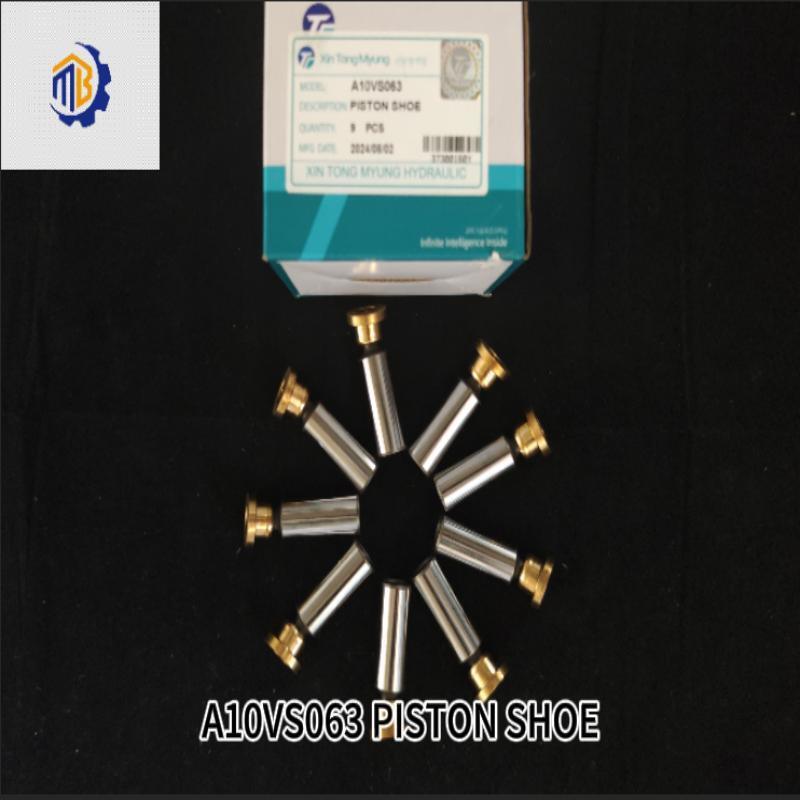

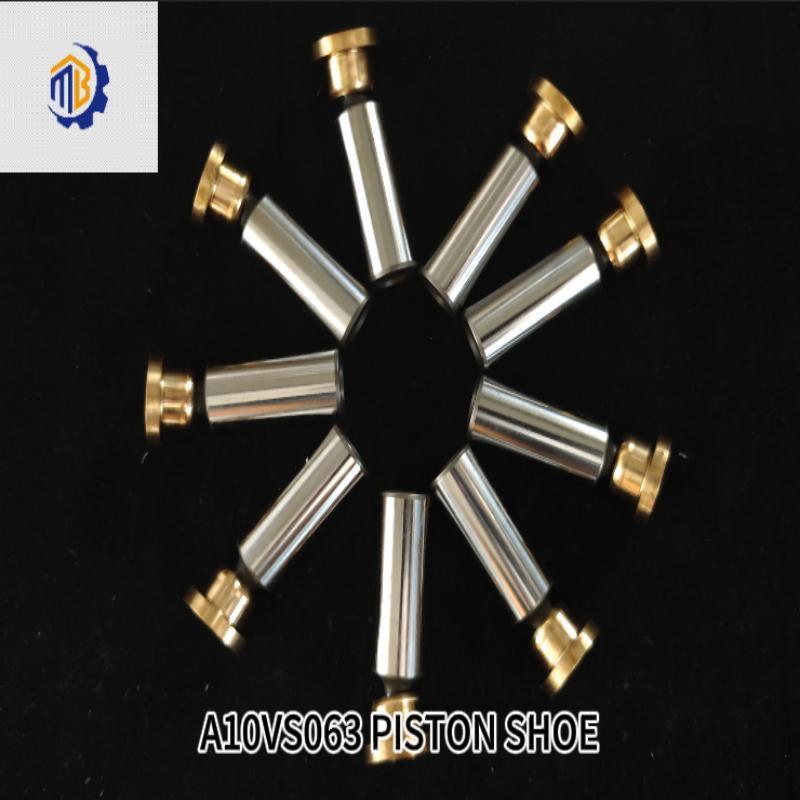

Excavator Pump Parts Rexroth A10VSO63 Piston Shoe R902418043 Set of 9 pcs Spare Parts

Excavator Pump Parts Rexroth A10VSO63 Piston Shoe R902418043 Set of 9 pcs Spare Parts

Power Transfer and Automatic Angle Adaptation
Pistons reciprocate linearly within the cylinder block while the swash plate stays fixedly tilted. Linked via spherical hinge, the piston shoe swings freely matching swash plate inclination and transmits axial piston thrust steadily to the swash plate. If piston shoes are removed, piston ball heads touch the swash plate only at discrete points, which will lead to immediate crushing and heavy wear.

Turn Point Contact into Surface Contact to Mitigate Contact Stress
Spherical structure is adopted for piston ball heads, and piston shoes have broad flat bottom planes.
Ball head ↔ Piston shoe: flexible spherical hinge connection
Piston shoe bottom ↔ Swash plate: surface sliding contact
Greater contact area reduces unit pressure to satisfy long-term running conditions of high-pressure hydraulic pumps.

Hydrostatic Oil Film Lubrication (Primary Role)
A small throttle bore is located at the centre of each piston shoe. High-pressure oil flows through piston inner passage, ball head and bore into the bottom recess and creates a 10～30 μm thin high-pressure oil film between piston shoe and swash plate.
Functions:
✅ Transform metallic dry friction to fluid friction
✅ Stop abrasion and burning of piston shoe and swash plate due to direct metal contact
✅ Take away heat produced during friction
Overflow oil enters pump housing and forms internal leakage return oil.

Ensure Continuous Attachment Assisted by Set Plate
The set plate pushes against piston shoe rear surfaces so they always fit closely onto the swash plate. When the cylinder block rotates 360 degrees, each piston finishes one suction stroke and one discharge stroke, and piston shoes slide repeatedly over the swash plate.
