Excavator Pump Parts Swash Plate Ball With Grooves Ap2d36 Excavator Parts

Excavator Pump Parts Swash Plate Ball With Grooves  Ap2d36 Excavator Parts

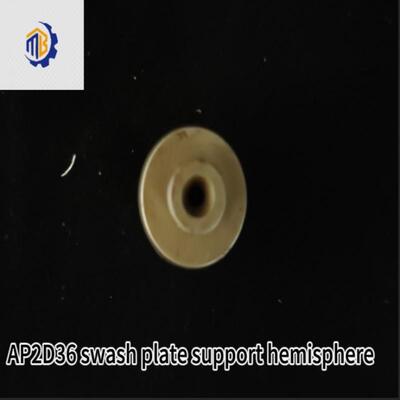

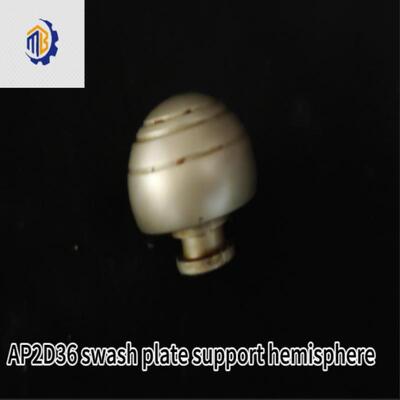

Spherical pivot supporting the swash plate Driven by the servo piston, the swash plate (cam plate) tilts and swings. The support hemisphere acts as the swinging pivot for the swash plate. The flat side of the hemisphere fits against the pump housing/cradle, while its spherical surface bears against the swash plate, enabling smooth adjustment of the swash plate tilt angle. Changes in the tilt angle alter the plunger stroke, thus regulating the pump output flow.

Withstand heavy axial hydraulic thrust High hydraulic pressure generated by the plungers continuously pushes against the swash plate. All this force is borne by the support hemisphere, which functions as a load‑bearing base for the swash plate.

Friction reduction via hydrostatic oil film A high‑pressure oil film forms between the spherical surface of the hemisphere and the swash plate contact area. It reduces sliding friction, prevents direct metal‑to‑metal scuffing, lowers wear and heat generation, and ensures flexible swinging of the swash plate.

Positioning and swing clearance control Normally used in pairs (one on each side), it restricts swash plate displacement and wobble. It controls the swing clearance of the swash plate and guarantees responsive displacement adjustment.
