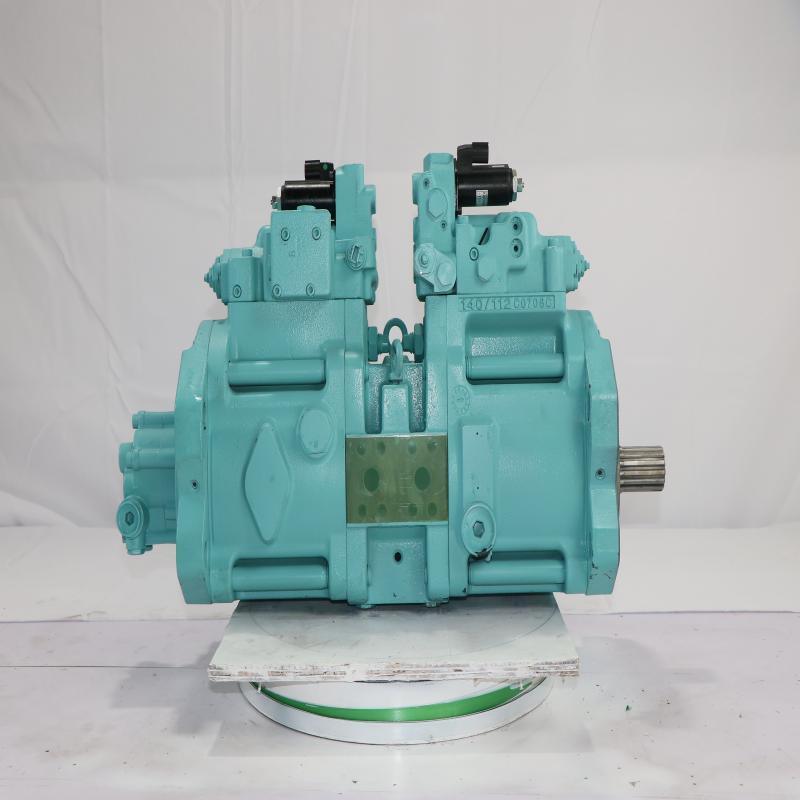

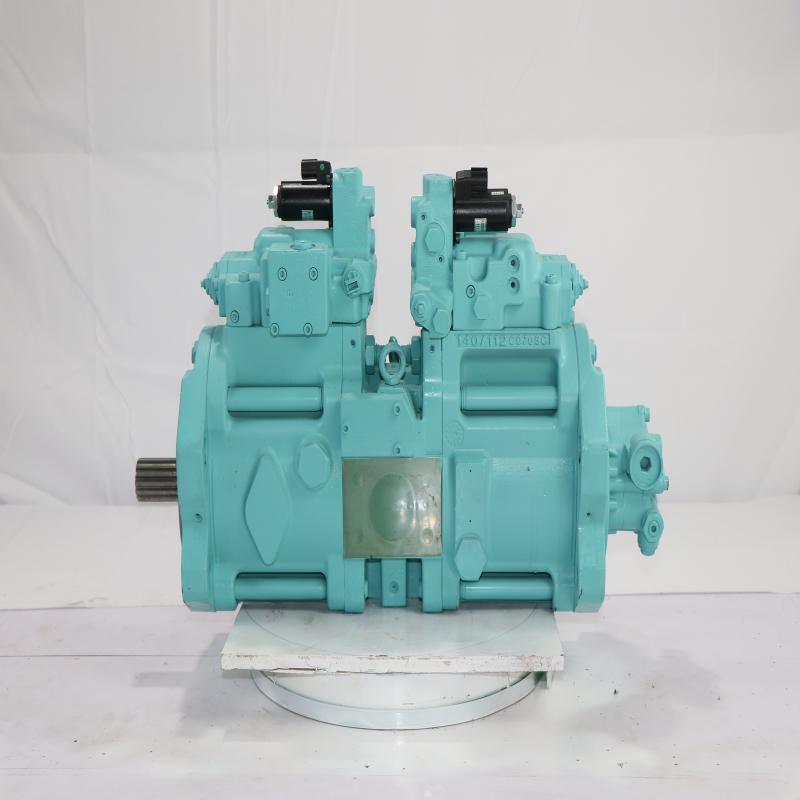

Name: K3V112DT Hydraulic Pump for YN10V00007F1 PUMP ASSY FITS KOBELCO SK200-6 SK210-6 K3V112DT-1RAR-9T1L 7815196
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: K3V112DT-SK200-6
Availability: InStock

Home > Products > Hydraulic Main Pump >

K3V112DT Hydraulic Pump for YN10V00007F1 PUMP ASSY FITS KOBELCO SK200-6 SK210-6 K3V112DT-1RAR-9T1L 7815196

K3V112DT hydraulic pump for Kobelco

Hydraulic main pump with warranty

SK200-6 SK210-6 compatible pump

Place of Origin:

China

Model Number:

K3V112DT-SK200-6

Chat Now

Request A Quote

Product Details

Color:

Light Green

Highlight:

K3V112DT hydraulic pump for Kobelco

Hydraulic main pump with warranty

SK200-6 SK210-6 compatible pump

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-15days

Payment Terms

T/T

Excavator Parts A10VO45DFLR 53R-VUC62N00 -S3042 R902502504 Hydraulic Piston Pumps OEM Brand Guangdong Origin for XE26 XE35

Chat Now

Hydraulic Pump PVD-1B-28P-8AG4 4331671 4358274 4399045 Hydraulic Piston Pump for EX30 Cx26c Excavator Main Pump

Chat Now

PVD-0B-18B-6AG3-4950A 20400006 Hydraulic Pump for Excavator Small Piston Hydraulic Pump Construction Machinery Parts

Chat Now

PVD-0B-21P-6G3 Hydraulic Pump RB411-61113 RB411-61110 for Kubota U20-5 Mini Excavator Hydraulic Piston Pump

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

K3V112DT Hydraulic Pump for SK200-6 EC220D Doosan DX921JCM921 Sumitomo SH200 JS200 R200-7 Excavator

Function

Serving as the core power source for excavator hydraulic systems, our hydraulic main pump is driven by the engine. It converts mechanical power into high-pressure hydraulic power, and delivers pressurized fluid to hydraulic motors to power all working functions including lifting, digging, traveling and slewing.

Type

Axial variable piston pumps are widely equipped on engineering excavators. Medium and large size excavators adopt integrated dual main pumps matched with a rear pilot gear pump.
Dual independent high-pressure oil lines supply the main control valve to enable smooth composite actions, with standard working pressure of 28~35MPa.
The low-pressure pilot pump at the pump tail operates at 3~4MPa with low flow, providing reliable control pressure for operating levers and valve spools.

Internal Parts

Precision piston assemblies rotate synchronously with the main shaft inside the cylinder block and housing to complete oil suction and pressurization.
The adjustable swash plate changes its tilt angle to regulate piston stroke and overall pump displacement.
Controlled by hydraulic feedback, the external servo regulator adjusts the swash plate flexibly. Higher tilt angle increases flow and working efficiency; lower tilt angle saves fuel and secures normal engine operation.
The valve plate isolates inlet and outlet oil passages for stable fluid distribution.

Three Control Modes

Constant power control automatically optimizes pump displacement under varying loads to protect the engine and fully utilize power output.
The advanced LS load sensing system provides on-demand flow and reduces fuel consumption during idling.
The HP pressure limiting protection cuts pump displacement at peak pressure, effectively safeguarding hydraulic pipes and cylinders from damage.

Common Failures

Internal leakage caused by component wear or regulator clogging will slow down machine operation and reduce output power.
Regulator stuck at maximum displacement will lead to engine overload, black smoke and stall under heavy loads.
Excessive internal leakage will raise hydraulic oil temperature abnormally. Air intake or damaged internal parts will generate unusual operating noise.

Maintenance

Regular replacement of hydraulic oil and filters can protect precision parts from abrasion. Always keep suction pipelines sealed to prevent air entry and vibration. Maintain hydraulic oil at the rated level for stable pump operation.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	K3V112ST-SK200-6	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Color	Light Green
