Name: K5V80DTP Hydraulic Main Pump PTO Driven Hydraulic Pump Excavators Construction Machinery K5V80DTP-9C Series Pump
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: K5V80DTP-9C
Availability: InStock

Home > Products > Hydraulic Main Pump >

K5V80DTP Hydraulic Main Pump PTO Driven Hydraulic Pump Excavators Construction Machinery K5V80DTP-9C Series Pump

K5V80DTP hydraulic main pump

PTO driven hydraulic pump

excavator construction machinery pump

Place of Origin:

China

Model Number:

K5V80DTP-9C

Chat Now

Request A Quote

Product Details

Color:

Red

Highlight:

K5V80DTP hydraulic main pump

PTO driven hydraulic pump

excavator construction machinery pump

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-15days

Payment Terms

T/T

Excavator Parts A10VO45DFLR 53R-VUC62N00 -S3042 R902502504 Hydraulic Piston Pumps OEM Brand Guangdong Origin for XE26 XE35

Chat Now

Hydraulic Pump PVD-1B-28P-8AG4 4331671 4358274 4399045 Hydraulic Piston Pump for EX30 Cx26c Excavator Main Pump

Chat Now

PVD-0B-18B-6AG3-4950A 20400006 Hydraulic Pump for Excavator Small Piston Hydraulic Pump Construction Machinery Parts

Chat Now

PVD-0B-21P-6G3 Hydraulic Pump RB411-61113 RB411-61110 for Kubota U20-5 Mini Excavator Hydraulic Piston Pump

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

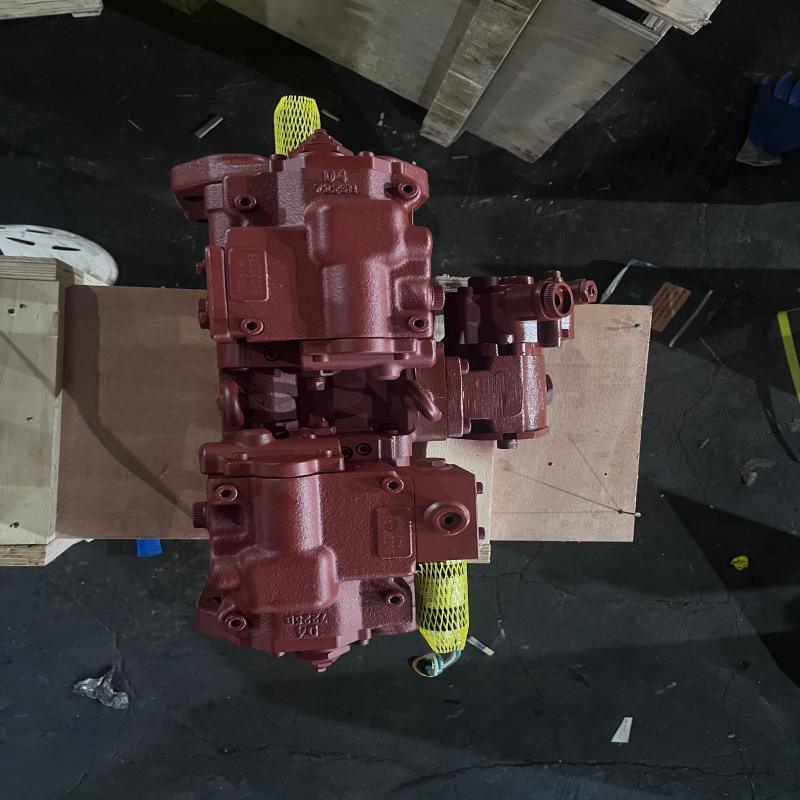

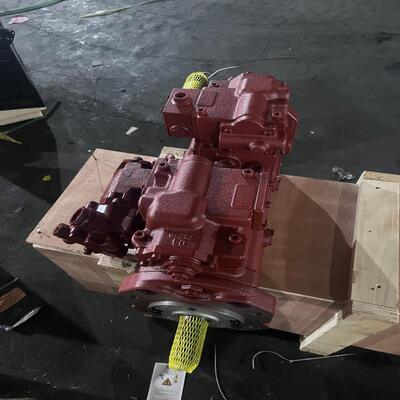

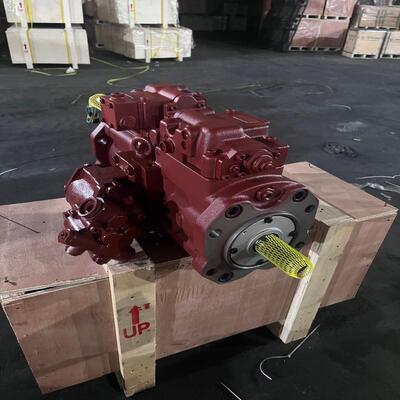

K5V80DTP Hydraulic Main Pump PTO Driven Hydraulic Pump Excavators Construction Machinery K5V80DTP-9C Series Pump

Function
The hydraulic main pump is the core power unit of excavator hydraulic systems. Driven by the engine, it converts mechanical power into high-pressure hydraulic energy and feeds pressurized fluid to boom, stick, bucket, travel and swing motors to power all working motions of the equipment.

Type
Axial variable piston pumps are widely equipped on construction excavators. Medium and large excavators are fitted with integrated dual main pumps, with a pilot gear pump installed at the rear.
The dual high-pressure pump consists of two independent pump sections, which deliver oil to different ports of the main control valve respectively to enable compound movements, with working pressure between 28 and 35MPa.
The low-pressure pilot pump mounted on the pump end operates at 3~4MPa with low flow rate, and supplies control oil for operating levers and spools of the main valve.

Internal Parts
Housing and cylinder block: A set of pistons rotate together with the main shaft to complete oil suction and pressurization.
The swash plate adjusts its inclination to change piston stroke and pump displacement.
The externally installed regulator drives the swash plate according to hydraulic signals. A larger tilt angle increases displacement and flow for faster operation; a smaller tilt angle reduces displacement and fuel consumption, and prevents the engine from stalling.
The valve plate divides the oil inlet and high-pressure outlet to realize fluid distribution.

Three Control Modes
Constant power control automatically reduces pump displacement under heavy loads to protect the engine from stall and make full use of its rated power.
LS load sensing control provides oil flow on demand and maintains low displacement at idle state to save fuel.
HP pressure cut-off function reduces pump displacement to the minimum when pressure reaches the limit, protecting hydraulic hoses and cylinders from burst failure.

Common Failures
Worn pistons or valve plate will cause internal leakage, and a stuck regulator also leads to slow response and insufficient power.
If the regulator is locked at maximum displacement, excessive load will appear, resulting in engine stall and black exhaust smoke under heavy working conditions.
Serious internal leakage converts pressure loss into heat, which causes the temperature of hydraulic oil to rise abnormally.
Air entering the pipeline, insufficient hydraulic oil or damaged bearings and pistons will generate abnormal running noise.

Maintenance
Replace hydraulic oil and filters periodically to stop contaminants from wearing core components. Ensure the suction pipeline is well sealed to prevent air ingress and machine vibration. Maintain the hydraulic oil at standard level to avoid permanent pump damage.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	K5V80DTP-9C	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Color	Red
