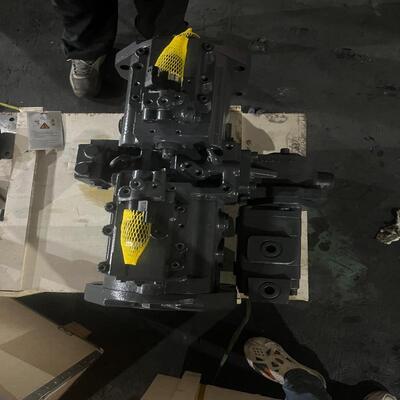

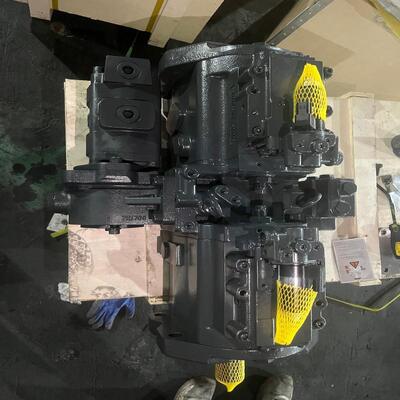

Name: K5V160DTP-1E03 Hydraulic Main Pump for K5V160DT Excavator ECR305C 14567427 Construction Machinery Hydraulic Parts
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: K5V160DTP-1E03
Availability: InStock

Home > Products > Hydraulic Main Pump >

K5V160DTP-1E03 Hydraulic Main Pump for K5V160DT Excavator ECR305C 14567427 Construction Machinery Hydraulic Parts

K5V160DTP hydraulic main pump

excavator hydraulic pump replacement

construction machinery hydraulic parts

Place of Origin:

China

Model Number:

K5V160DTP-1E03

Chat Now

Request A Quote

Product Details

Color:

Black

Highlight:

K5V160DTP hydraulic main pump

excavator hydraulic pump replacement

construction machinery hydraulic parts

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-15days

Payment Terms

T/T

Excavator Parts A10VO45DFLR 53R-VUC62N00 -S3042 R902502504 Hydraulic Piston Pumps OEM Brand Guangdong Origin for XE26 XE35

Chat Now

Hydraulic Pump PVD-1B-28P-8AG4 4331671 4358274 4399045 Hydraulic Piston Pump for EX30 Cx26c Excavator Main Pump

Chat Now

PVD-0B-18B-6AG3-4950A 20400006 Hydraulic Pump for Excavator Small Piston Hydraulic Pump Construction Machinery Parts

Chat Now

PVD-0B-21P-6G3 Hydraulic Pump RB411-61113 RB411-61110 for Kubota U20-5 Mini Excavator Hydraulic Piston Pump

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

K5V160DTP-1E03 Hydraulic Main Pump for K5V160DT Excavator 14567427 Construction Machinery Hydraulic Parts

The hydraulic main pump acts as the core power source of excavator hydraulic systems. Driven by the engine unit, it transforms mechanical rotational energy into high-pressure hydraulic fluid to power boom, arm, bucket, travel and swing motors, covering all operational movements of the machine. Adopting the widely used axial variable piston structure, this pump is fitted on most construction excavators. Medium and large models adopt integrated dual main pumps with a rear-mounted pilot pump, delivering 28~35MPa high pressure for main hydraulic circuits and 3~4MPa low pressure for pilot control circuits. The complete pump assembly consists of cylinder block and piston sets, angle-adjustable swash plate, side-mounted flow regulator and valve plate. The regulator adjusts swash plate angle to change pump displacement, oil output and fuel consumption. Equipped with three intelligent control systems, it reduces displacement under heavy loads to avoid engine stall, delivers flow based on actual demand to save fuel, and minimizes displacement at peak pressure to protect hydraulic components. Common failures include slow and weak operation caused by internal leakage or stuck regulator, engine overload and black smoke due to fixed large displacement, hydraulic oil overheating from serious leakage, and abnormal noise triggered by air intake or insufficient oil level. Routine replacement of hydraulic oil and filters, well-sealed suction pipelines and standard oil levels can effectively reduce pump failure risks.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	K5V160DTP-1E03	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Color	Black

K5V160DTP-1E03 Hydraulic Main Pump for K5V160DT Excavator ECR305C 14567427 Construction Machinery Hydraulic Parts 0 Company Profile
