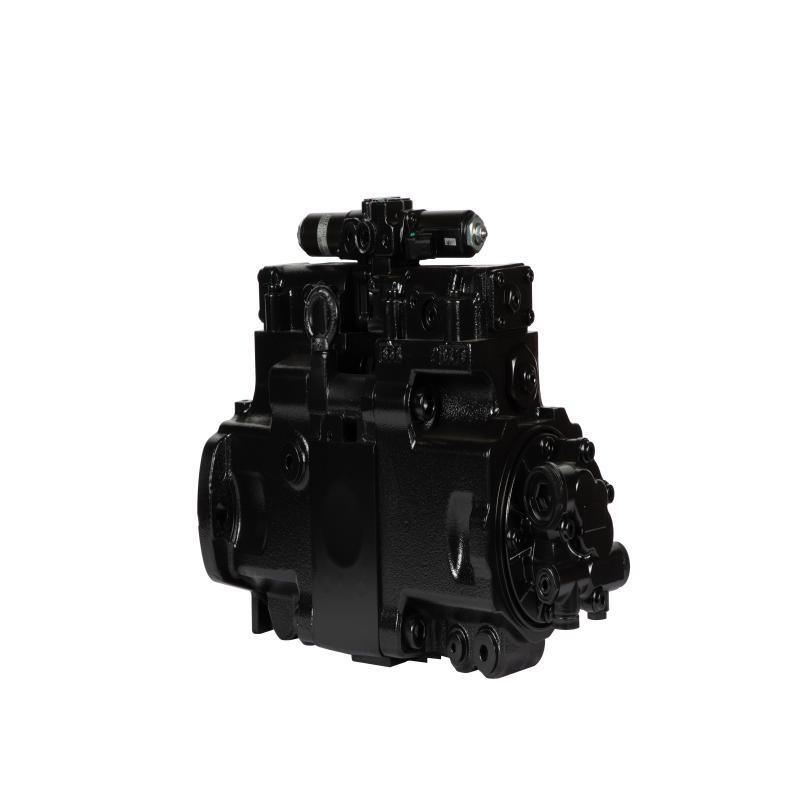

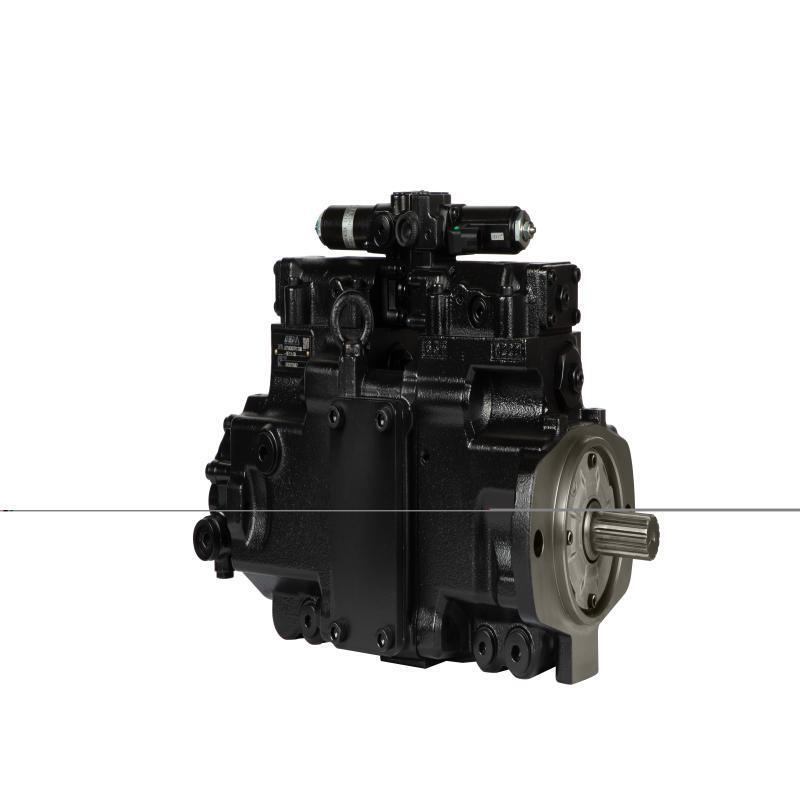

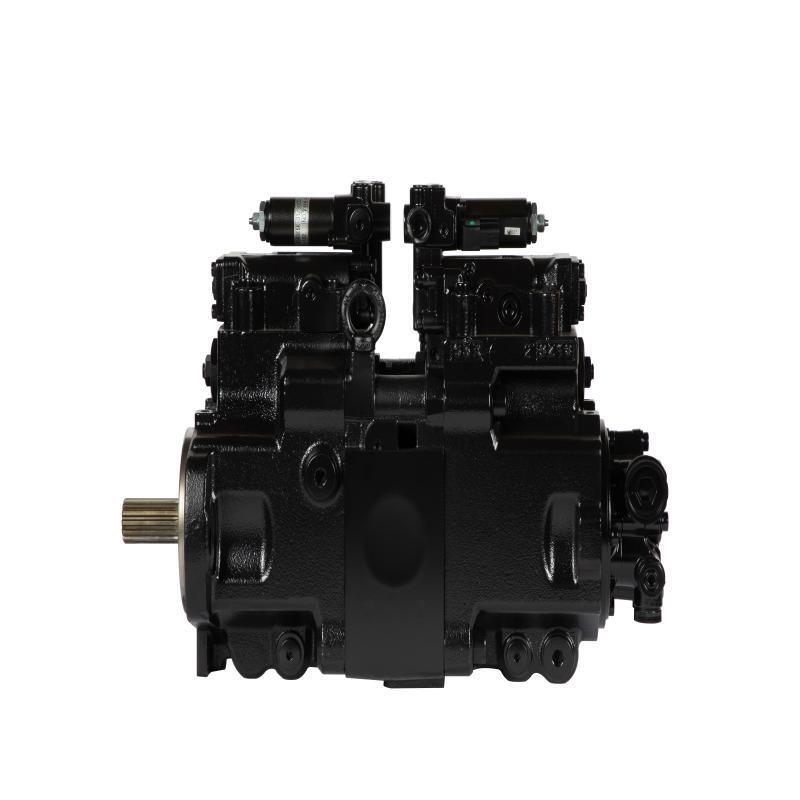

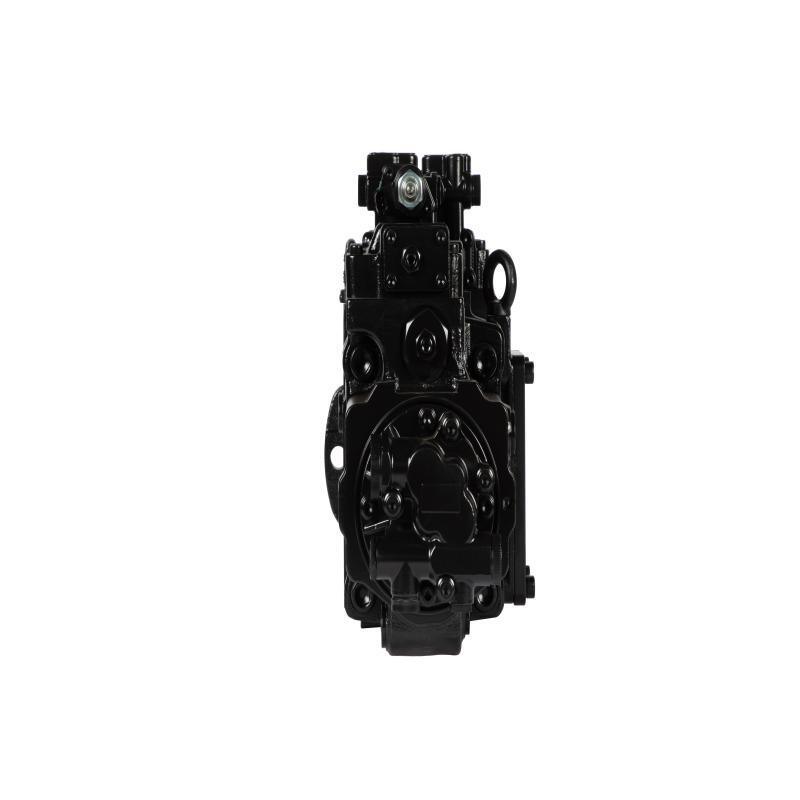

Name: K7V63DTP-0E13 Excavator Hydraulic Pump for SK130-8 SK135-8 SK140-8 SY135-8 YY10V00009F4 Excavator Machinery Parts
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: K7V63DTP-0E13
Availability: InStock

Home > Products > Excavator Machinery Parts >

K7V63DTP-0E13 Excavator Hydraulic Pump for SK130-8 SK135-8 SK140-8 SY135-8 YY10V00009F4 Excavator Machinery Parts

Excavator hydraulic pump SK130-8

Hydraulic pump for SK140-8 excavator

Excavator machinery parts with warranty

Place of Origin:

China

Model Number:

K7V63DTP-0E13

Chat Now

Request A Quote

Product Details

Color:

Black

Application:

SK130-8

Material:

Iron

Selling Units:

Single Item

Single Package Size:

100X75X68 Cm

Single Gross Weight:

76.000 Kg

Highlight:

Excavator hydraulic pump SK130-8

Hydraulic pump for SK140-8 excavator

Excavator machinery parts with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

3-15days

Payment Terms

T/T

V90N130 Hydraulic Main Pump Liugong CLG920E CLG922E Hydraulic System Pump

Chat Now

video

E320C Excavator Machinery Parts Planetary Gear Reduction Kit Durable

Chat Now

video

DX500 Excavator Machinery Parts OEM Swing Motor Gearbox To Reduce Speed

Chat Now

E336D E345D E349D Excavator Machinery Parts Final Drive Swing Base Assembly

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

K7V63DTP-0E13 Excavator Hydraulic Pump for SK130-8 SK135-8 SK140-8 YY10V00009F4 Excavator Machinery Parts

Main Functions

Our hydraulic main pump is the power source for excavator hydraulic system. Connected with engine, it transfers mechanical energy into high-pressure hydraulic oil to power boom, arm, bucket, travel and swing assemblies.

Available Types

Almost all construction excavators install axial variable piston pumps. Medium and large excavator models adopt integrated double main pump with pilot gear pump installed on rear end.
Two separated pump chambers of main pump deliver oil separately at 28~35MPa to realize multi-action operation; rear pilot pump runs at 3~4MPa to offer control oil for operating levers and main valve spools.

Internal Build

Inside cylinder block, multiple pistons suck and compress oil with spindle rotation. Swash plate angle controls piston travel and pump displacement. External regulator adjusts swash plate angle by hydraulic signal to control flow volume and fuel consumption. Valve plate divides low-pressure inlet and high-pressure outlet for smooth oil distribution.

Core Control Features

Constant power function cuts pump displacement under heavy loads to prevent engine shutdown; LS load sensing only produces required flow to save fuel during idle status; pressure cut-off limits pump displacement at peak pressure to protect pipes and hydraulic cylinders.

Regular Troubleshooting

Worn inner parts or blocked regulator make machine slow and weak; fixed large displacement leads to engine overload, black smoke; serious inner leakage results in overheating hydraulic oil; air intake or insufficient oil creates abnormal pump noise.

Daily Care

Replace hydraulic oil and filters regularly, check suction pipeline air tightness and keep correct oil level to protect pump core components.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	K7V63DTP-0E13	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Color	Grey
