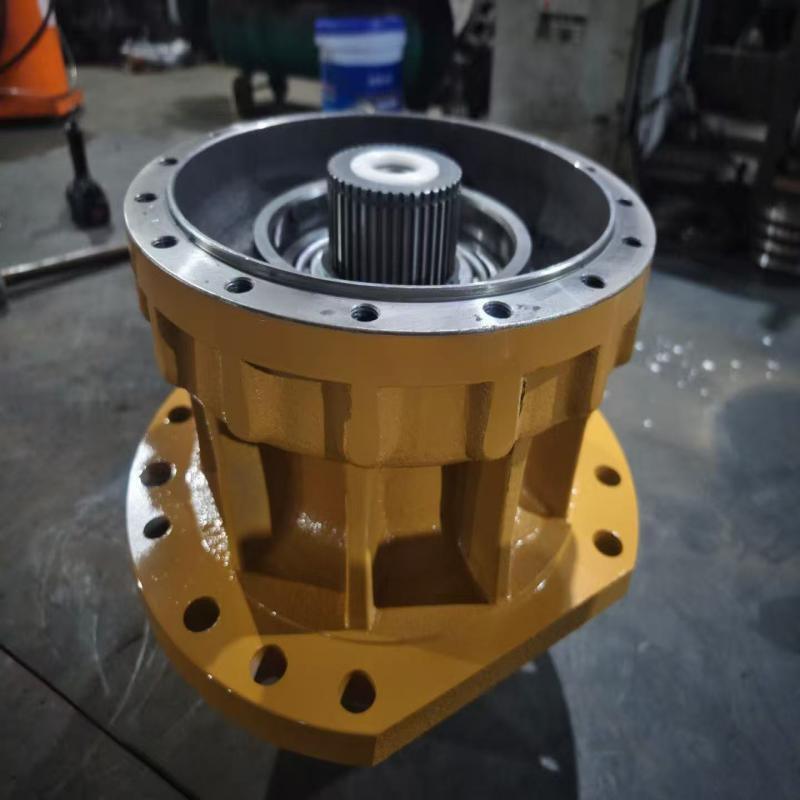

Name: E336D E345D E349D Swing Drive Gearbox 227-6045 227-6044 200-3491 161-4209
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: E345D
Availability: InStock

Home > Products > Excavator Machinery Parts >

E336D E345D E349D Swing Drive Gearbox 227-6045 227-6044 200-3491 161-4209

E336D Swing Drive Gearbox

E349D Swing Drive Gearbox

227-6045

Place of Origin:

China

Model Number:

E345D

Chat Now

Request A Quote

Product Details

Catagory:

Construction Excavator Machinery Parts

Model No:

E345D

Single Package Size:

76X56X60 Cm

Productname:

Swing Motor Gearbox

Color:

Yellow

Condition:

All New

Highlight:

E336D Swing Drive Gearbox

E349D Swing Drive Gearbox

227-6045

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-35days

Payment Terms

T/T

Doosan DX500 Reduction Cover Rotary Motor Housing for Device Gearbox Excavator Machinery Parts

Chat Now

E120B Travel Reduction Motor Assembly Hitachi Final Drive Motor Excavator Machinery Parts

Chat Now

Hitachi Excavator Main Control Valve Distribution Valve Drain Pin Cover for ZAX70 ZAX200 Safety Valve Aluminum Iron Cover

Chat Now

Excavator Final Drive Swing Gearbox E374 Swing ReductionKomatsu Hitachi Excavator Machinery Parts

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

E336D E345D E349D Excavator Final Drive Swing Reduction Gearbox Parts 227-6045 227-6044 200-3491 161-4209 (Without Motor)

Commonly called the swing gearbox, the excavator swing reducer is an essential transmission unit between the swing motor and large swing gear ring. It reduces speed while amplifying torque to drive the upper structure into steady 360° swing motion.

Core Structure
• Sun gear: Coupled to the slewing motor via splines to receive high-speed power input.
• Planet gear: Each stage is equipped with 3 to 4 gears, which revolve around the sun gear while spinning on their own axes for torque transmission.
• Ring gear: Mounted on the reducer housing and meshes with the planet gears.
• Planet carrier: Serves as the power output member to drive the bottom pinion gear.
• Brake: Adopts an integrated wet multi-disc brake; spring-on and hydraulic-off design prevents unintended slewing drifting.
• Housing and bearings: Made of high-strength cast steel or forged steel, matched with heavy-duty bearings, offering reliable dustproof and oil-leakage-proof capability.

Working Principle

The hydraulic motor delivers power at high speed and low torque, which is transmitted to the sun gear. Power then passes through the first-stage planet gears and primary planet carrier, before transferring to the secondary sun gear and second-stage planetary assembly. After being decelerated by the two-stage planetary mechanism, power is output via the secondary planet carrier. The pinion rotates at low speed with high torque, meshes with the inner gear ring of the slewing bearing, and ultimately drives the excavator upper structure to perform rotational movement.

Common Faults and Causes
• Abnormal noise / Jerking: Gear wear and surface pitting, bearing failure, lubricant shortage or contaminated oil, improper gear meshing clearance.
• Oil leakage: Aged oil seals, housing cracks, overfilled lubricant, blocked breather valve.
• Insufficient / Sluggish slewing: Worn gears or bearings, incomplete brake release, hydraulic motor internal leakage, mismatched transmission ratio.
• Excessive overheating: Low lubricant level or oil degradation, overloaded operation, brake drag, insufficient heat dissipation.
• Gear skipping / Tooth fracture: Sudden impact load, ingress of foreign particles, fatigue wear, assembly misalignment.

Machinery Test Report	Provided	Warranty	1 Year
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Swing Reduction Gearbox
Product Description	Main Final Drives Assembly	Quality	OEM Standard
Condition	Brand New	Model Number	E336D E345D E349D
MOQ	1 Piece	Delivery Time	5-7 Days
Material	Cast Iron	Packing	Carton

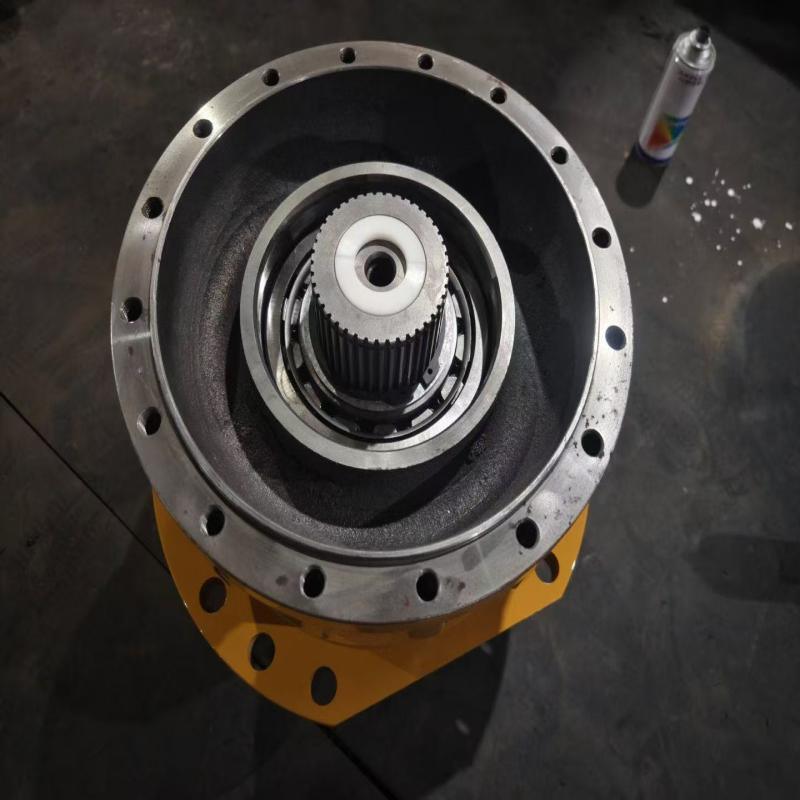

E336D E345D E349D Swing Drive Gearbox 227-6045 227-6044 200-3491 161-4209 0

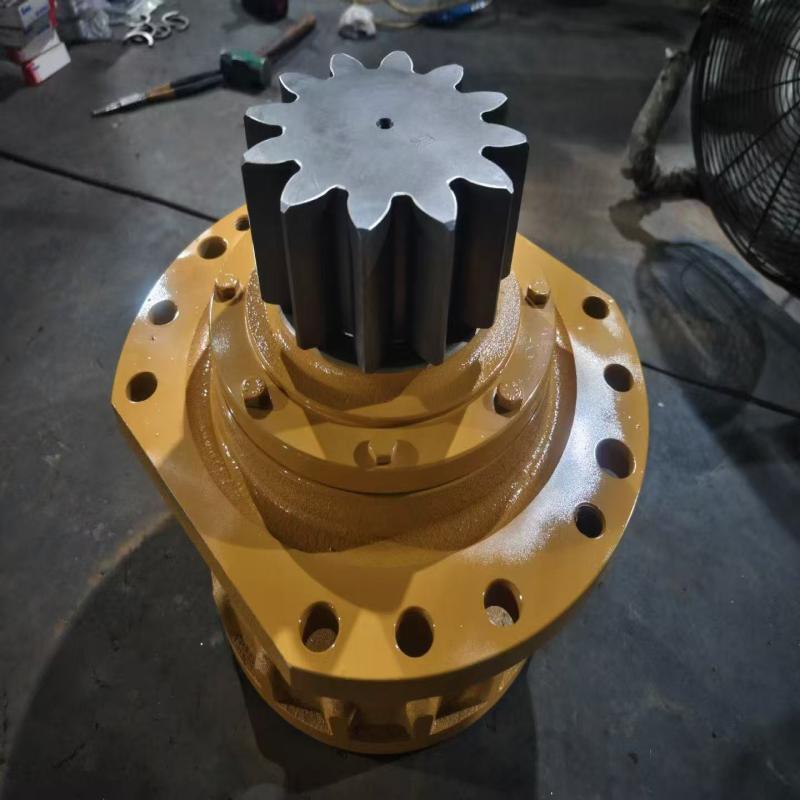

E336D E345D E349D Swing Drive Gearbox 227-6045 227-6044 200-3491 161-4209 1
