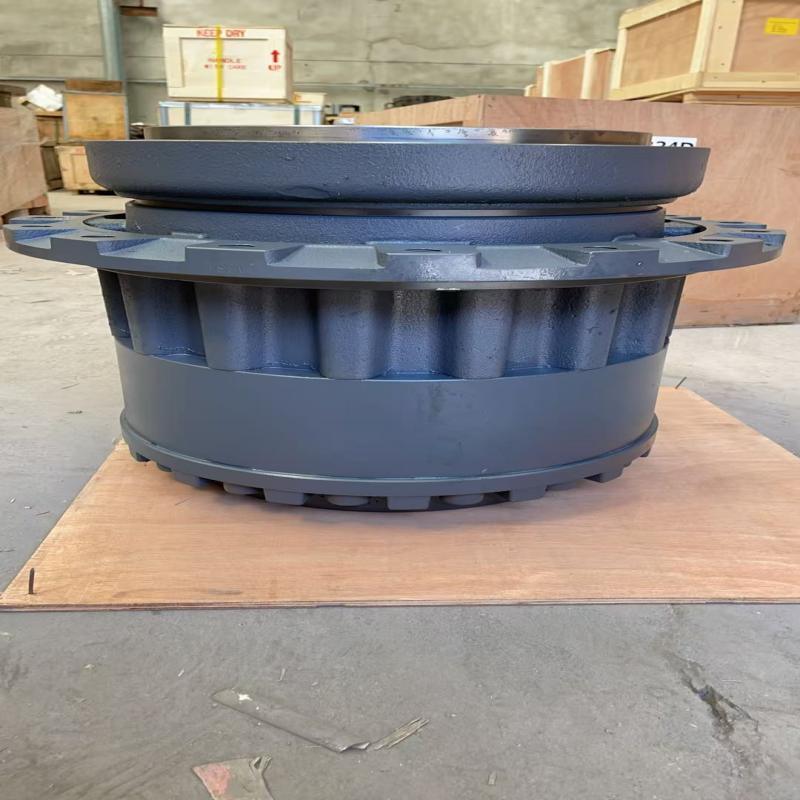

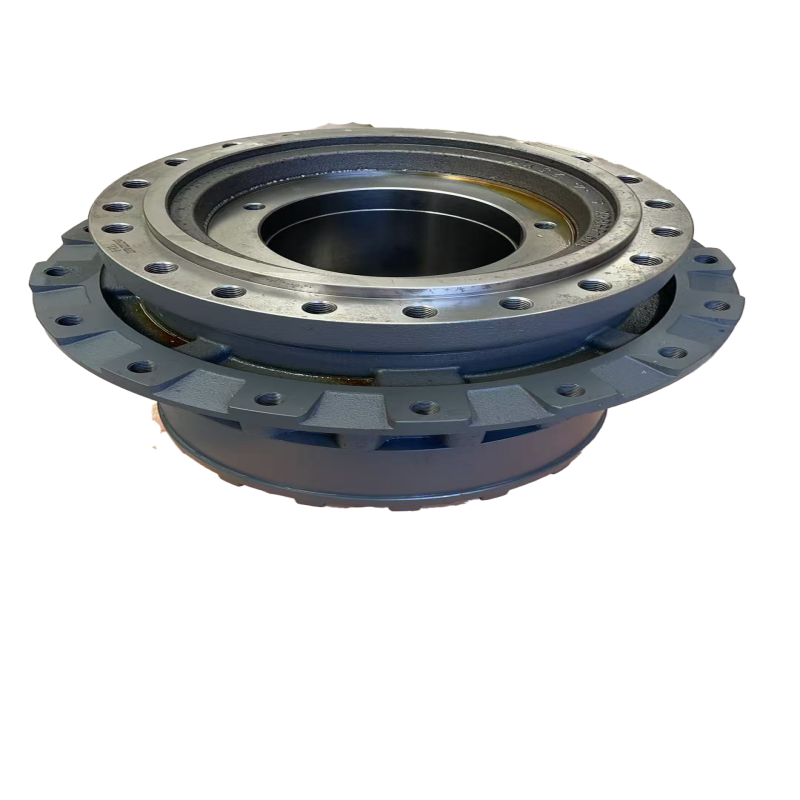

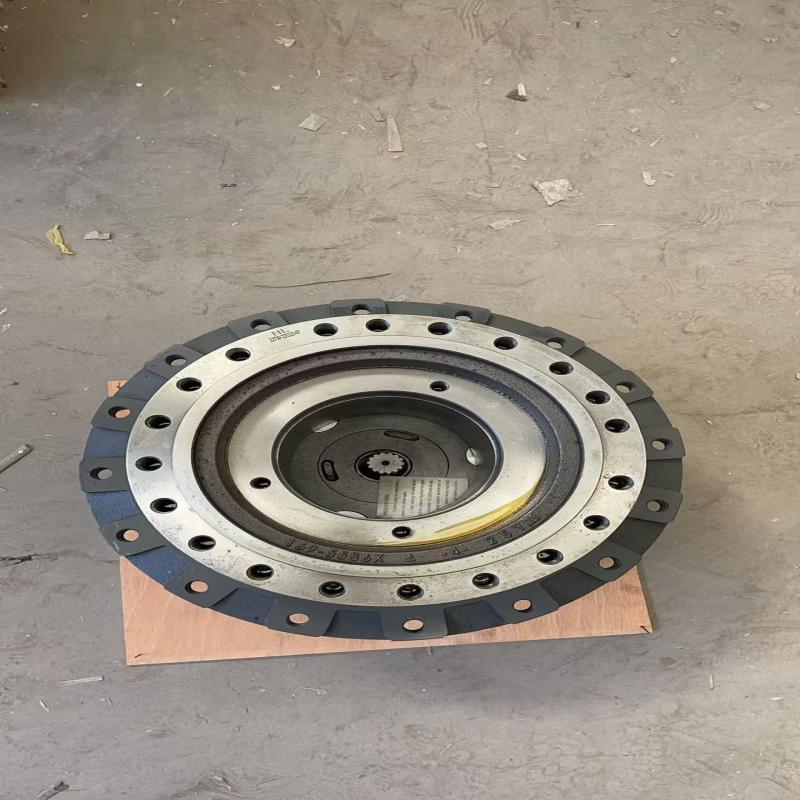

CAT E324D E326D Travel Reducer 227-6133 200-6216 Crawler Excavator Reducer

CAT E324D E326D Travel Reducer 227-6133 200-6216 Crawler Excavator Reducer

E324D Travel Reducer

E326D Travel Reducer

227-6133

Place of Origin:

China

Model Number:

E324D

Chat Now
Request A Quote
Product Details
Color:
Metallic
Type:
Excavator Final Drive
Machine Model:
E324D
Packing:
Carton
Productname:
Excavator Machinery Parts
Part Name:
Excavator Travel Gearbox
Highlight:

E324D Travel Reducer

,

E326D Travel Reducer

,

227-6133

Payment & Shipping Terms
Minimum Order Quantity
1 Pc
Packaging Details
Carton
Delivery Time
7-35days
Payment Terms
T/T
Product Description

CAT E324D E326D Travel Reduction Gearbox 227-6133 200-6216 Crawler Excavator Reducer

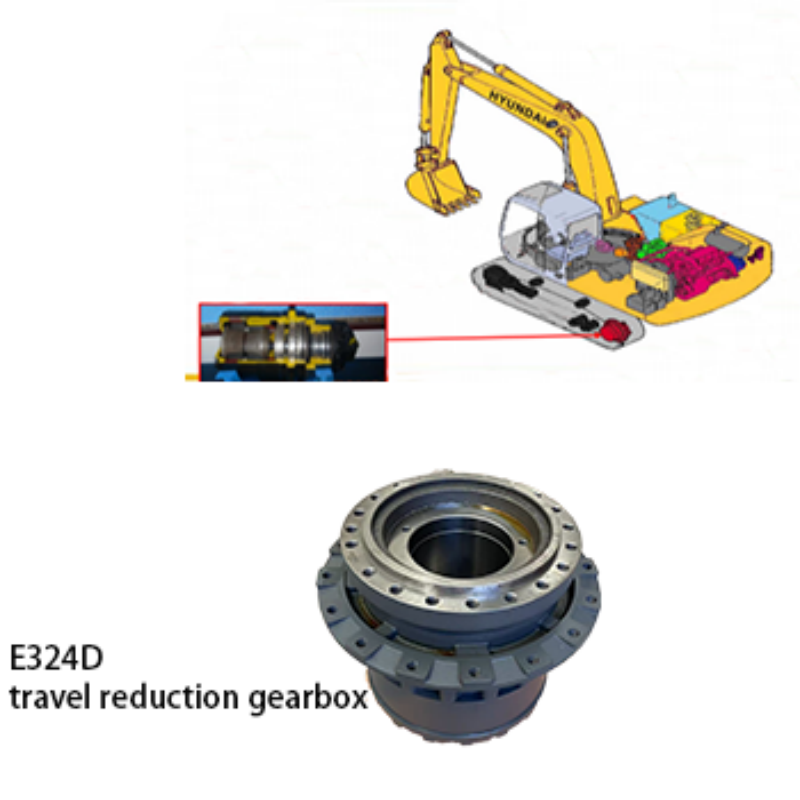

An excavator’s travel reducer, also referred to as the travel gearbox, is a vital transmission part linking the hydraulic motor to the track drive wheel. Its main role is to lower rotational speed and boost torque, delivering low‑speed, high‑torque power to the tracks.
Core Structure (Three‑Stage Planetary Gear Design)
• Sun Gear: Attached to the hydraulic motor input and acts as the power input unit.
• Planet Gears: 3–4 units that revolve around the sun gear while spinning individually to transfer power.
• Ring Gear (Internal Gear Ring): Either fixed or floating, meshing with the planet gears.
• Planet Carrier: Transmits output power to turn the reducer casing and track drive wheel.
• Casing & Bearings: Robust casing ensures dust and oil leakage resistance; heavy‑load bearings sustain rotary motion.
• Brake: Integrated multi‑disc parking brake, spring‑engaged and hydraulically released, to stop the machine from rolling on slopes.
Working Principle
High‑speed, low‑torque power from the hydraulic motor enters the travel reducer → three‑stage planetary gears perform gradual speed reduction → low‑speed, high‑torque power is output → propels the tracks for machine movement.
Typical Failures and Root Causes
  1. Unusual or loud noise: Gear abrasion, bearing failure, inadequate lubrication or degraded oil condition.
  2. Oil leakage: Worn seals, casing fractures, overfilled oil level.
  3. Poor travel performance / Track drift: Worn gears or bearings, unreleased brake, inconsistent left‑right reducer performance.
  4. Excessive heat generation: Overloading, insufficient lubrication, poor heat dissipation, brake drag.
  5. Gear jumping or seizing: Broken gear teeth, damaged planet carrier, foreign particle contamination.
Machinery Test Report Provided Warranty 3 Months
Machinery Test Report Provided Brand Name OEM
Place of Origin China Part Name Travel Reduction Assembly
Model DX300 Keyword Excavator Machinery Part
MOQ 1 Piece Quality Tested Great Performance
Application Excavator Delivery Time 7-35 Days
Service Professsional Service Condition Brand New
