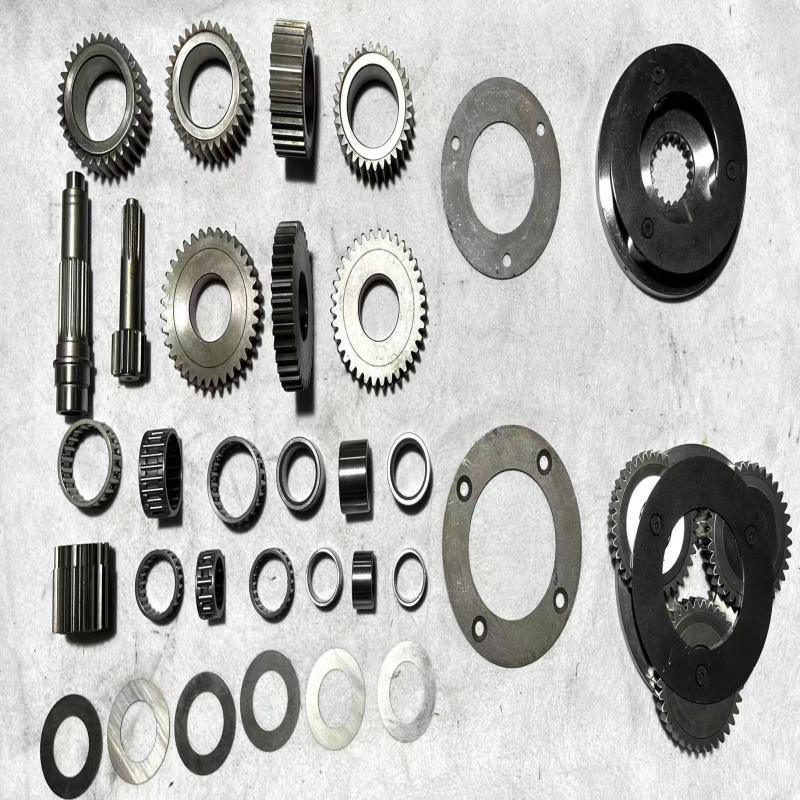

Name: E307 Gearbox Parts Planetary Planetary Gear Box Bracket Black / Metallic Color
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: E307
Availability: InStock

Home > Products > Excavator Machinery Parts >

E307 Gearbox Parts Planetary Planetary Gear Box Bracket Black / Metallic Color

E307 Gearbox Parts Planetary

Planetary Gear Box Bracket

E307 Gear Box Bracket

Place of Origin:

China

Model Number:

E307

Chat Now

Request A Quote

Product Details

Part Name:

Gearbox Parts

Packing:

Standard Box

Catagory:

Excavator Spare Parts

Condition:

100% New

Color:

Black Or Metallic

Model:

E307

Highlight:

E307 Gearbox Parts Planetary

Planetary Gear Box Bracket

E307 Gear Box Bracket

Payment & Shipping Terms

Minimum Order Quantity

1 Pc

Packaging Details

Carton

Delivery Time

7-35days

Payment Terms

T/T

Doosan DX500 Reduction Cover Rotary Motor Housing for Device Gearbox Excavator Machinery Parts

Chat Now

E120B Travel Reduction Motor Assembly Hitachi Final Drive Motor Excavator Machinery Parts

Chat Now

Hitachi Excavator Main Control Valve Distribution Valve Drain Pin Cover for ZAX70 ZAX200 Safety Valve Aluminum Iron Cover

Chat Now

Excavator Final Drive Swing Gearbox E374 Swing ReductionKomatsu Hitachi Excavator Machinery Parts

Chat Now

+8615294125097

guangqi334@gmail.com

Chat Now

Product Description

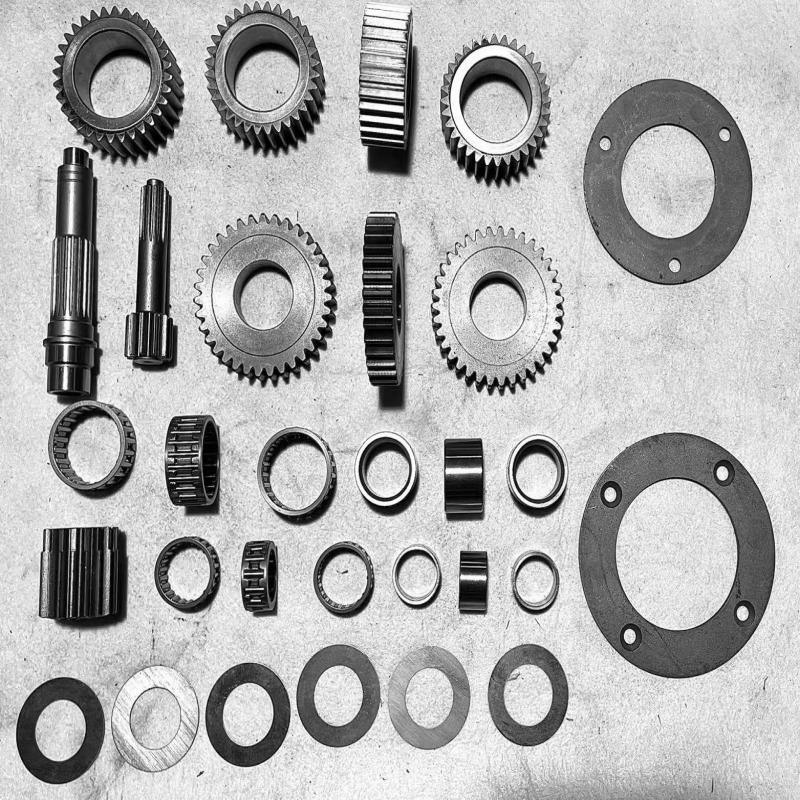

E307 Excavator Gear Box Bracket Travel Reduction Gear Planetary Gear Parts Excavator Machinery Parts

As a core transmission component for excavators, the swing reducer (popularly swing gearbox in construction machinery) connects the slewing motor to the large slewing gear ring. Its primary functions are deceleration and torque enhancement, delivering stable 360° rotation of the upper machine assembly.

Critical Structural Layout

Sun Gear: Attached to slewing motor splines to input high‑speed rotational power.
Planet Gears: Each stage has 3‑4 gears that orbit and spin on the sun gear for torque transfer.
Ring Gear: Rigidly installed on the housing and meshes with planetary gear units.

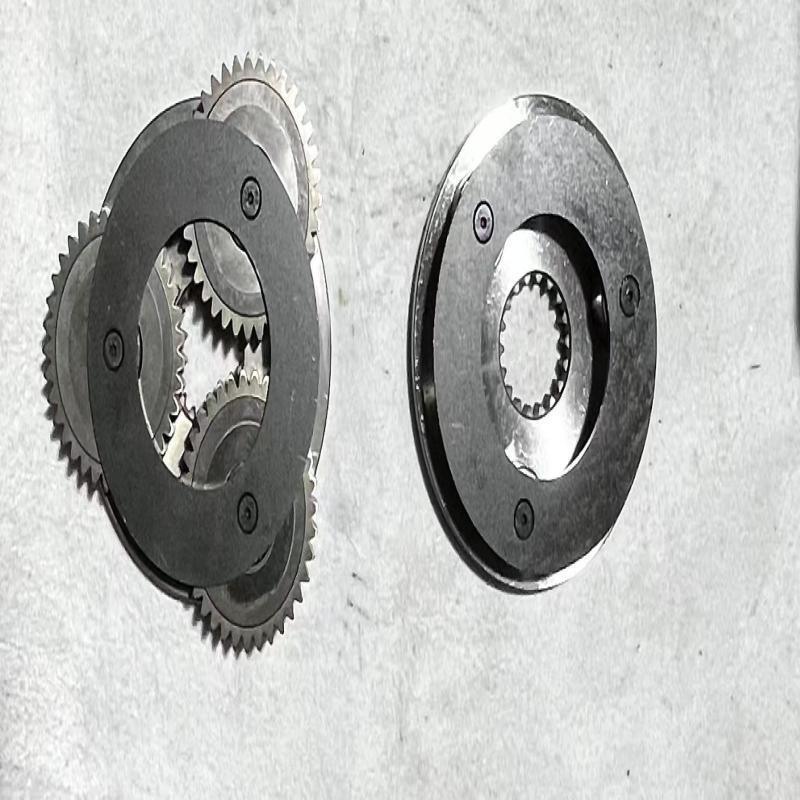

Planet Carrier: Transmits output power to drive the lower small drive gear wheel.
Brake: Internal wet multi‑plate brake mechanism; springs engage it and hydraulic pressure releases it to stop reverse slewing.
Housing and Bearings: High‑strength steel housing (cast or forged) fitted with heavy‑load bearings for dust and leakage protection.

Hydraulic motor‑generated high‑speed low‑torque power passes through the sun gear and two‑stage planetary groups to the planet carrier. The low‑speed high‑torque pinion meshes with the slewing bearing inner gear ring, enabling upper‑body slewing motion.

Frequent Operational Defects and Root Causes

Odd noise and jittery operation: Gear abrasion, pitting defects, bearing malfunctions, contaminated lubricating oil, inappropriate meshing clearance.
Oil leakage and seepage problems: Damaged oil seals, housing fractures, overfilled lubricant level, clogged ventilation holes.
Lazy or underpowered rotation: Worn gear/bearing parts, partial brake release, internal hydraulic motor leakage, mismatched gear ratio.
Overheating problems: Low oil quantity, deteriorated lubricant, overload conditions, continuous brake friction, weak heat dissipation.
Gear skipping and tooth fracture: Impact loads, foreign substance intrusion, fatigue degradation, assembly‑caused shaft offset.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Part Name	Travel Gearbox Parts
Model	DH80 E307	Feature	Durable
MOQ	1 Piece	Quality	Tested Great Performance
Condition	Brand New	Application	Excavator
Delivery Time	7-35 Days	Service	Professsional Service
