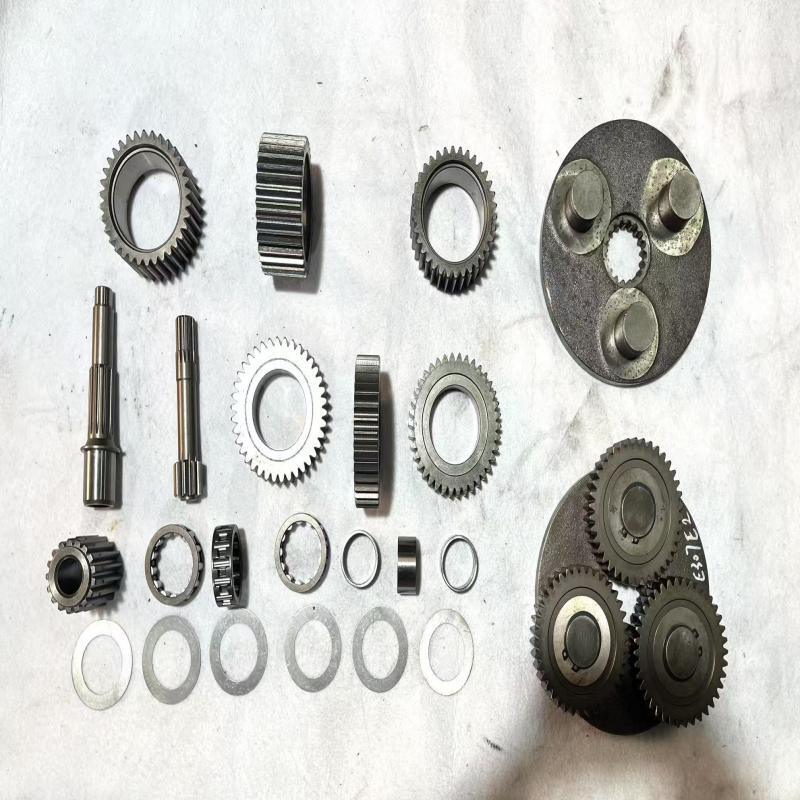

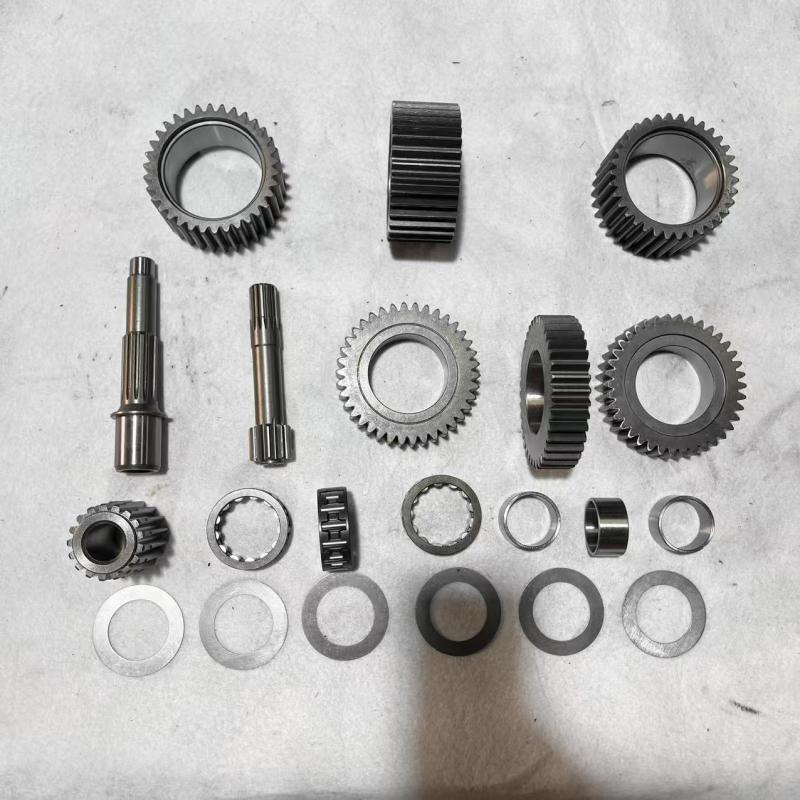

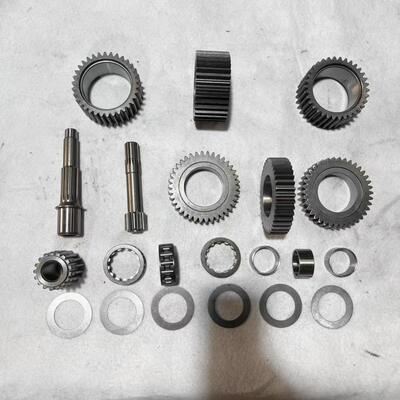

E307E2 Gearbox Replacement Parts OEM Planetary Gear Sun Motor Shaft Bracket

Name: E307E2 Gearbox Replacement Parts OEM Planetary Gear Sun Motor Shaft Bracket
Brand: Lanzhou Fudong Guangqi Trading Co., Ltd
SKU: E307E2
Price: Negotiable USD
Availability: InStock

Model Number:	E307E2
MOQ:	1 Pc
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Gearbox Replacement Parts

Warranty:

3 Months

Color:

Black Or Metallic

Catagory:

Construction Machinery Parts

Packing:

Carton

Leadtime:

7-35 Days

Packaging Details:

Carton

Highlight:

E307E2 Gearbox Replacement Parts

OEM Planetary Gear

Sun Motor Shaft Bracket

Product Description

E307E2 Excavator Machinery Parts Travel Gearbox Parts Planetary Gear Sun Motor Shaft Bracket

The swing reducer, referred to as the swing gearbox in construction machinery, is a key transmission part for excavators that bridges the slewing motor and large slewing gear ring. It realizes speed reduction and torque growth to support smooth full‑circle rotation of the upper superstructure.

Main Structural Parts

Sun Gear: Mated with slewing motor splines to receive high‑speed power supply.
Planet Gears: 3–4 gears in each stage orbit the sun gear while self‑rotating for torque transmission.
Ring Gear: Fixed firmly to the housing and meshes with planet gear assemblies.
Planet Carrier: Outputs driving force to operate the lower small drive pinion.
Brake: Integrated wet‑type multi‑disc brake with spring‑lock and hydraulic‑release design against reverse rotation.
Housing and Bearings: Heavy‑duty cast or forged steel casing supported by high‑capacity bearings, dust‑resistant and leak‑proof.

High‑speed low‑torque power from the hydraulic motor is conveyed through the sun gear, first and second planetary stages to the output carrier. The pinion gear runs slowly with high torque, engaging with the slewing bearing inner ring to drive upper‑structure rotation.

Regular Faults and Root Factor Analysis

Irregular noise and unstable running: Gear surface wear and pitting, bearing breakdown, insufficient dirty lubricant, improper gear meshing gap.
Oil seepage and leakage failures: Worn sealing components, housing structural cracks, overfilled oil volume, blocked breather outlets.
Torpid or power‑deficient slewing: Degraded gears/bearings, incomplete brake release, hydraulic motor bypass flow, non‑matching reduction ratio.
Excessive temperature rise: Shortage of lubricant, poor oil quality, overloaded operation, brake drag resistance, insufficient heat emission.
Gear jumping and tooth damage: Impact pressure loads, impurity infiltration, fatigue wear, shaft misalignment during installation.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Part Name	Travel Gearbox Assembly
Model	E307E2	MOQ	1 Piece
Quality	Tested Great Performance	Application	Excavator
Delivery Time	7-35 Days	Service	Professsional Service
Condition	Brand New	Color	Sliver
