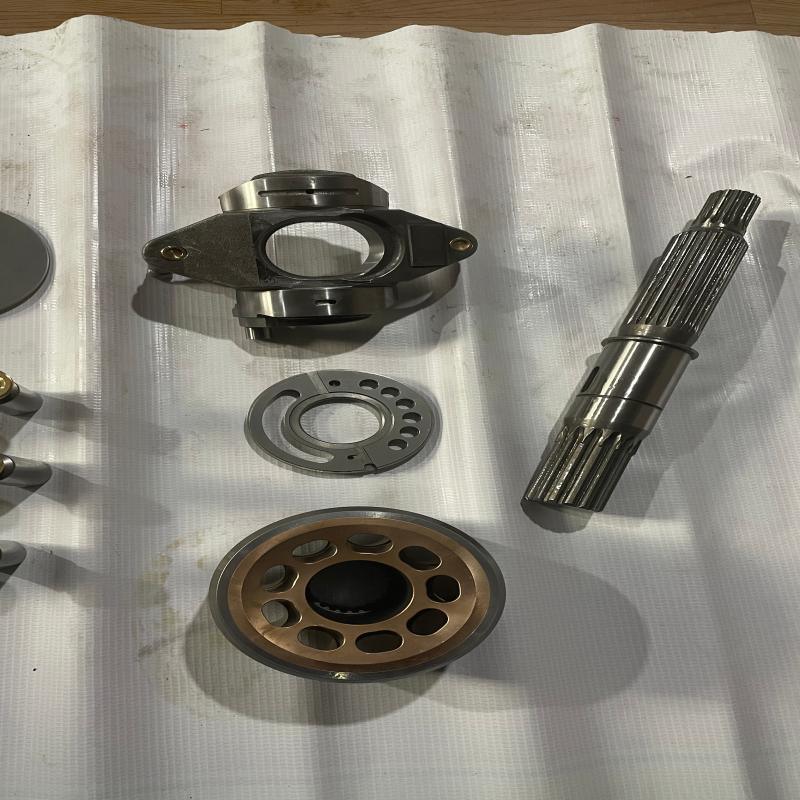

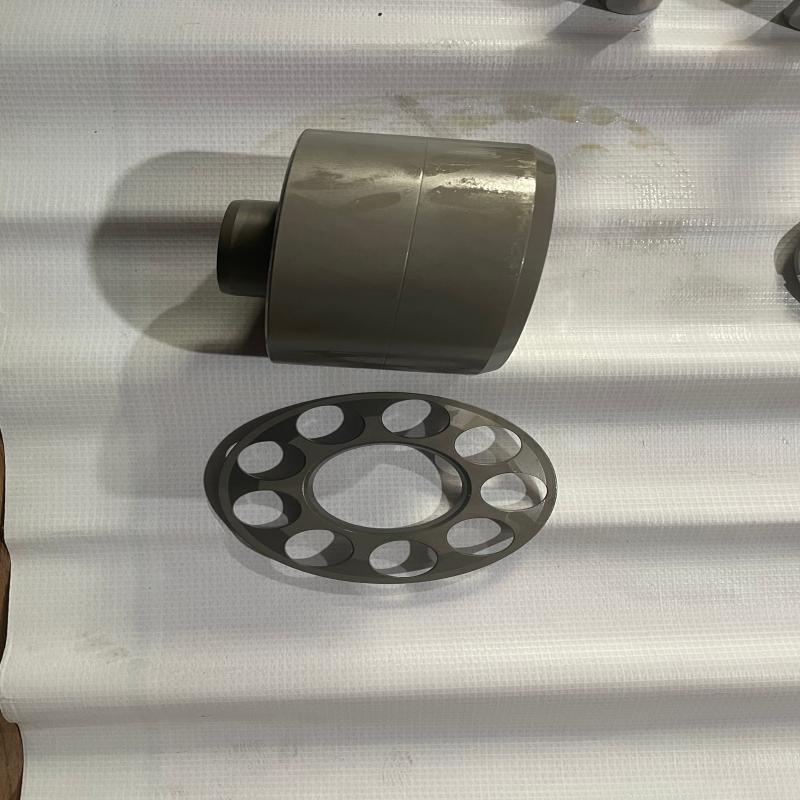

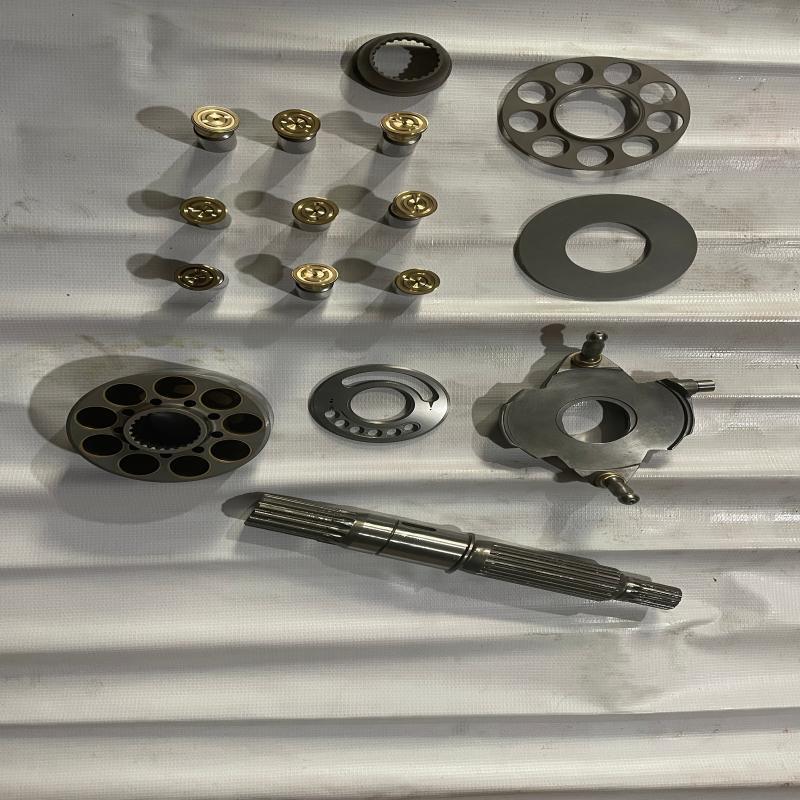

DPA117 Hydraulic Piston Pump Spare Parts DPA117 Main Pump Repair Parts DX215-9C DX225-9C Excavator Parts

Functioning as the primary power core of excavator hydraulic circuits, the main hydraulic pump receives engine driving torque to convert mechanical energy into high-pressure hydraulic energy. It transports pressurized hydraulic fluid to hydraulic motors to drive all working movements of the excavator. Most engineering construction excavators are fitted with axial variable displacement piston pumps. Mid and large-sized excavator units utilize an integrated dual main pump and rear pilot gear pump unit. Two independent high-pressure oil supply circuits deliver oil to the main control valve, supporting compound working motions, with rated working pressure spanning 28MPa to 35MPa. The tail-mounted low-pressure pilot pump works at 3–4MPa with low flow output, providing pilot pressure oil for control handle and main valve spool actuation. Piston assemblies attached to the cylinder block and pump housing rotate alongside the main shaft, completing oil suction and pressurization cycles. Varying the swash plate tilt angle modulates piston stroke, which adjusts the pump’s displacement value. An external servo regulator controls swash plate motion according to hydraulic feedback signals. A larger swash plate angle improves flow rate and working speed, while a smaller angle reduces fuel usage and avoids engine flameout. The valve plate isolates low-pressure intake and high-pressure outlet passages to achieve directional hydraulic oil distribution. Three core control functions are equipped to ensure the pump’s dependable operation. Constant power control automatically lowers pump displacement under increased load conditions, protecting the engine and raising power utilization efficiency. The LS load-sensing system supplies flow matching actual working requirements and maintains low idle displacement for fuel saving. The HP pressure limiting function minimizes pump displacement at peak pressure to protect hydraulic pipelines and oil cylinders from rupture damage. Common malfunctions include internal leakage stemming from piston wear, valve plate damage or regulator blockage, leading to slow operation speed and inadequate power output. A locked maximum-displacement regulator triggers engine overload, black smoke exhaust and stalling during heavy-duty operation. Excessive internal leakage turns pressure loss into thermal energy, causing abnormal hydraulic oil temperature rise. System air entry, insufficient hydraulic oil and faulty bearings or pistons generate abnormal operating noise. Daily maintenance work requires periodic replacement of hydraulic oil and filter elements to prevent abrasion of precision internal parts. It is essential to maintain good tightness of oil suction pipes to avoid air ingestion and machine vibration, and keep hydraulic fluid at standard levels to preserve stable pump performance.

Machinery Test Report	Provided	Warranty	3 Months
Video outgoing-inspection	Provided	Brand Name	OEM
Place of Origin	China	Product Name	Hydraulic Pump
Model	DPA117	MOQ	1 Piece
Quality	High-Quality	Delivery time	7-15 Days
Standard or Nonstandard	Standard	Application	Excavator Machinery
Size	Standard Size	Packing	Wooden Box
